| Stock-No. |
1020-20834 |
| Category |

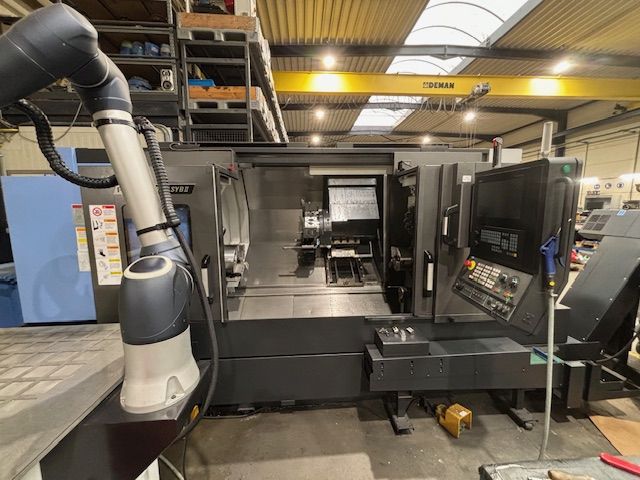

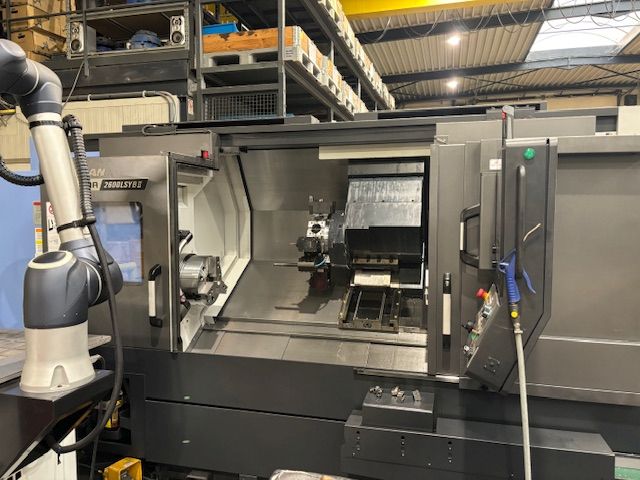

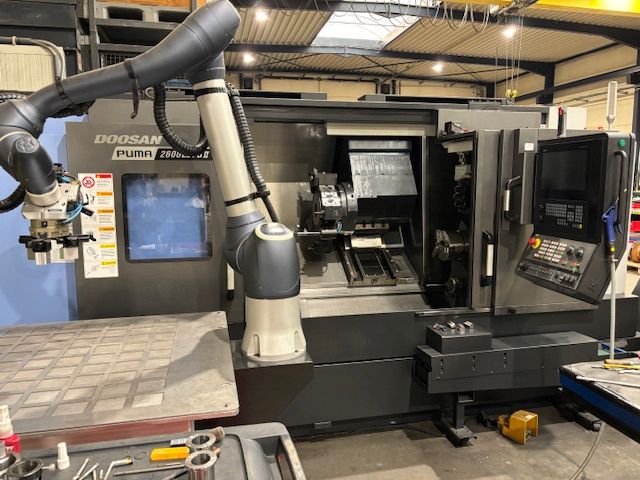

CNC Turning- and Milling Center |
| Make |
DOOSAN |
| Type |
PUMA 2600 LSYB II |
| New in |
2022 |
| Control |
Siemens 828D |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Korean |
| Delivery time |
short-dated |
| Freight basis |
ex foundation "is as is, where is" |
| Price |
| turning diameter |
376 mm |
| turning length |
1245 mm |
| control |
Siemens 828D |
| greates pass round over bed |
780 mm |
| swing diameter over slide rest |
630 mm |
| max. turning diameter |
376 mm |
| spindle turning speed range |
2800 U/min |
| spindle drive motor |
22/18,5 kW |
| spindle nose |
ASA A2-11 |
| spindle bearing diameter |
160 mm |
| spindle bore |
115 mm |
| bar material dia. |
102 mm |
| c-axis |
0,001 ° |
| chucking diameter |
255 mm |
| Number of tools |
24 St. |
| travel -x axis |
260 mm |
| travel -z axis |
1350 mm |
| travel -y axis |
105 (+/- 52,5) mm |
| 2nd Spindle: |
|
| spindle turning speed range |
4500 U/min |
| spindle motor |
7,5/5,5 kW |
| spindle passage |
62 mm |
| spindle nose |
ASA A2-5 |
| total power requirement |
59,5 kVA |
| weight of the machine ca. |
7,9 t |
| dimensions of the machine ca. |
4,4 x 2,1 x 2,2 m |
| Description |
Equipped with:

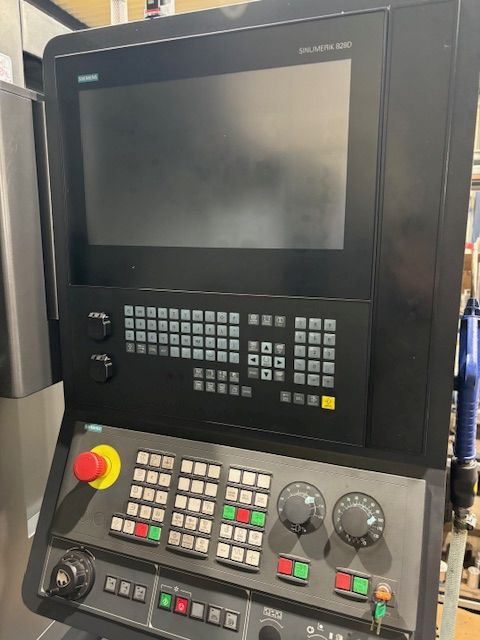

- Siemens 828D control system
- Chip conveyor
- Counter spindle
- Workpiece holding arm
- High-pressure coolant pump

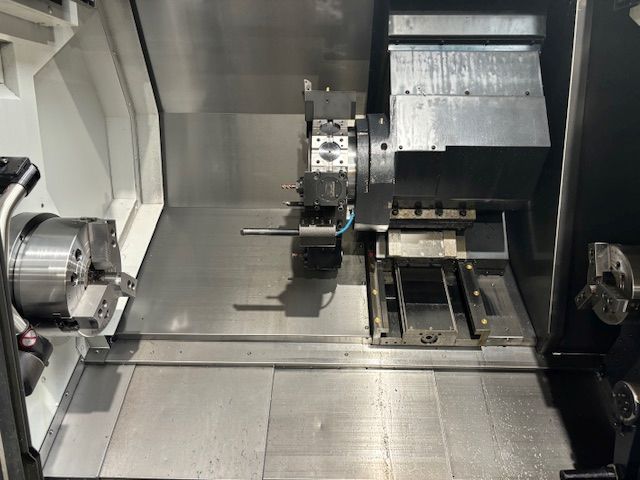

- 12-position turret, 7.5 kW, 5000 rpm
- Arm for measuring tools
Machine has only 2500h running hours
|
|
|
|
