| Stock-No. |
1020-20827 |
| Category |
CNC Turning- and Milling Center |
| Make |
OKUMA |
| Type |
Multus B250-II C 750 |
| New in |
2022 |
| Control |
OSP-300PA |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Japan |
| Delivery time |
short-dated |
| Freight basis |
ex factory free on truck/container |
| Price |
| turning diameter |
600 mm |
| turning length |
750 mm |
| control |
OSP-300PA |
| turning spindle |
38 - 5000 U/min |
| spindle motor |
22/15 kW |
| milling spindle |
12000 U/min |
| spindle motor |
12/8 kW |
| spindle bore |
62 mm |
| chucking diameter |
mm |
| travel -x axis |
500 mm |
| travel -z axis |
800 mm |
| travel -y axis |
-100 / +100 mm |
| rapid traverse |
40 / 26 / 40 m/min |
| tool piece magazine with |
40 |
| Tool bore |
HSK A63 |
| tailstock taper MT |
5 |
| total power requirement |
- kVA |
| weight of the machine ca. |
7,9 t |
| dimensions of the machine ca. |
3,6 x 2,3 x 2,6 mm |
| Description |

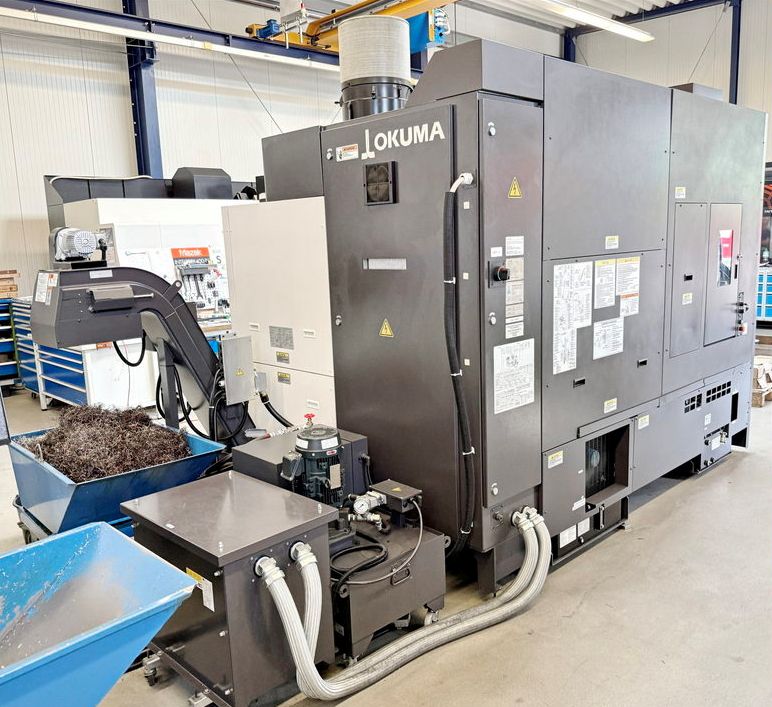

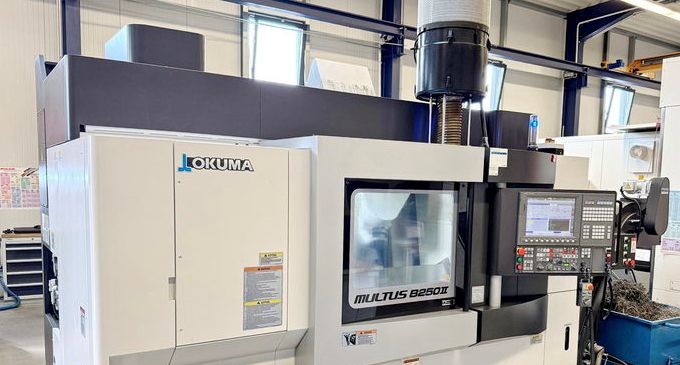

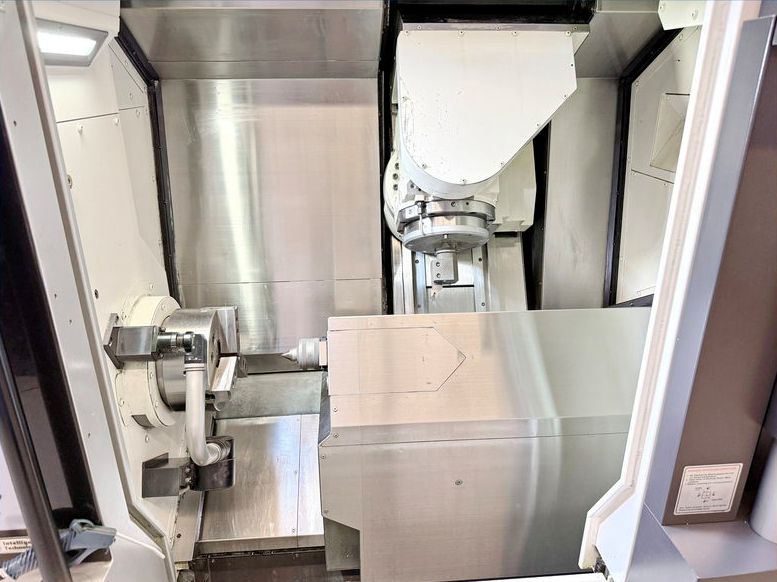

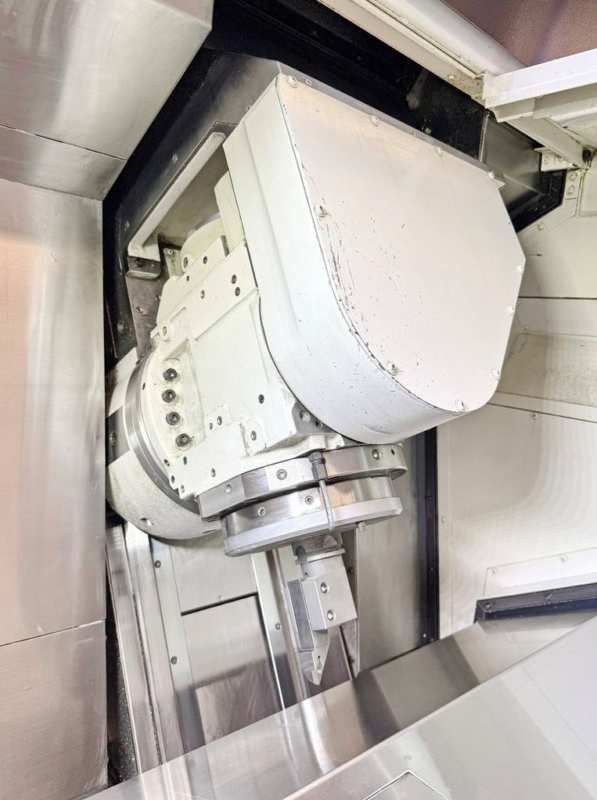

CNC turning and milling centre equipped with:
- OSP-300 SA CNC control with OSP Suite
- 40-position tool changer (HSK A63)
- Chip conveyor
- Coolant through the tools/spindle
- Helix interpolation in B axes
- Y axis
- Tailstock
- Screw interpolation, thread milling, eccentric milling, thread cutting in
arc
- Approx. 40 tool holders
3150h working hours, approx. 450h spindle hours
|
|
|
|
