| Stock-No. |
1020-20826 |
| Category |
CNC Turning- and Milling Center |
| Make |
OKUMA |
| Type |
LB 3000 EX2 MYW 800 |
| New in |
2020 |
| Control |
OSP P300LA |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Japan |
| Delivery time |
short-dated |
| Freight basis |
ex factory |
| Price |
| turning diameter |
340 mm |
| turning length |
1020 mm |
| control |
OSP P300LA |
| turning diameter over bed |
580 mm |
| turning dia. over face-slide |
470 mm |
| Workingspindle: |
|
| power capacity - main spindel |
22/15 kW |
| turning speed range - main spindle |
4200 U/min |
| spindle bore |
91 mm |
| max. bar capacity |
72 mm |
| spindle head |
JIS A2-6 |
| spindle cone |
82 x 2° |
| Torque |
350 Nm |
| travel -z axis |
1010 mm |
| feed per revolution |
0,001 - 1.000 mm |
| rapid traverse |
30 m/min |
| travel -x axis |
260 mm |
| feed per revolution |
0,001 - 1.000 mm |
| rapid traverse |
25 m/min |
| C-Axis |
0,001 ° |
| Rapids C - Axes |
200 min -1 |
| rapid traverse |
12 m/min |
| y-axis |
+70 / -50 mm |
| 2nd Spindle: |
|
| Subspindle - speed |
6000 U/min |
| Subspindle Power |
kW |
| total power requirement |
42,2 kVA |
| weight of the machine ca. |
4,6 t |
| dimensions of the machine ca. |
2,2 x 1,8 x 1,8 m |
| Description |

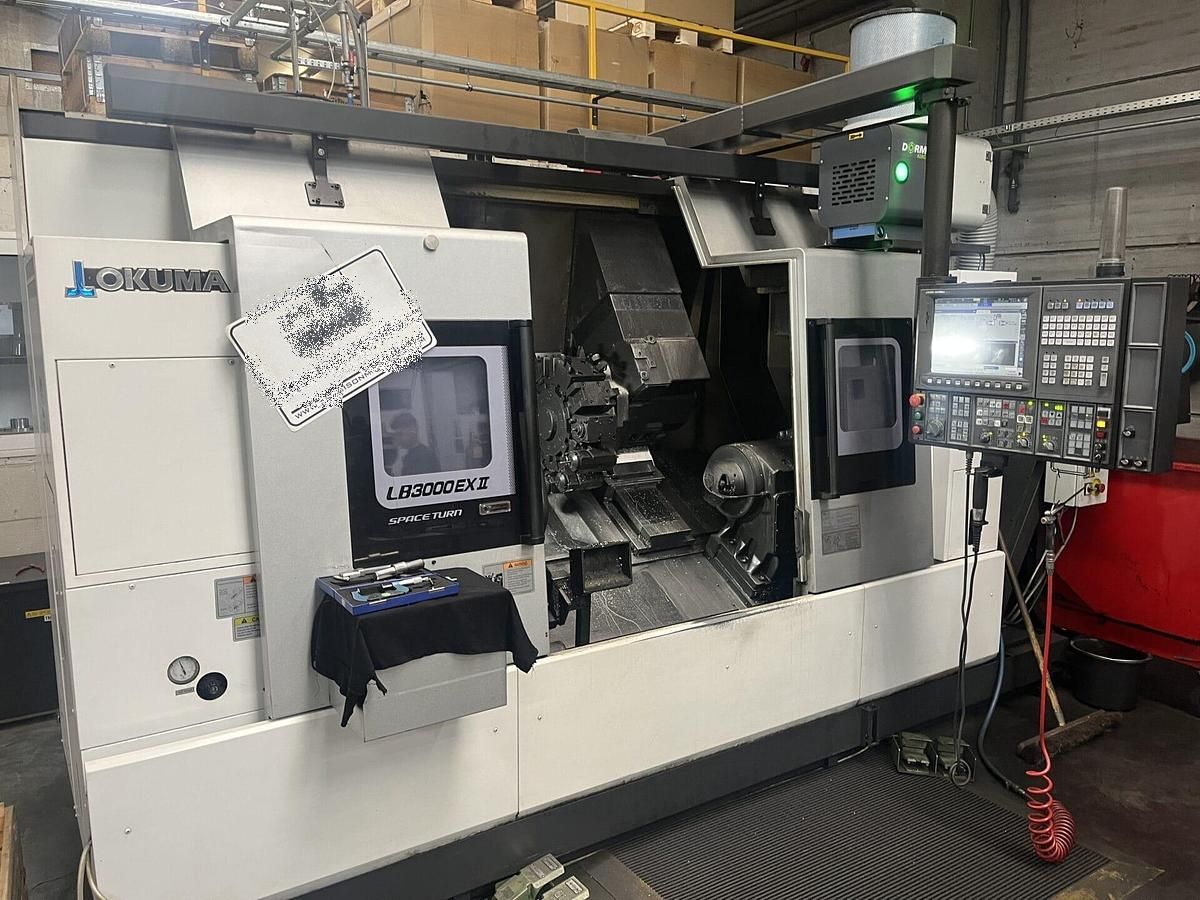

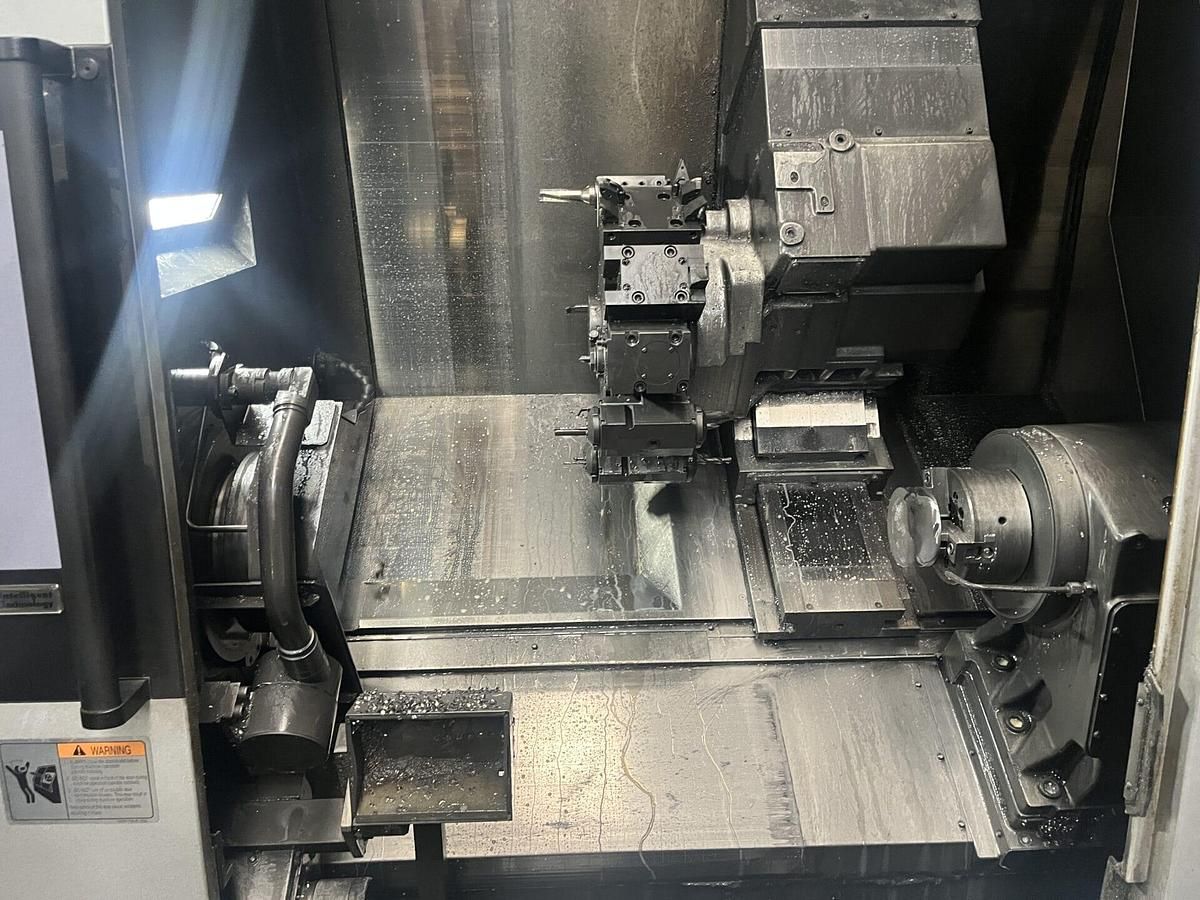

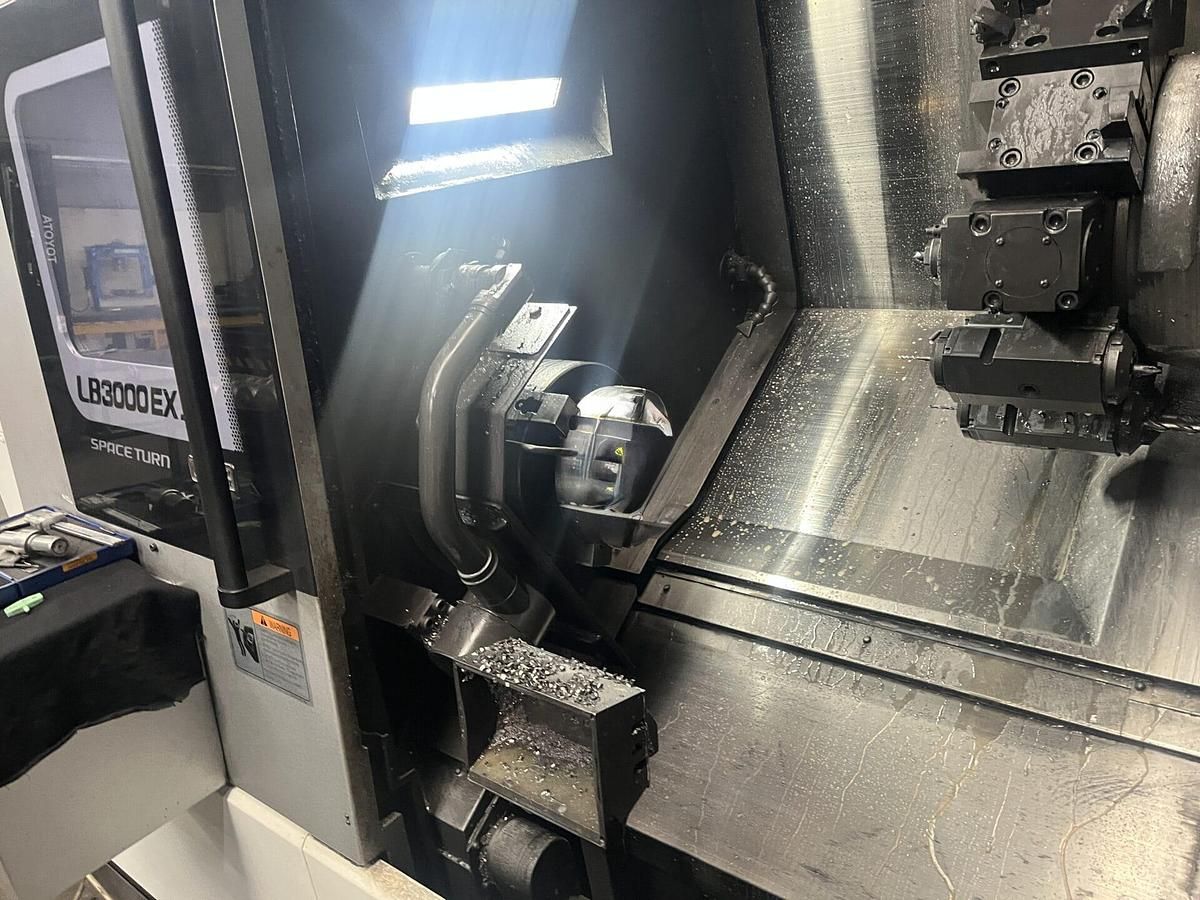

CNC turning and milling centre
equipped with:

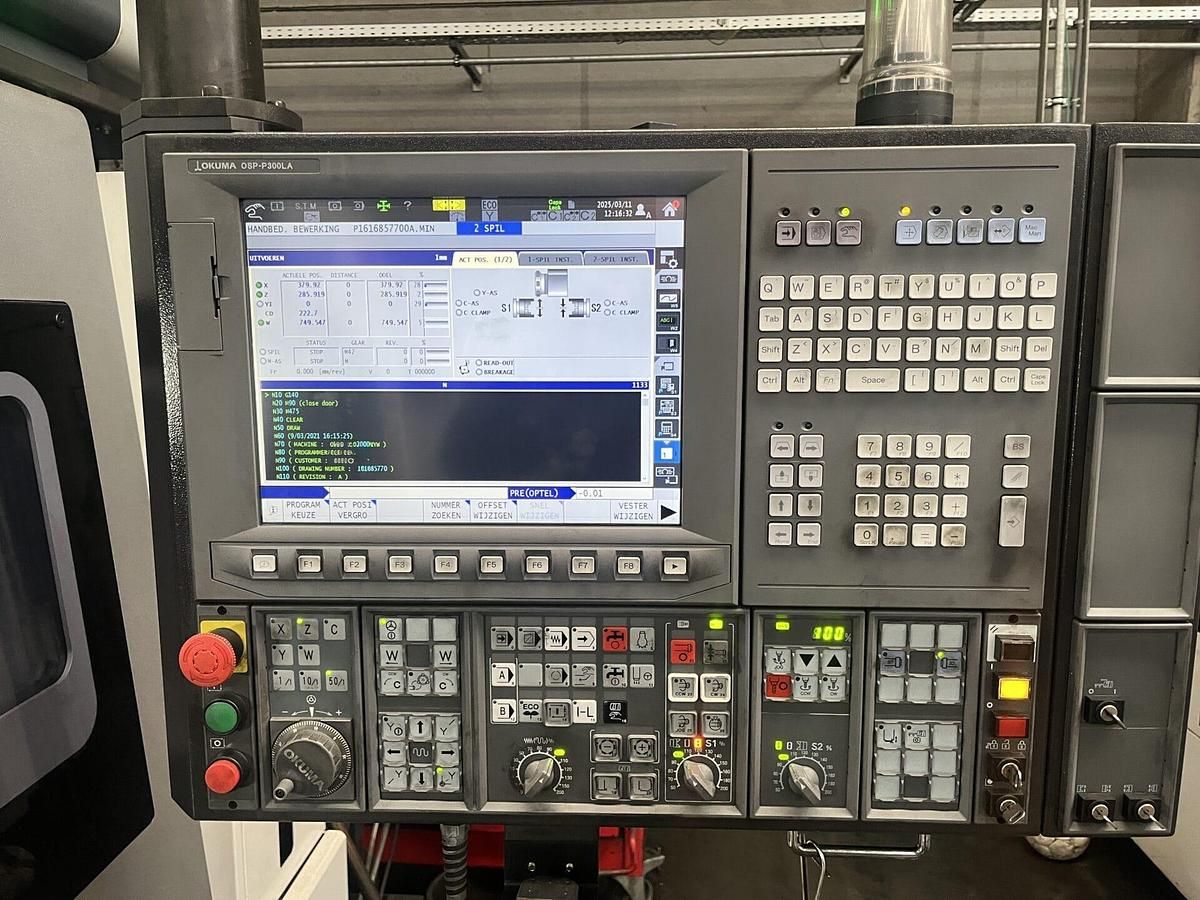

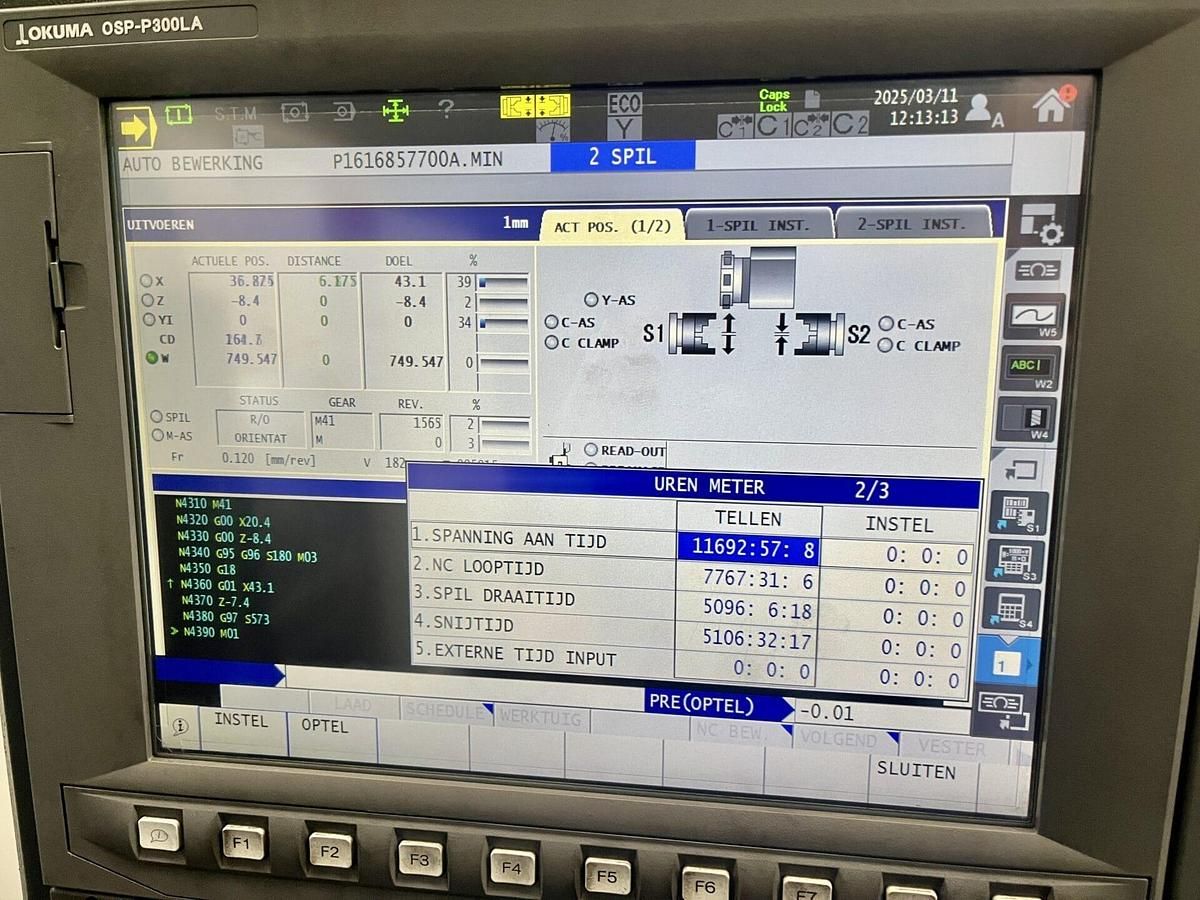

- CNC control OSP P300L

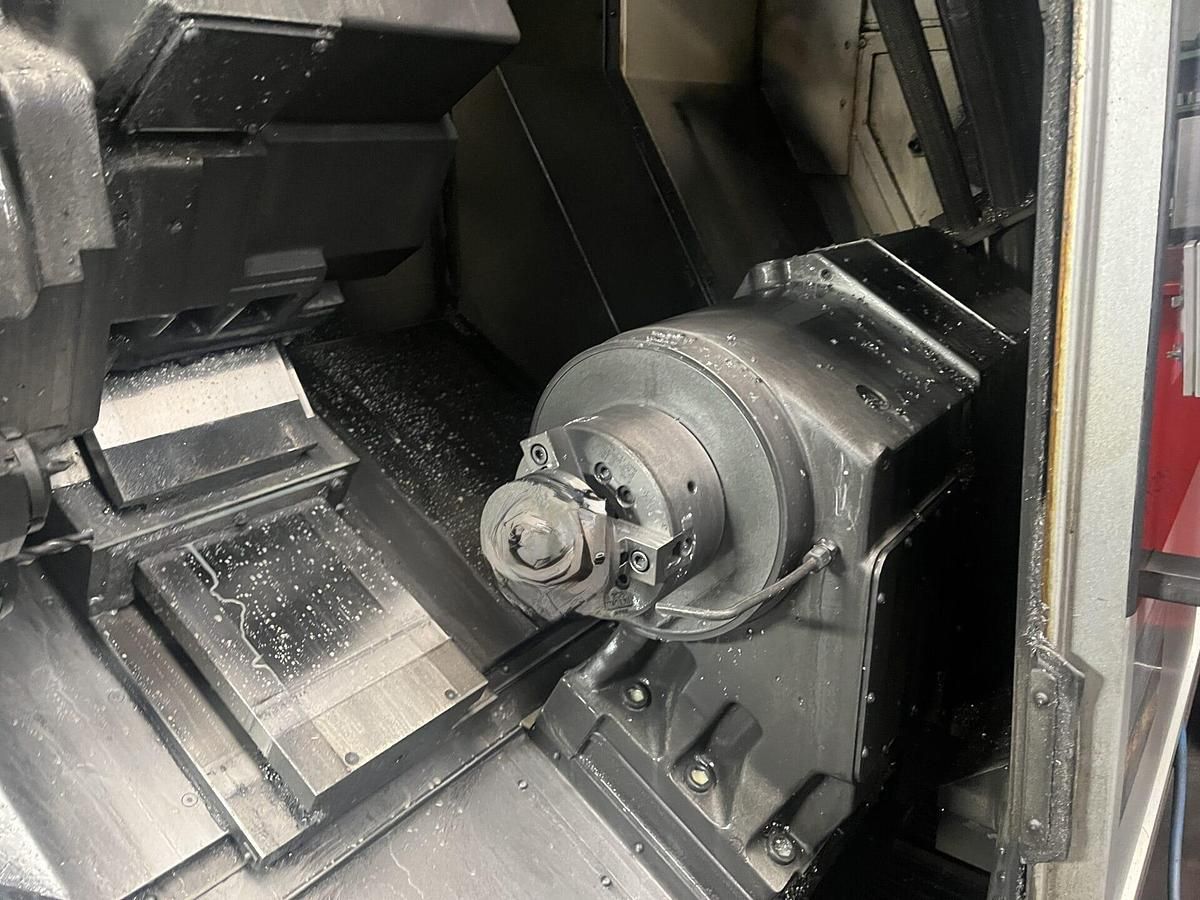

- Counter Spindle

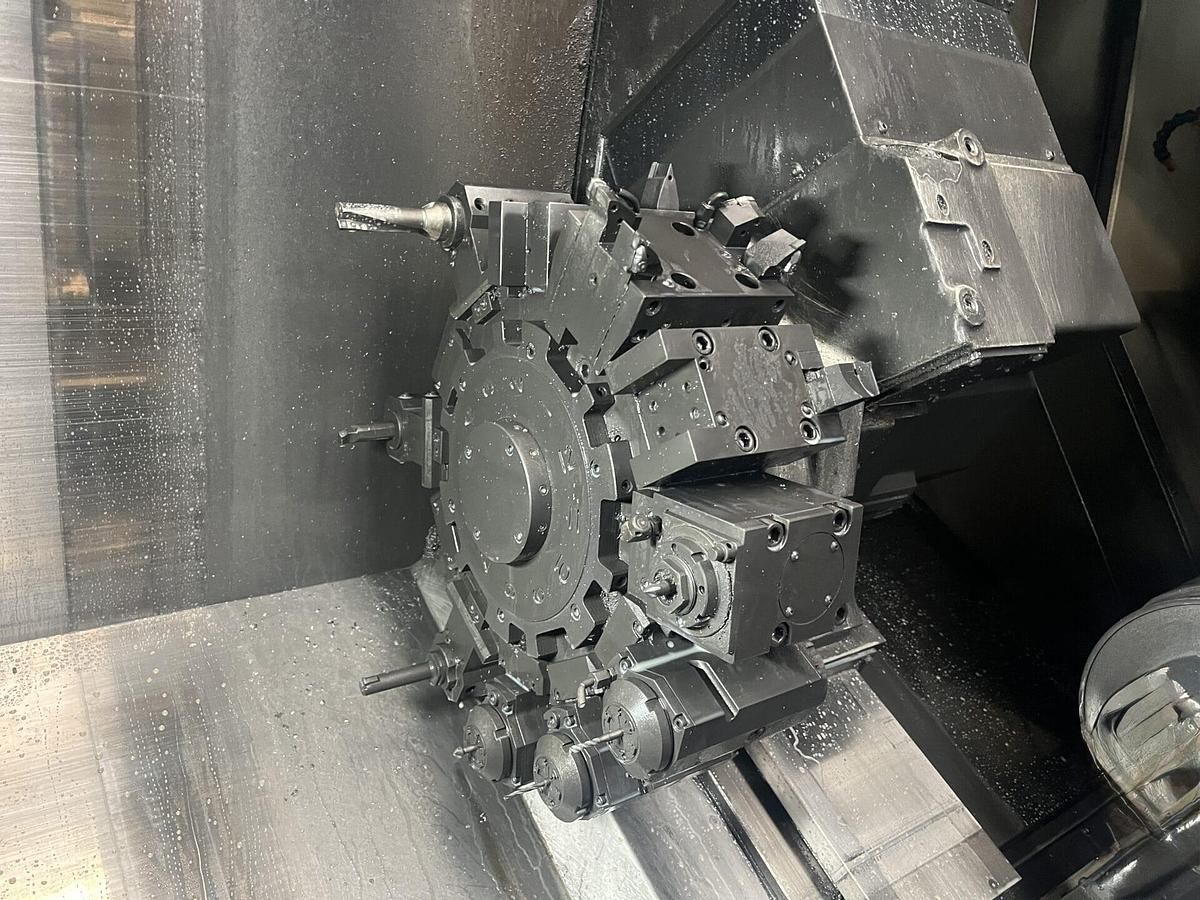

- 12-position turret with driven tool station (BMT 60) 6000 rpm
- C, Y-axis

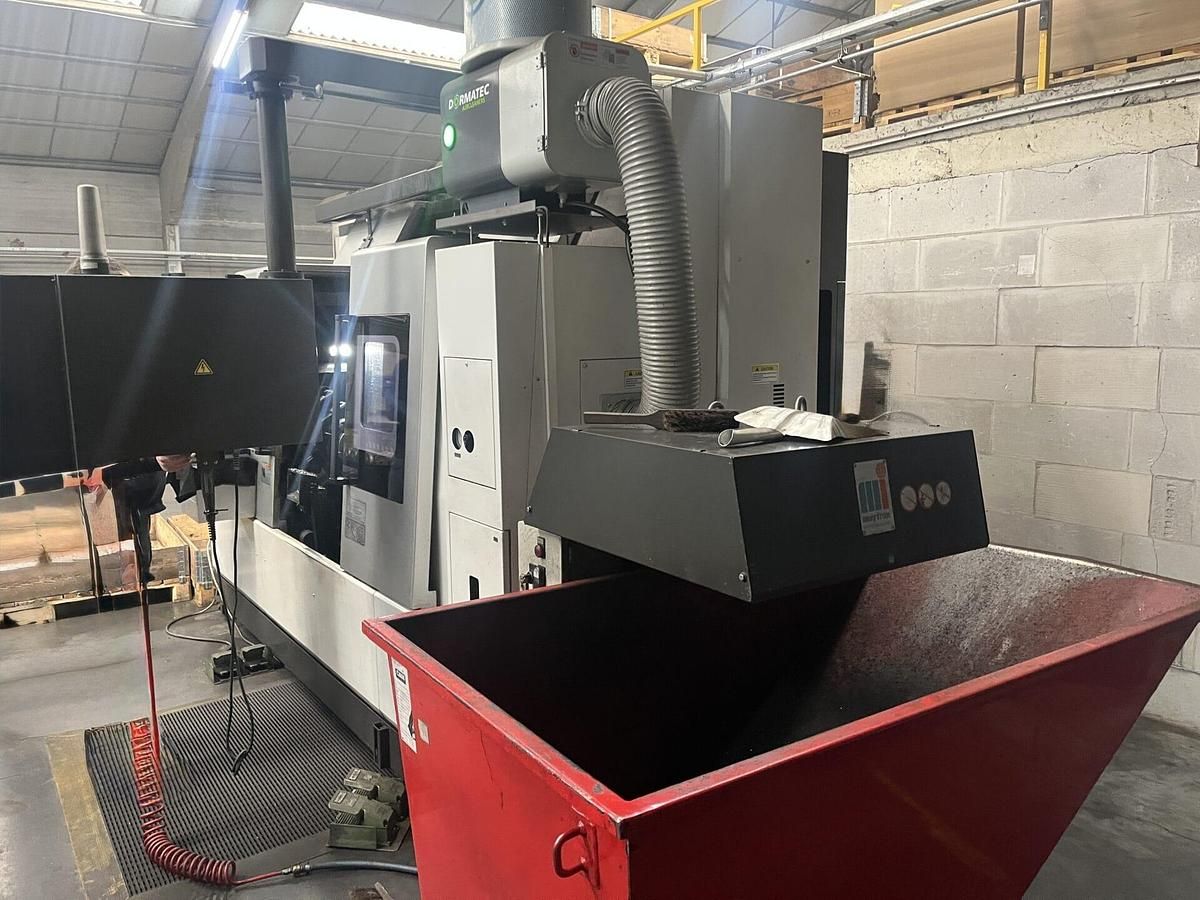

- Chip conveyor
- 3-jaw chuck 8
- automatic doors (original from the factory)
- parts catcher
- Option extended tool data management
- Smoke extraction
|
|
|
|
