| Stock-No. |
1020-20820 |
| Category |

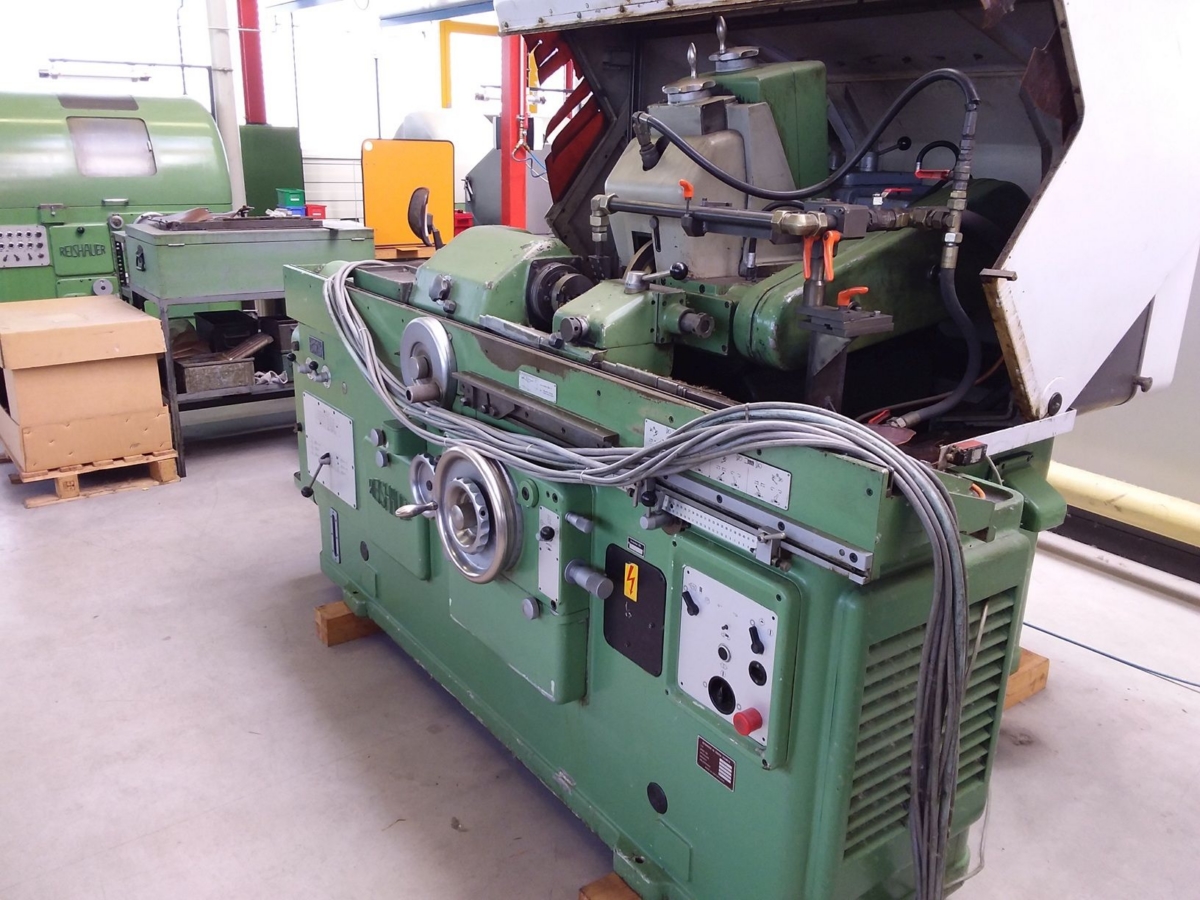

Thread-Worm-Grinding-Machine |
| Make |
REISHAUER |
| Type |
US 500 |
| New in |
1972 |
| Control |
|
| Location |
ab Werksstandort unter Strom |
| Origin |
Switzerland |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| workpiece diameter |
2 - 250 mm |
| threading length |
450 mm |
| thread pitch |
0,3-100 mm |
| clamping length max. |
870 mm |
| indexing |
8 Modul |
| workpiece turning speeds |
0,3-100 U/min |
| grinding wheel diameter |
350 x 8 x 30 mm |
| grinding wheel turining speeds |
1700-2540 U/min |
| spindle bore diameter |
45 mm |
| relief grinding stroke stepless |
0,03-8 mm |
| pitch angle |
40 ° |
| workpiece weight |
50 kg |
| workpiece spindle - bore |
45 mm |
| total power requirement |
10 kW |
| weight of the machine ca. |
5,0 t |
| dimensions of the machine ca. |
3,2 x 3,0 x 2,0 m |
| Description |
- Automatic dressing device and compensation
- Oil mist hood

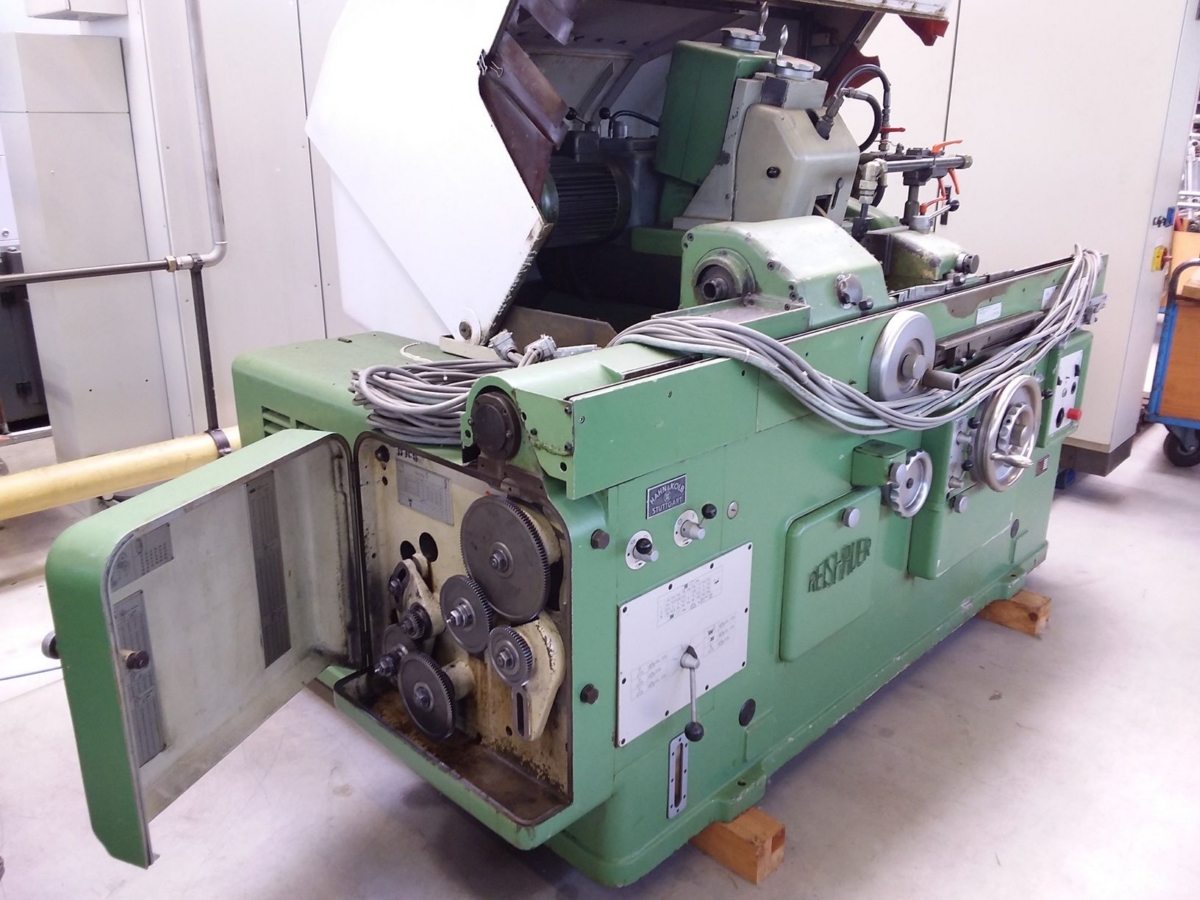

- Change gears
- Internal thread grinding device, external thread grinding spindle,
- Coolant device
- Dressing head for crushing
- Dressing head for radii
- Device for grinding master rolls
- New electrical system with expandable PLC
|
|
|
|
