| Stock-No. |
1020-20819 |
| Category |
Gear Grinding Machine |
| Make |
OERLIKON-MAAG |
| Type |

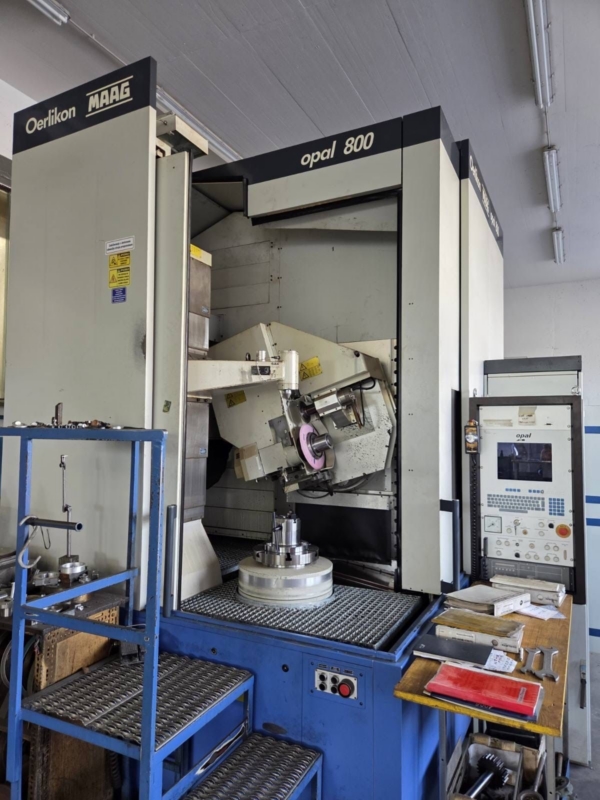

Opal 800 CNC |
| New in |
1995 |
| Control |
Opal / Siemens |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Switzerland |
| Delivery time |
short-dated |
| Freight basis |
ex foundation "is as is, where is" |
| Price |
| max. wheel diameter |
1000 mm |
| gear width |
630 mm |
| max. module |
16 |
| min. module |
1 |
| wheel diameter with counterstay |
800 mm |
| max. number of teeth |
999 |
| clamping length |
1060 mm |
| workpiece weight |
1500 kg |
| max.helical angle |
45 ° |
| grinding spindle drive |
ca. 20 kW |
| Control |
Opal / Siemens |
| total power requirement |
70 kW |
| weight of the machine ca. |
17,5 t |
| Description |

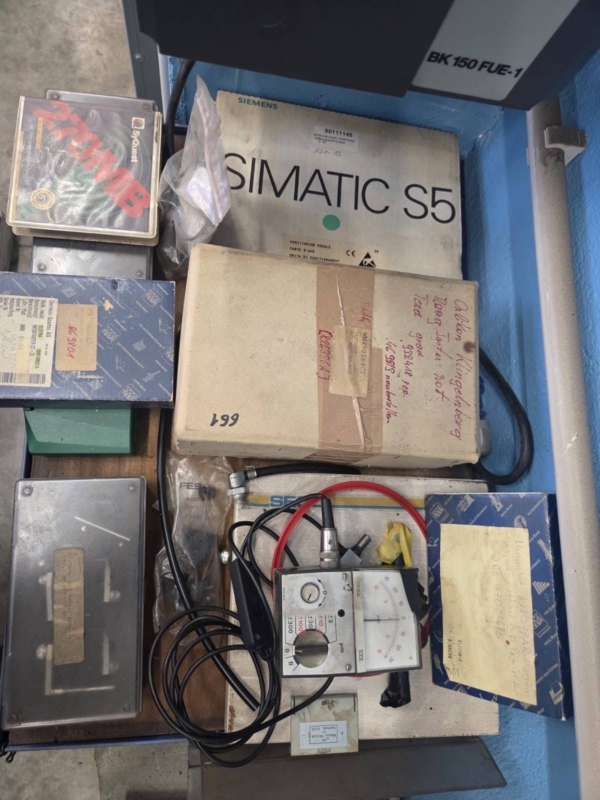

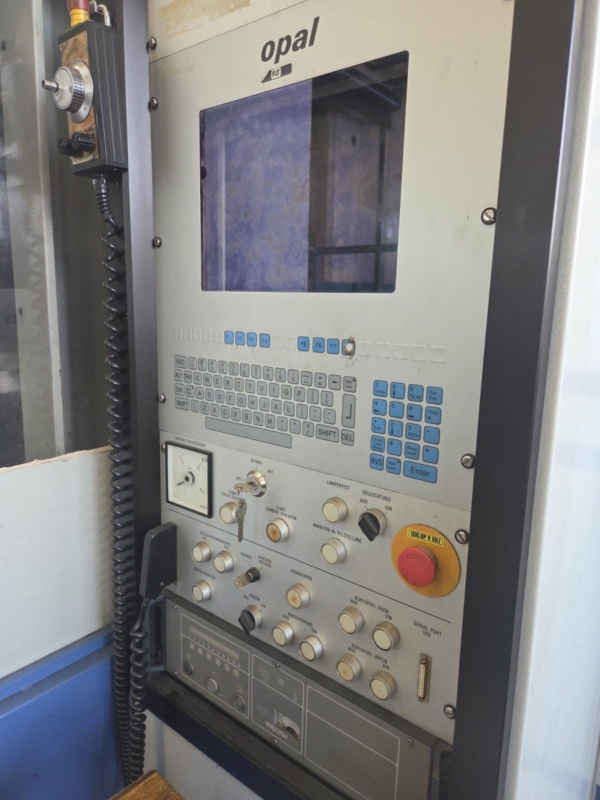

- CNC control Opal / Indramat with Siemens S5 PLC

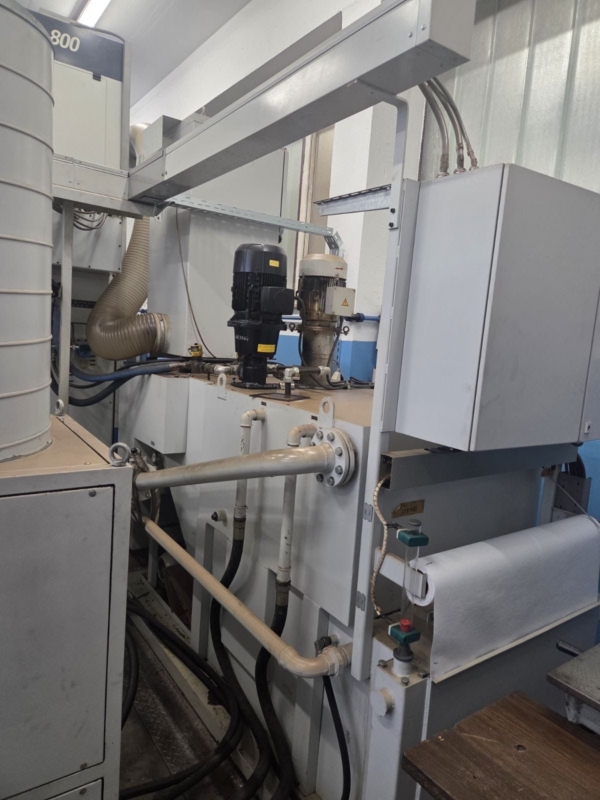

- paperbandfilter

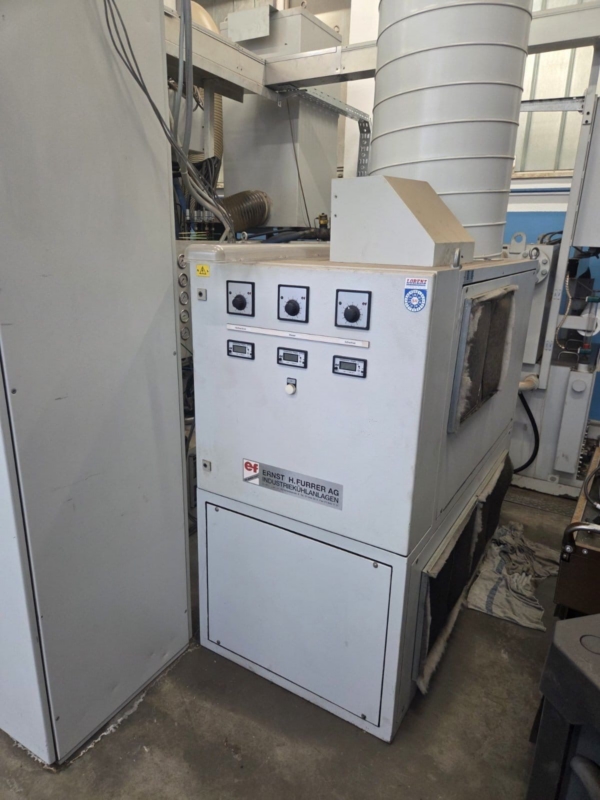

- oil mist exhauster
- complete covering
|
|
|
|
