| Stock-No. |
1020-20810 |
| Category |
Tool and Cutter Grinder |
| Make |
HAAS |
| Type |
Multigrind CB |
| New in |
2012 |
| Control |
Siemens 840 Dsl |
| Location |
ab Lager - demontiert |
| Origin |
Deutschland |
| Delivery time |
short-dated |
| Freight basis |
ex location |
| Price |
| x-axis |
700 mm |
| y-axis |
410 mm |
| z-axis |
500 mm |
| feed range |
30000 mm/min |
| A-Axis |
175 mm |
| C-axis |
320 ° |
| workpiece dia. |
340-500 mm |
| workpiece length |
700-1000 mm |
| workpiece weight max. |
kg |
| max. dia. of grinding wheel |
mm |
| speed spindle max. |
8000 U/min. |
| power capacity |
11,5 / 14,5 kW |
| Control |
Siemens 840 Dsl |
| tool taper |
HSK 50E |
| table-size |
1200 x 500 mm |
| total power requirement |
- kVA |
| weight of the machine ca. |
8,5 t |
| dimensions of the machine ca. |
3 x 2,6 x 3,55 m |
| Description |

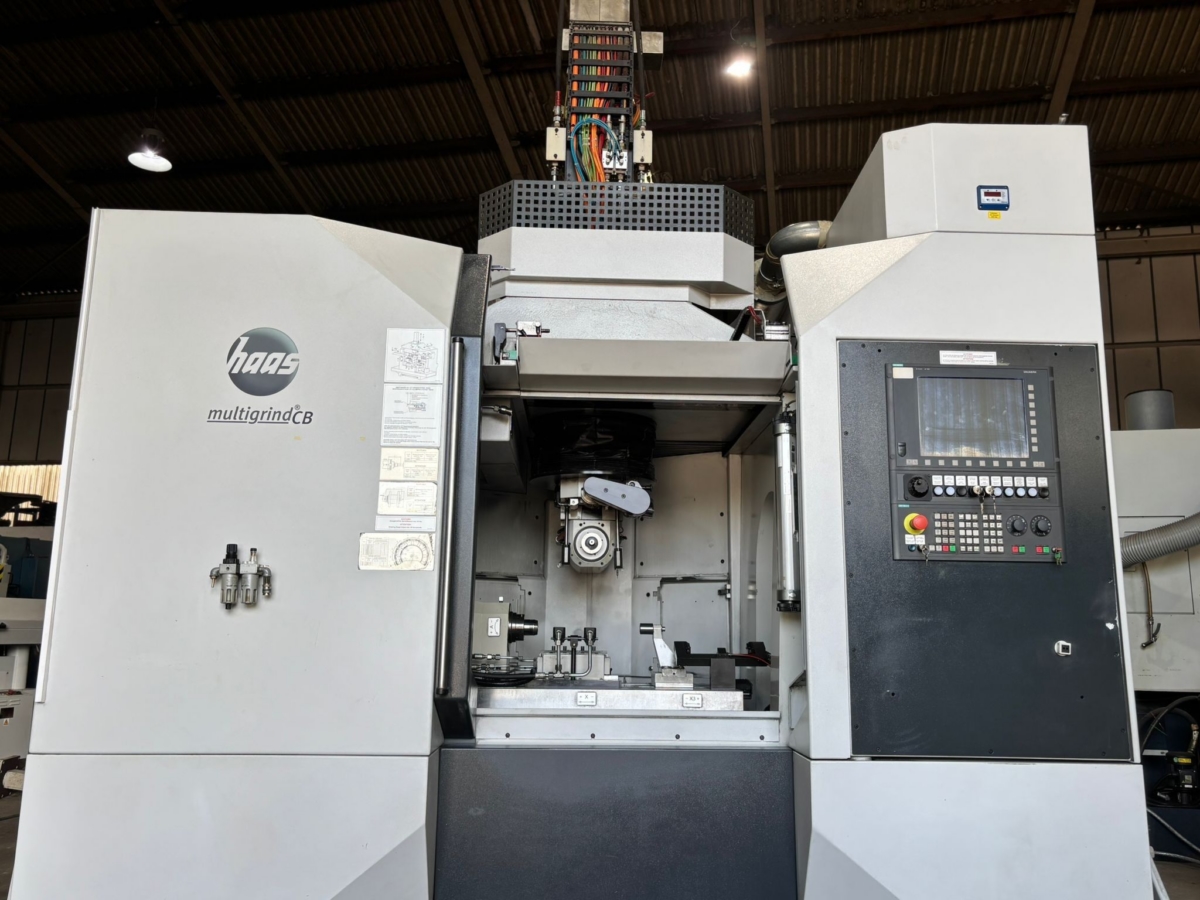

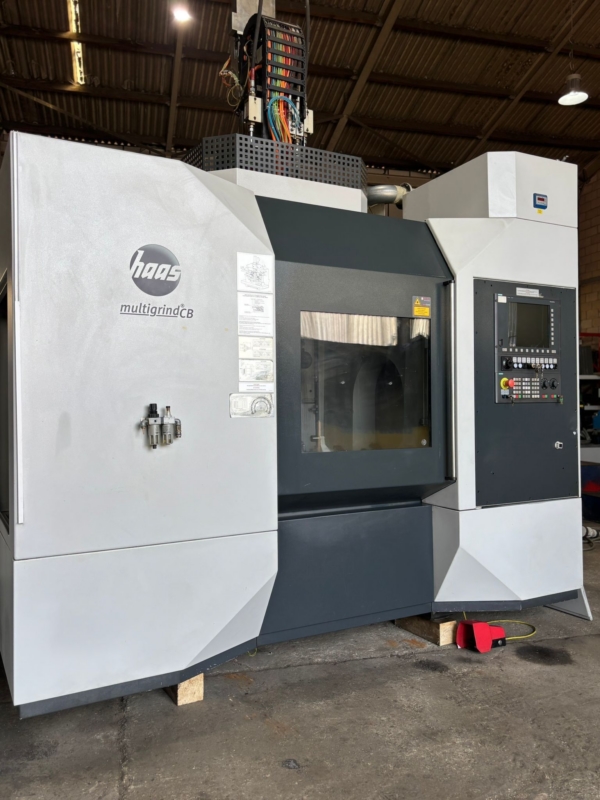

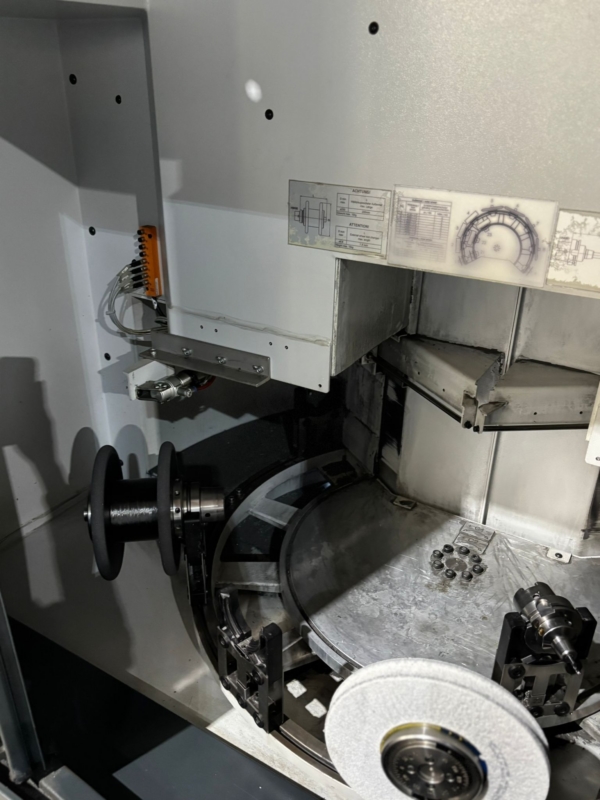

5 AXIS CNC TOOL AND CUTTER GRINDER
- CNC Control Siemens 840Dsl

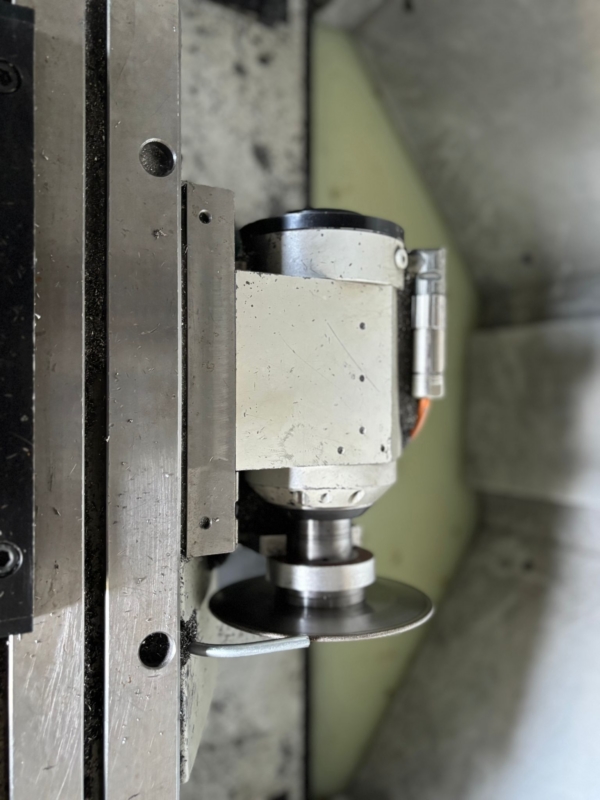

- Milling Unit
Tooling

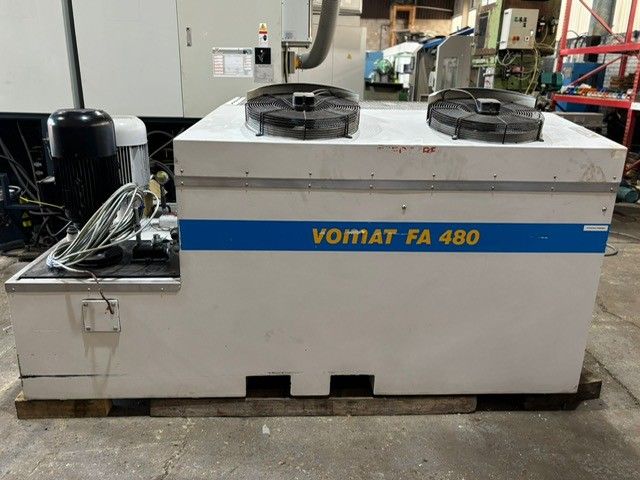

- high-pressure coolant system
- Tool Changer
|
|
|
|
