| Stock-No. |
1020-20796 |
| Category |
Roll Grinder |
| Make |
FARREL |
| Type |
|
| New in |
1960 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
USA |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| grinding diameter |
1860 mm |
| grinding length |
7500 mm |
| swing diameter |
1580 mm |
| max. workpiece weight between centres |
81000 kg |
| grinding wheel dia. x width |
1080 x 180 mm |
| spindle motor |
- kW |
| grinding wheel speeds |
400 U/min |
| tailstock quill adjustment |
1250 mm |
| tailstock quill diameter |
160 mm |
| workpiece drive |
- kW |
| total power requirement |
- KVa |
| weight of the machine ca. |
80 t |
| dimensions of the machine ca. |
13,2 x 4,25 x 3,2 m |
| Description |

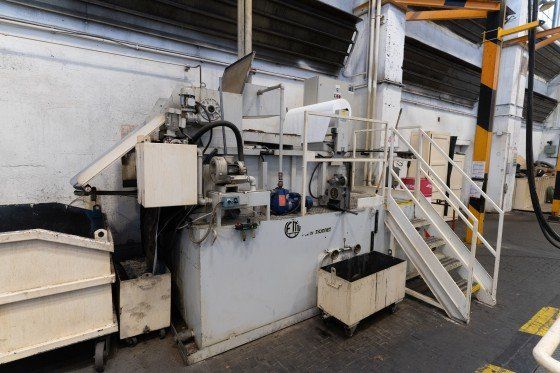

- Coolant & Filter System
- Crowning and Concav Grinding

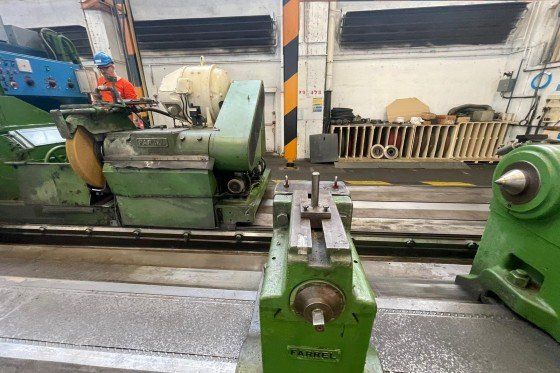

- Tailstock
- Lubrication

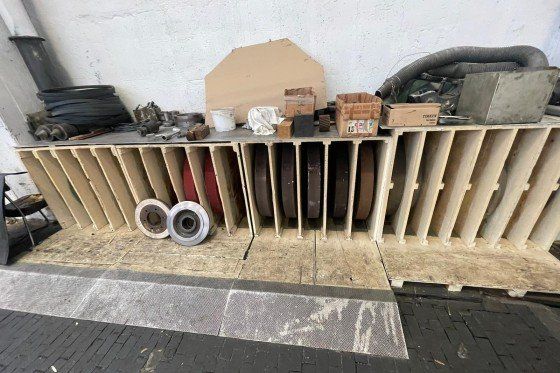

- Grinding Wheels and Flanges
|
|
|
|
