| Stock-No. |
1020-20792 |
| Category |
Vertical Turret Lathe - Double Column |
| Make |
TITAN |
| Type |
SC 33 CNC |
| New in |
1986/2005 |

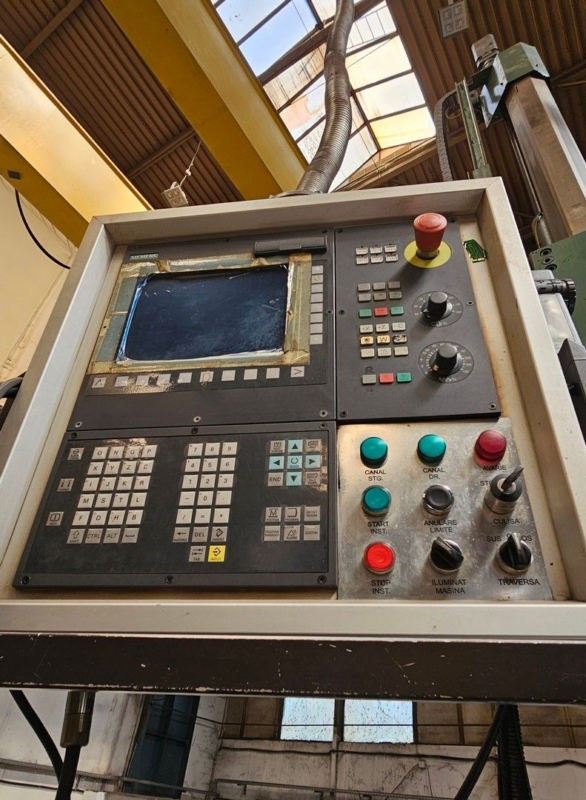

| Control |
Siemens 840D |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Romania |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |

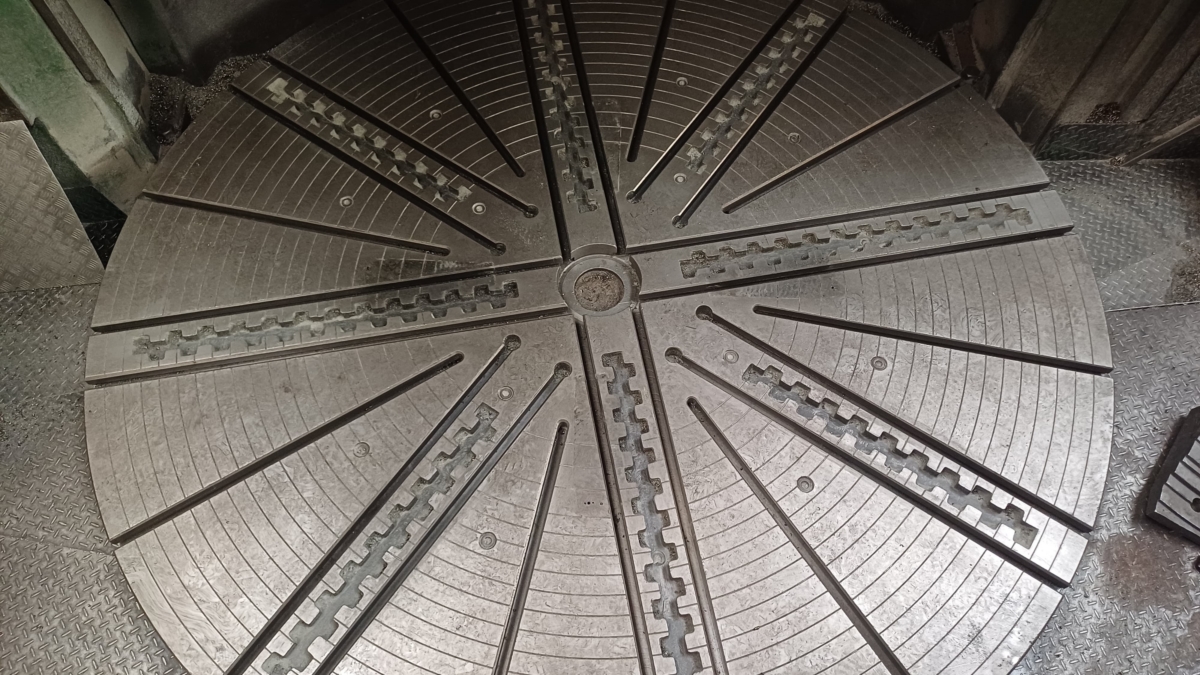

| faceplate diameter |
3000 mm |
| swing diameter |
3300 mm |
| turning height |
3000 mm |
| horizontal travel of side carriages |
1000 mm |
| distance face plate/tool carrier |
2300 mm |

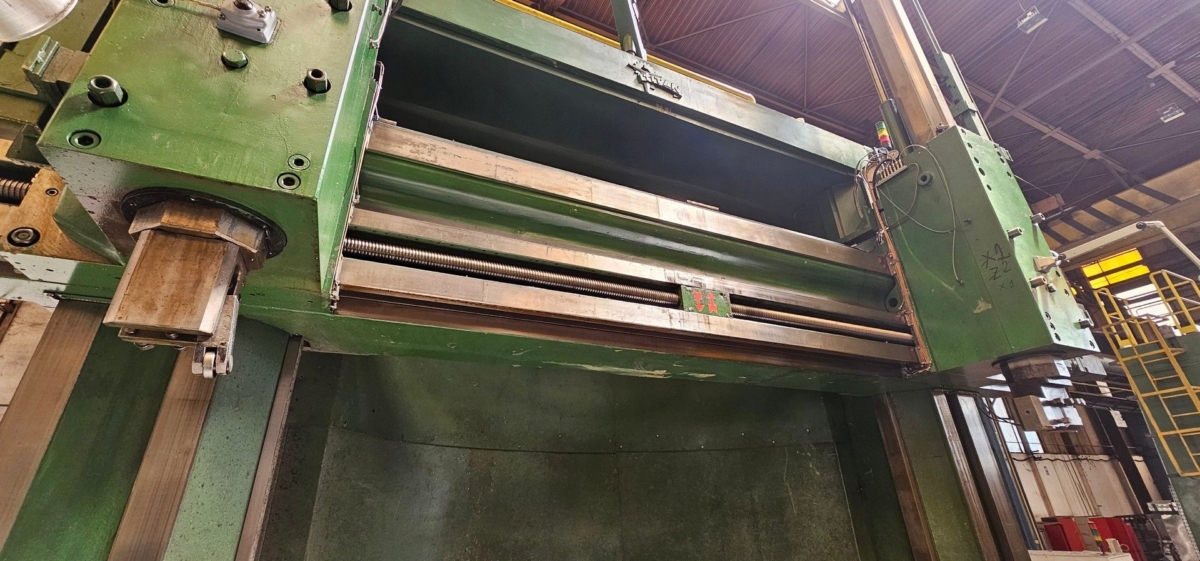

| vertical adjustment of the crossrail |
2100 mm |
| workpiece weight |
18 t |
| main drive |
ca 55 kW |
| ram swivable +/- |
35 ° |
| milling spindle - taper |
ISO 50 |
| working feed |
0,05 - 5 mm/U |
| faceplate turning speed range -stepless- |
1,02 - 92 U/min |
| Control |
Siemens 840D |
| dimensions of the machine ca. |
5,6 x 5,3 x 5,4 m |
| weight of the machine ca. |
48 t |
| Description |
Machine is converted/modernized to CNC control in 2005:
- CNC control Siemens 840D
- Heidenhain scales and encoder
- 2 vertical rams
|
