| Stock-No. |
1020-20789 |
| Category |

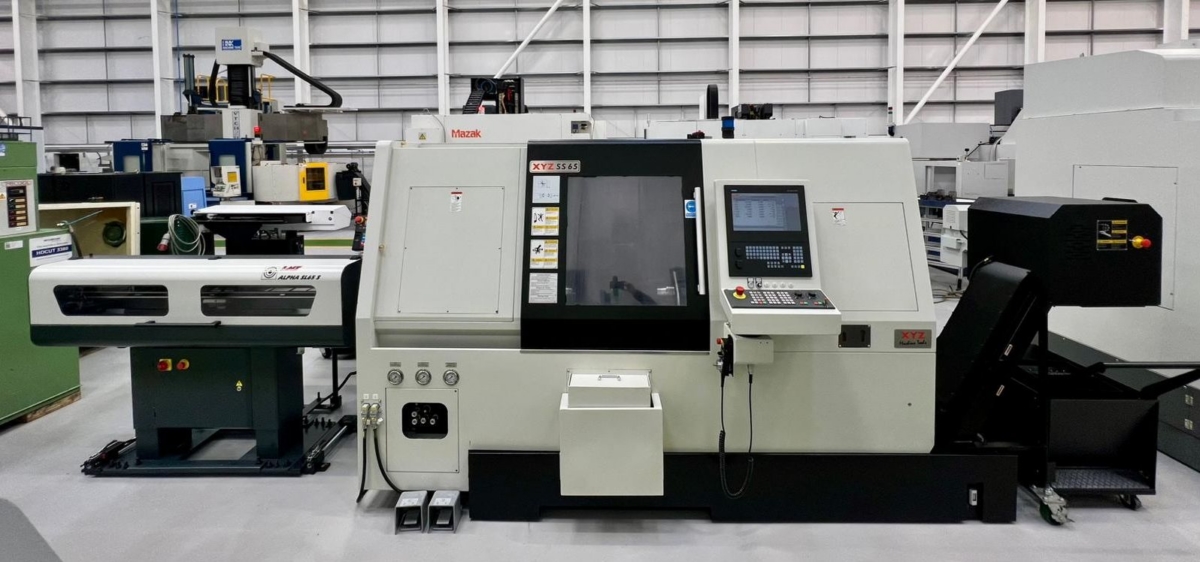

CNC Turning- and Milling Center |
| Make |
XYZ Machine Tools |
| Type |
SS 65 |
| New in |
2023 |
| Control |
Siemens 828 |
| Location |
ab Standort,ohne Demontage |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
ex location |
| Price |
| turning diameter |
380 mm |
| turning length |
520 mm |
| control |
Siemens 828 |
| turning speeds |
4000 U/min |
| 0 |
16,5 kW |
| c-axis |
0,0001 ° |
| bar capacity |
65 mm |
| spindle nose |
A2-6 |
| turning diameter over bed slide |
380 mm |
| turning diameter over bed |
650 mm |
| y-axis |
+/-50 mm |
| rapid travel - longitudinal/face |
24 m/min |
| total power requirement |
- kW |
| weight of the machine ca. |
5 t |
| Total weight, approx. |
kg |
| dimensions of the machine ca. |
4,5 x 3,2 x 1,95 m |
| dimensions of the machine ca. |
5,2x3,0x3,2 m |
| Description |

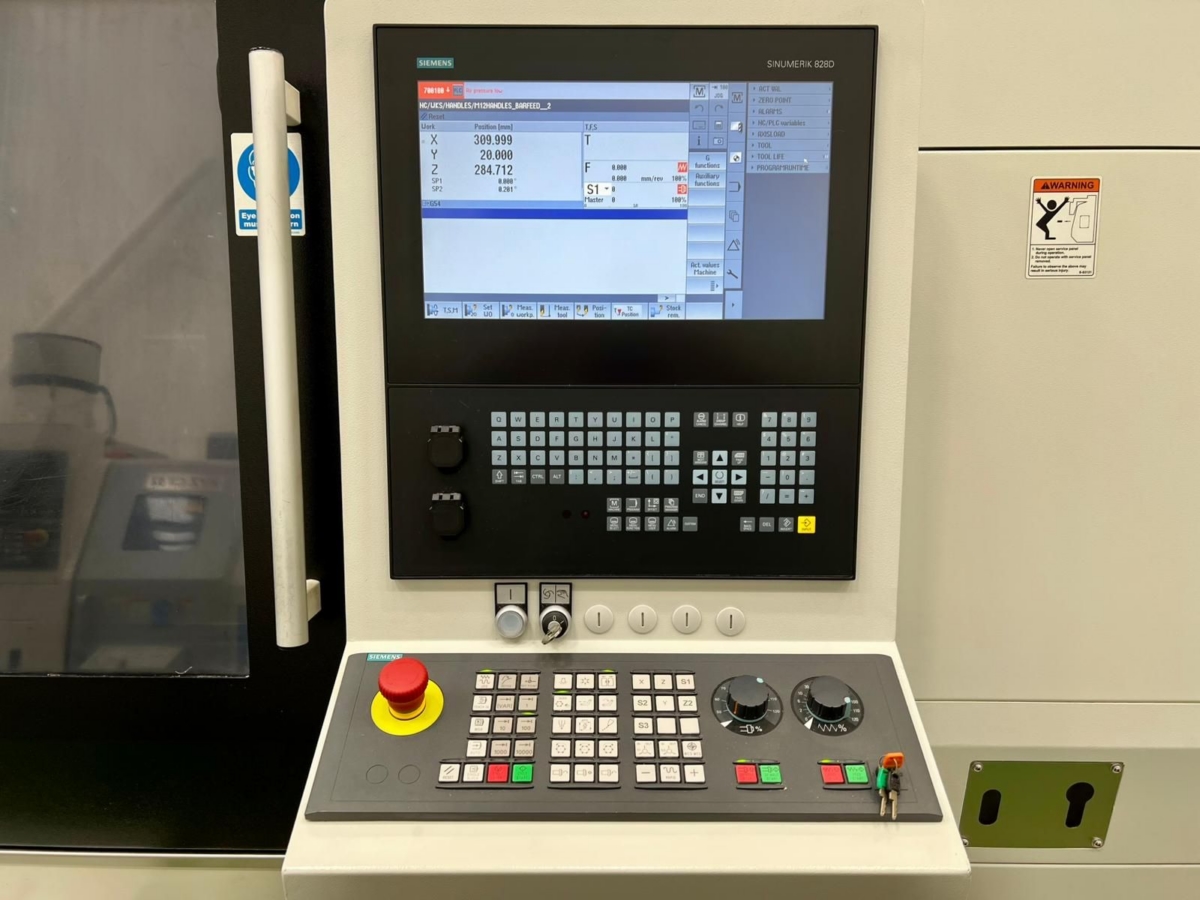

- CNC Control Siemens 828 Shop Turn/ShopMill (Touchscreen)

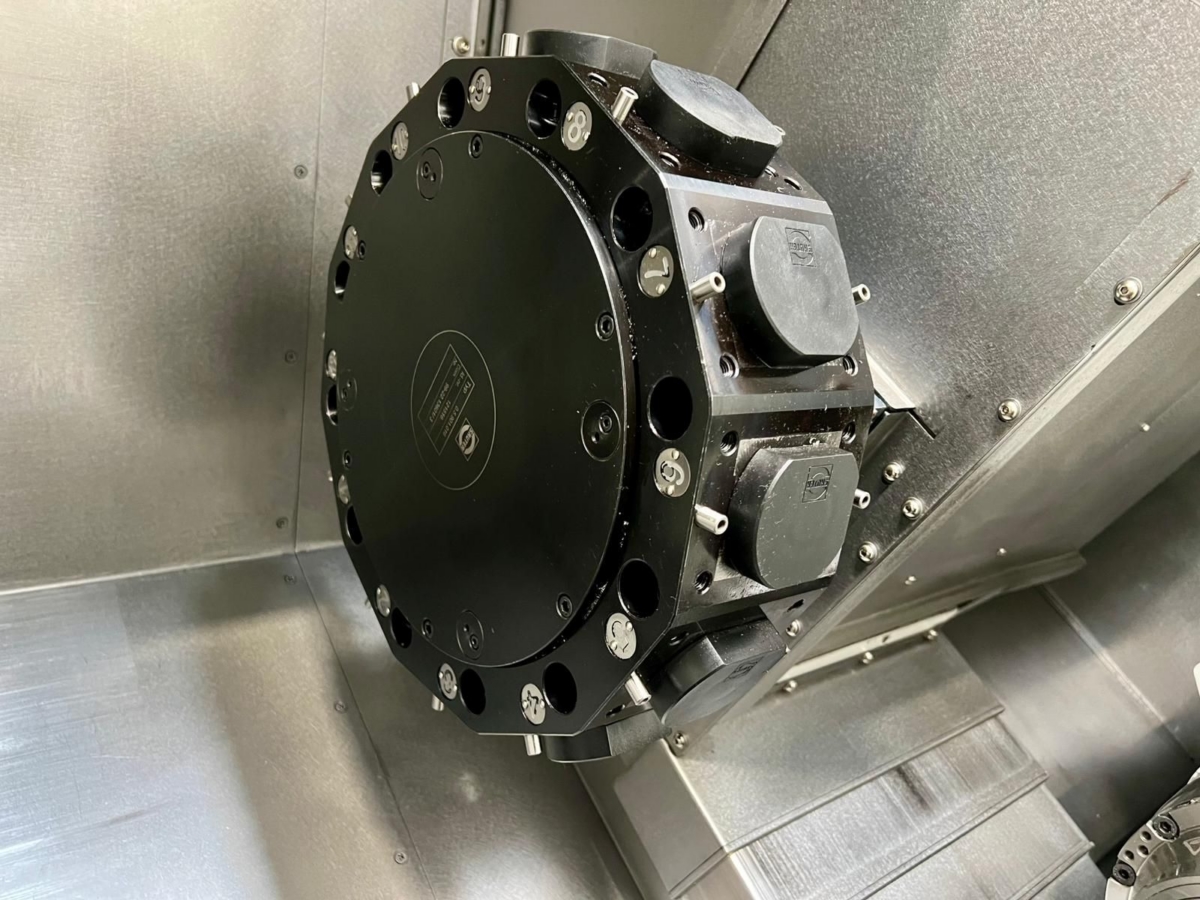

- Tool Revolver (VDI 30), 12-fold
-- Live tool max speed 5,000 rpm.
-- Turning tool shank dimensions 20 x 20 mm, Boringbar dia. Ø40 mm.

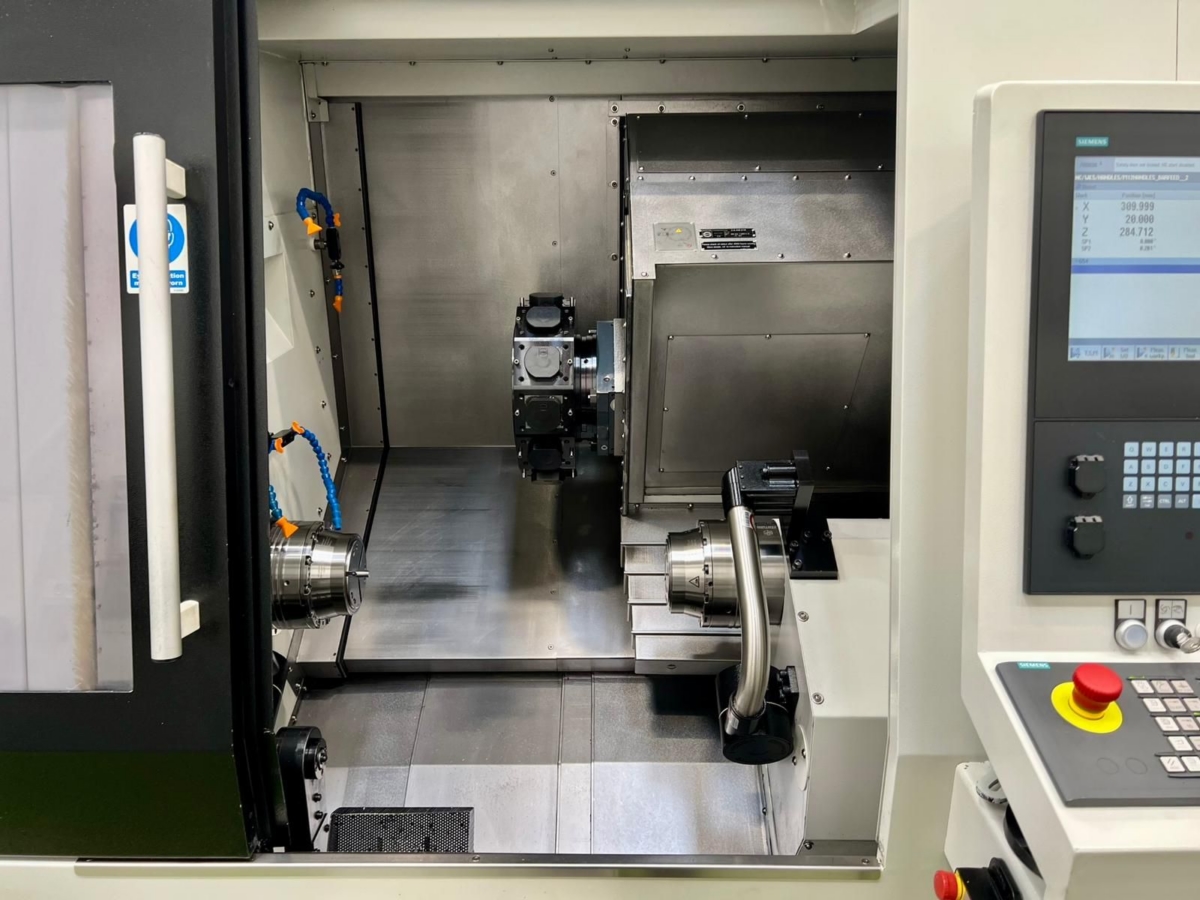

- Main Spindle
-- Power chuck diarmeter 200 mm.

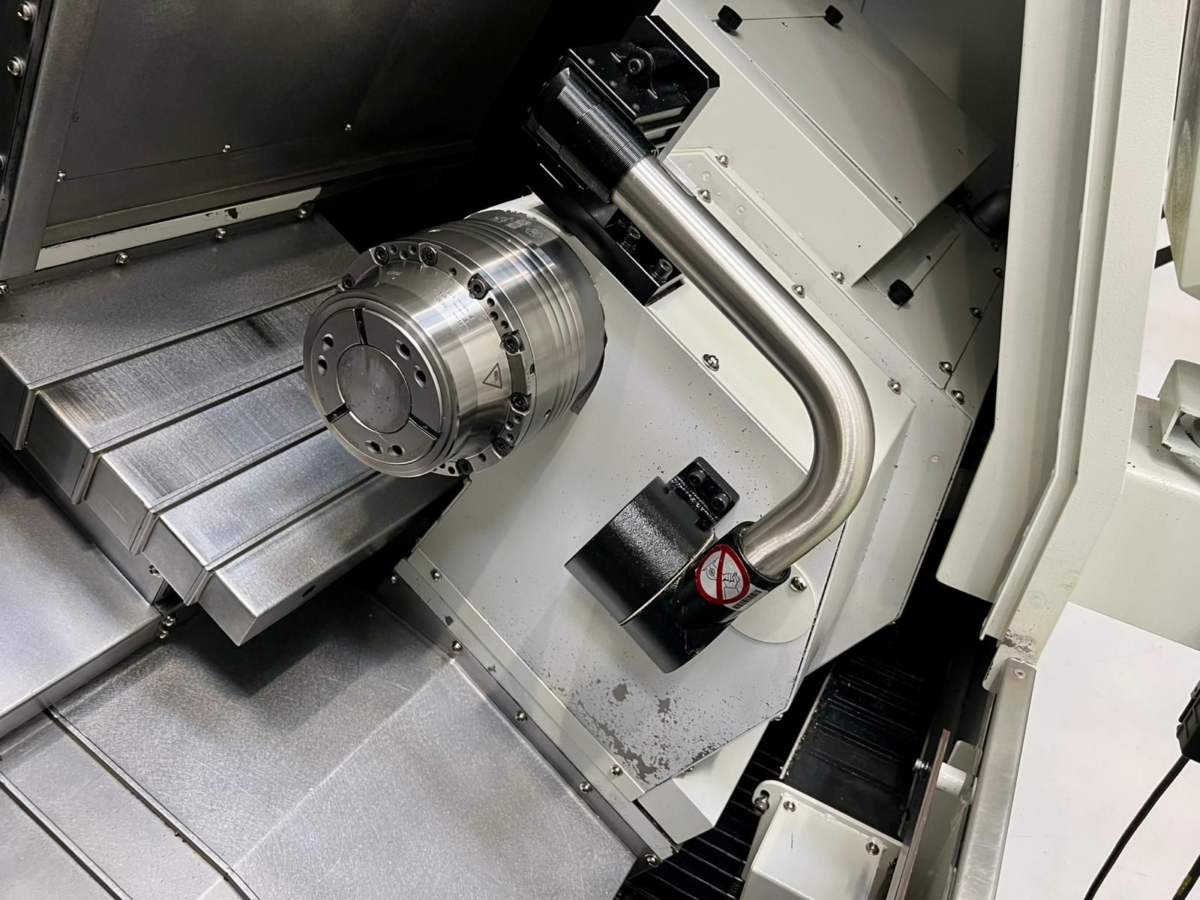

- Sub spindle
-- Motor 11 kW
-- spindle speeds 5.000 U/min
-- Bar diameter 52 mm
-- Subspindle nose A2-5
-- power chuck diameter 150 mm.
- Coolant capacity 480L. Coolant pump delivery 135 L/min@2.5 Bar.

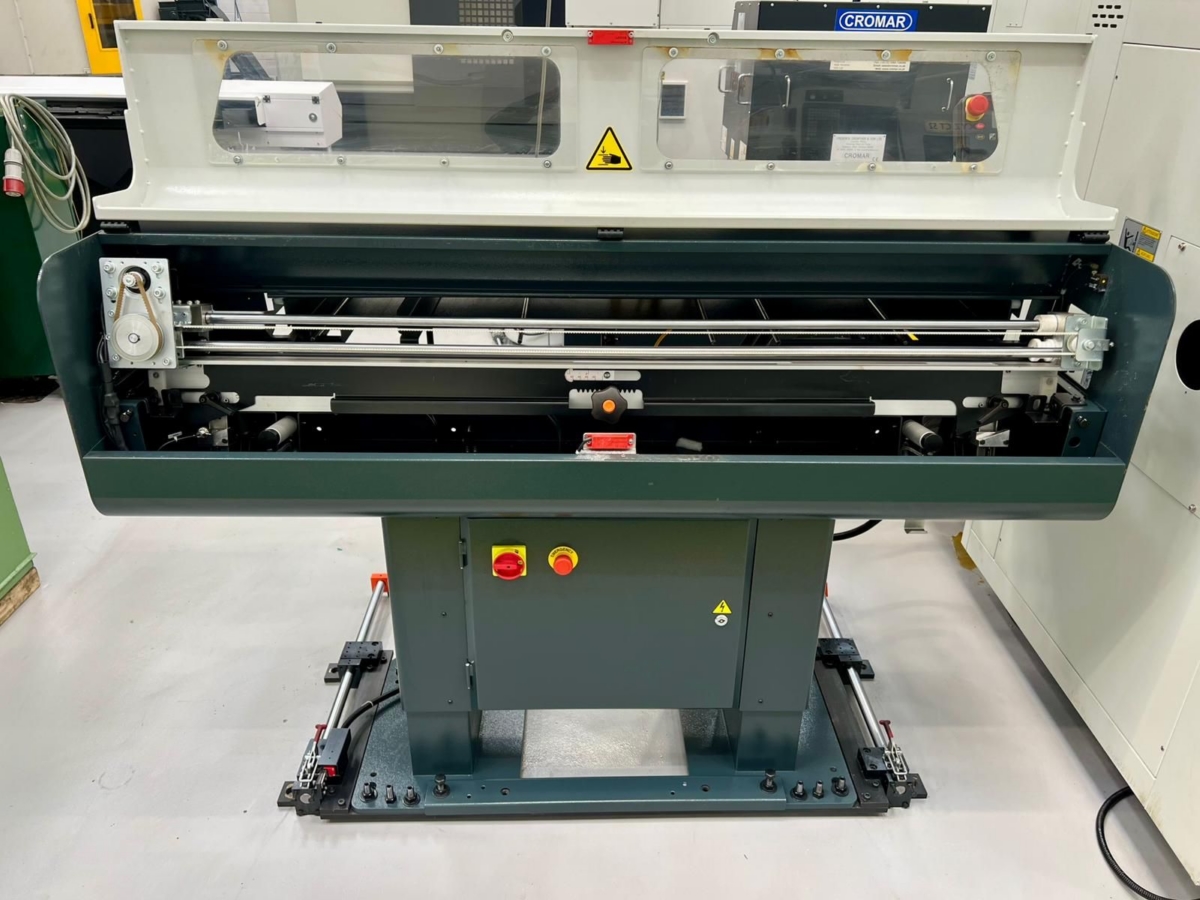

- LNS Alpha Barfeeder
- Swarf Conveyor
- Selection of live & static tooling.
- 80mm Hainbuch Collet Chucks A2-5 & A26.
- 2x Renishaw Automatic Toolsetting Probes
- C Axis for Complex Contour with Brake.
|
|
|
|
