| Stock-No. |
1020-20787 |
| Category |
Bed Type Milling Machine - Universal |
| Make |
KIHEUNG |
| Type |
U 1350 |
| New in |
2009 |
| Control |
Heidenhain iTNC 530 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Korea |
| Delivery time |
Immediately |
| Freight basis |
Ex site, without dismantling and loading |
| Price |
| x-travel |
4000 mm |
| y-travel |
1350 mm |
| z-travel |
(Vert.) 1600 mm |
| Control |
Heidenhain iTNC 530 |

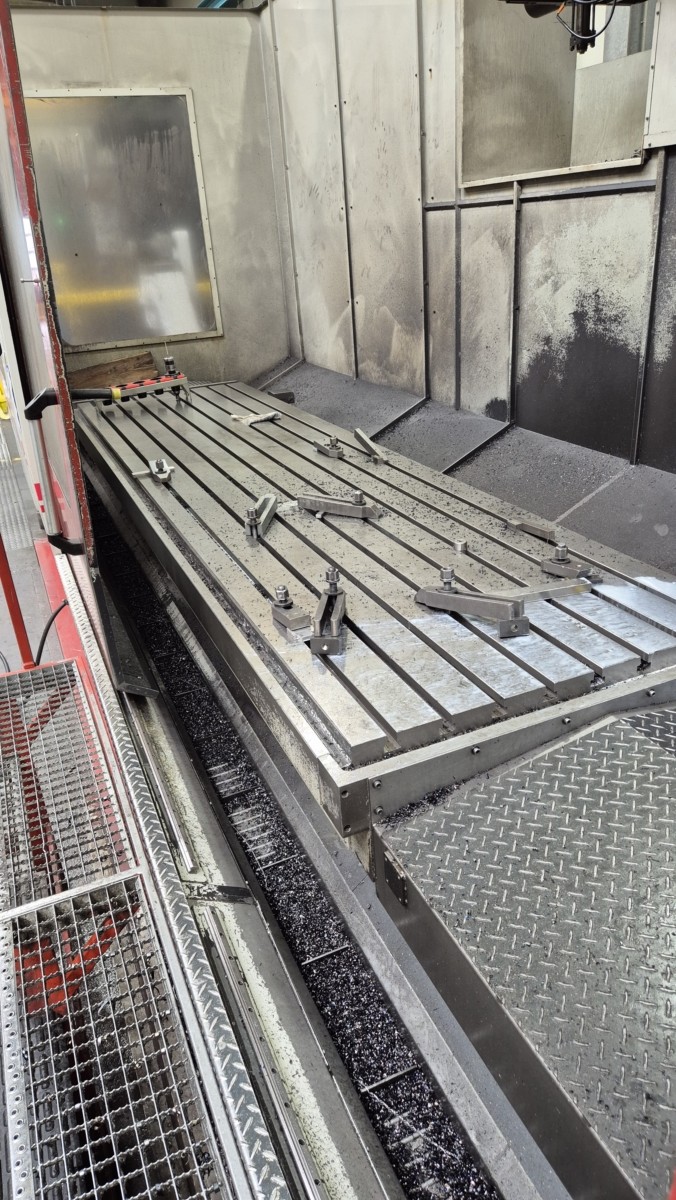

| table surface area |
4200 x 1150 mm |
| table load |
13 t |
| tool taper |
ISO 50 |
| spindle turning speed - stepless |
0 - 3000 U/min |
| transmission ratio |
2 |
| spindle motor |
28/38 kW |
| feed range |
5000 mm/min |
| rapid traverse |
(X/Y) 12 m/min |
| rapid traverse |
(Z) 10 m/min |
| weight of the machine ca. |
37 t |
| dimensions of the machine ca. |
12,9 x 6,53 x 3,79 m |
| Description |
January 2025: The milling head was overhauled (new bevel gears and bearings). Costs 38.000,- Euro.
Working hours (dated 31. July 2025):
Machine on: 38.483 h
Auto cycle: 12.798 h
Spindle hours: 11.645 h
* CNC-control HEIDENHAIN iTNC 530
* Electronic handwheel

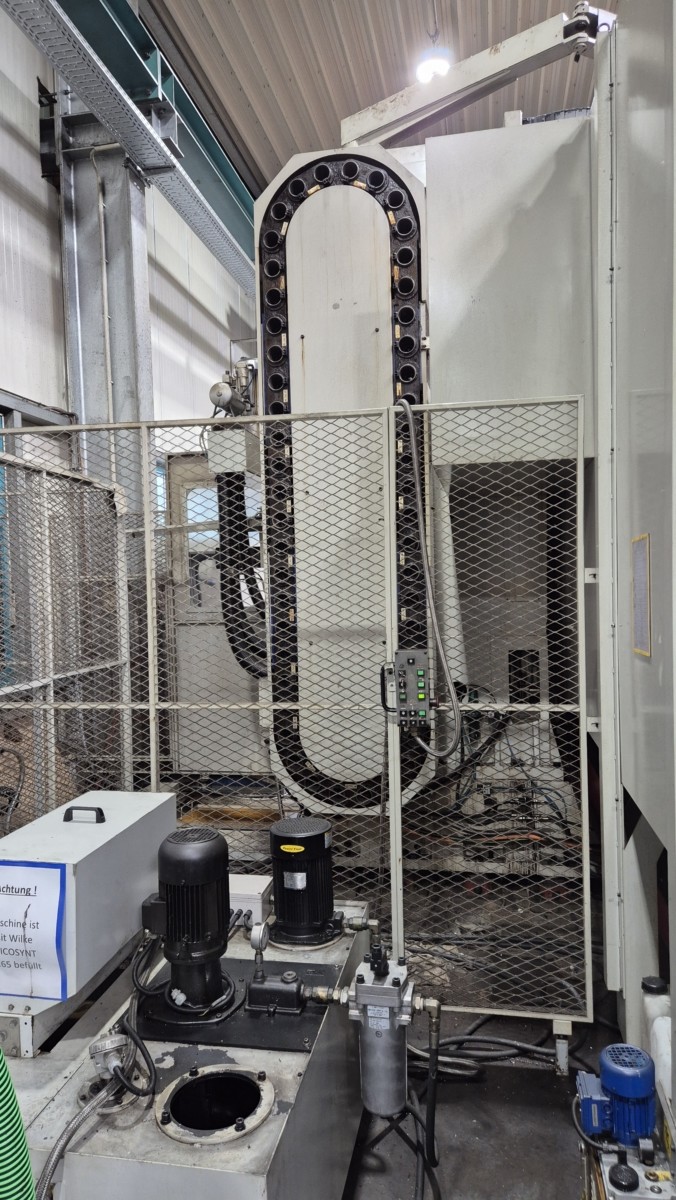

* 50-position tool changer
* Controlled universal milling head, indexable 2.5 / 2.5 deg.
* Coolant device
* Cooling through the spindle
* 2 chip conveyors

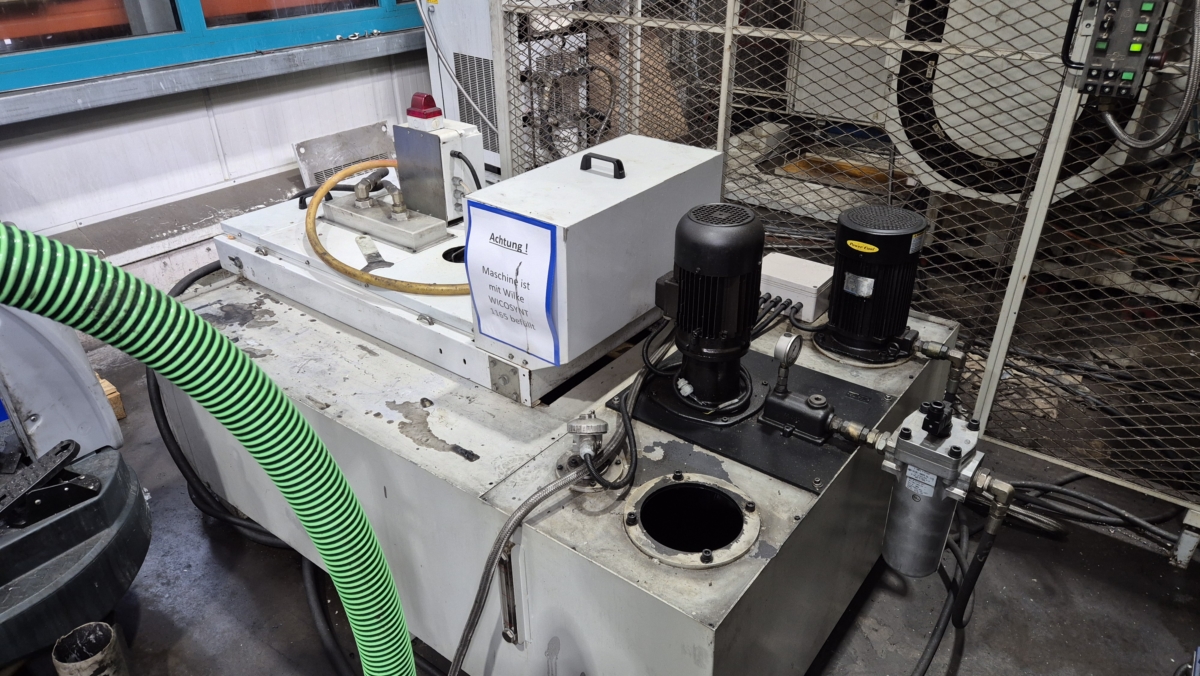

* Oil cooler
* Measuring probe
* Machine documentation
|
|
|
|
