| Stock-No. |
1020-20784 |
| Category |

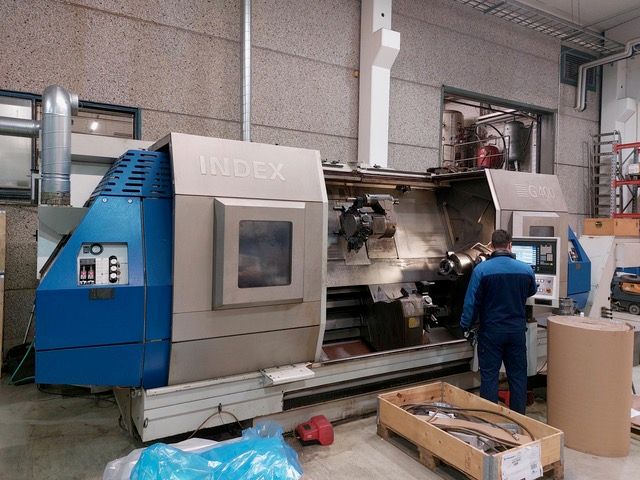

CNC Turning- and Milling Center |
| Make |
INDEX |
| Type |
G 400 |
| New in |
2002 |
| Control |
C 200/ Siemens 840D |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
ex location |
| Price |
| turning diameter |
400 mm |
| turning length |
2000 mm |
| control |
C 200/ Siemens 840D |
| material diameter max. |
102 |
| turning speeds |
3000 U/min |
| 0 |
53/68 kW |
| max. torque |
675/900 Nm |
| c-axis |
0,0001 ° |
| total power requirement |
120 kW |
| weight of the machine ca. |
17 t |
| dimensions of the machine ca. |
5,2x3,0x3,2 m |
| Description |
Equipment:

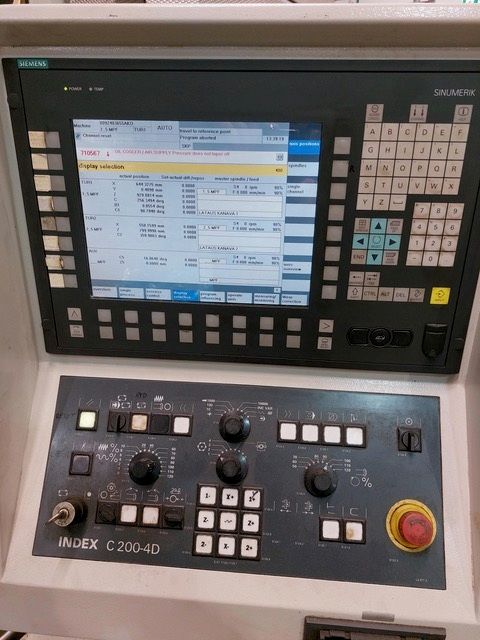

- CNC control Index c200 / Siemens 840D
- Main spindle - chuck diameter 400 mm

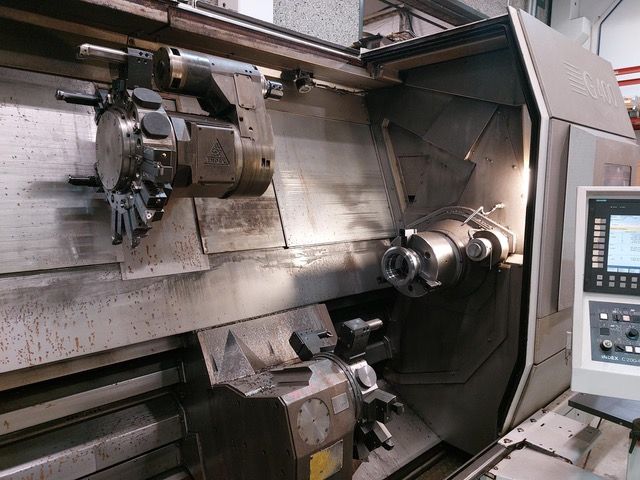

- 12-station disc turret
- 10-station turret head on cross slide 2
- Counter spindle chuck diameter: 320 mm
- Counter spindle and main spindle with C-axis 0.001°
- Thread cutting without compensation chuck

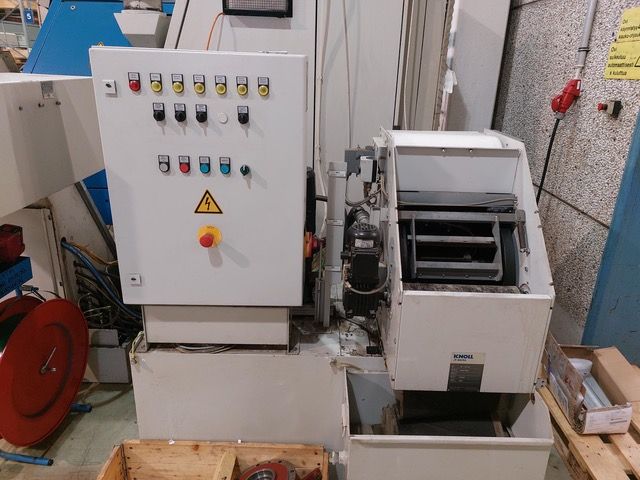

- Chip conveyor
- Coolant system
|
|
|
|
