| Stock-No. |
1020-20783 |
| Category |

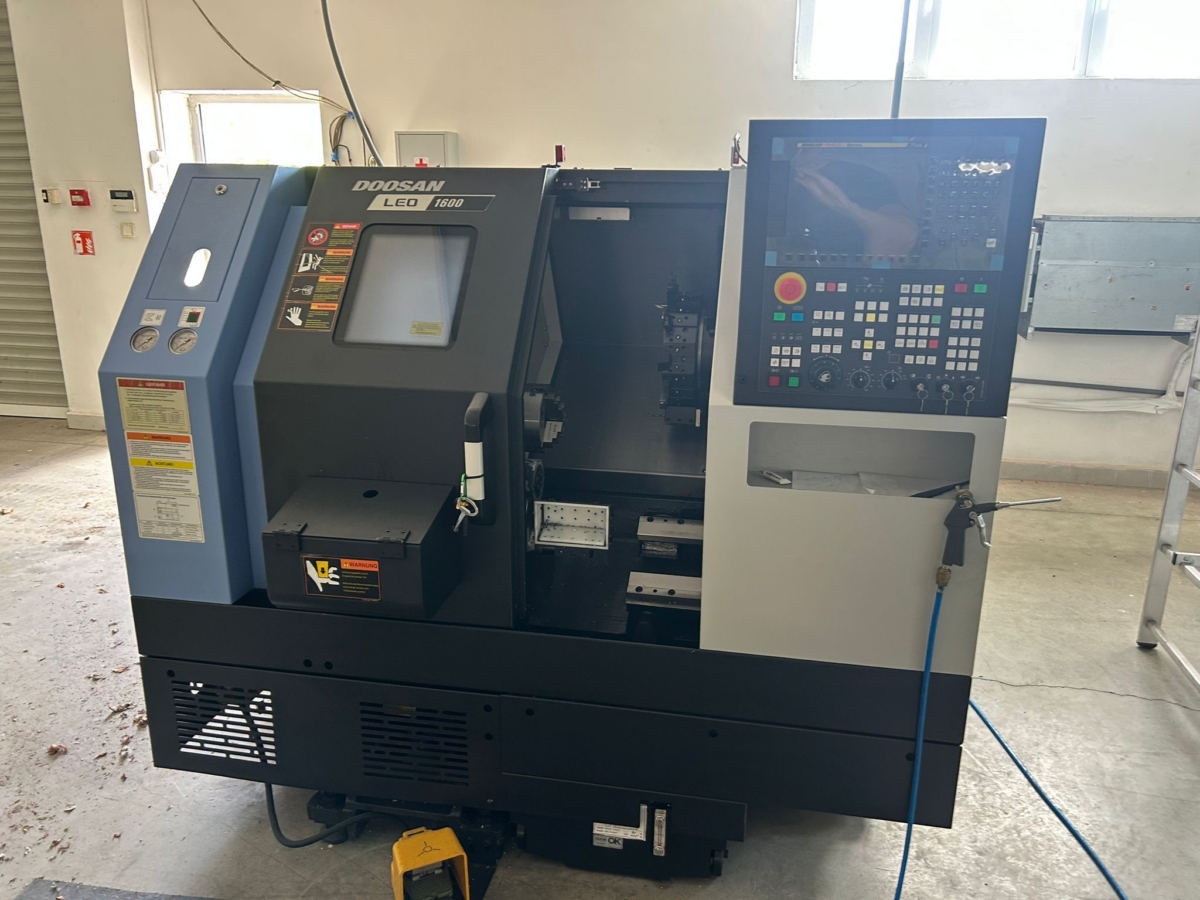

CNC Lathe |
| Make |
DOOSAN |
| Type |
LEO 1600 |
| New in |
2022 |
| Control |
Fanuc 0i |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Korean |
| Delivery time |
short-dated |
| Freight basis |
ex location |
| Price |
| turning diameter |
320 mm |
| turning length |
303 mm |
| control |
Fanuc 0i |
| turning diameter over bed |
470 mm |
| spindle turning speed range |
4000 U/min |
| spindle motor |
7,5 / 5,5 kW |
| x-axis |
175 mm |
| z-axis |
330 mm |
| rapid travel (x and z-axis) |
30 m/min |
| spindle bore |
61 mm |
| tailstock quill taper MT |
MT 4 |
| tailstock quill stroke |
80 mm |
| tailstock quill diameter |
65 mm |
| workpiece weight |
150 kg |
| bar capacity |
45 mm |
| total power requirement |
14,97 kVA |
| weight of the machine ca. |
2,6 t |
| dimensions of the machine ca. |
1,85 x 1,69 x 1,65 m |
| Description |
- FANUC 0i CNC control
- 3-jaw chuck, diameter 170 mm
- 8-station tool turret (25 x 25 mm)
- Tailstock
|
|
|
|
