| Stock-No. |
1020-20776 |
| Category |
milling machining centers - universal |
| Make |
DMG-DECKEL-MAHO |
| Type |
DMP 60 S |
| New in |
2005 |
| Control |
Siemens Sinumerik 840D |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
ex foundation "is as is, where is" |
| Price |
| x-travel |
760 mm |
| y-travel |
460 mm |
| z-travel |
560 mm |
| Control |
Siemens Sinumerik 840D |
| b-axis |
NC-Schwenkfräskopf |
| A-axis |
NC-Rundachse |
| milling-head swivable +/- |
-120 / +30 |
| Tool changer |
60 |
| Cooling through the spindle |
IKZ 40 bar |
| spindle turning speed range |
12.000 U/min |
| spindle motor |
28/19 kW |
| tool taper |
HSK-A 63 |
| max. torque on the spindle |
121 pm |
| total power requirement |
ca. 60 kVA |
| weight of the machine ca. |
8,5 t |
| dimensions of the machine ca. |
- m |
| Description |

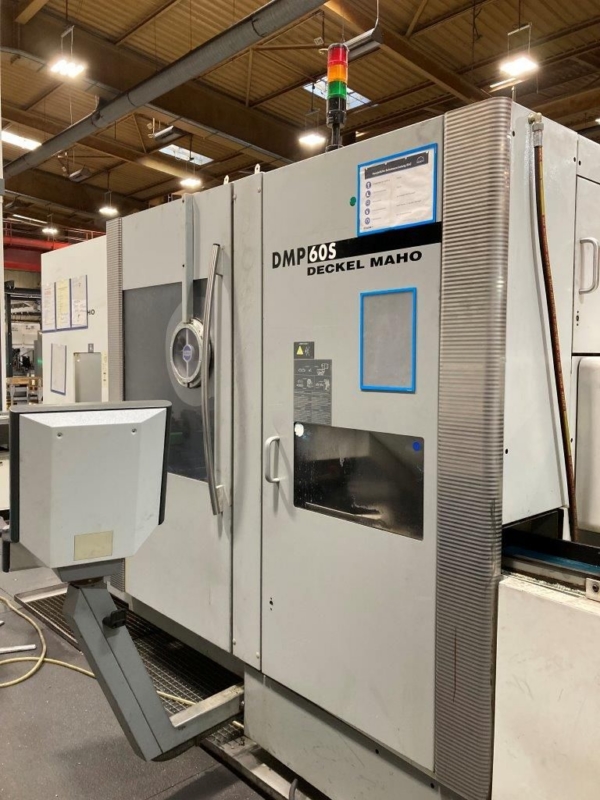

Universal bar machining center

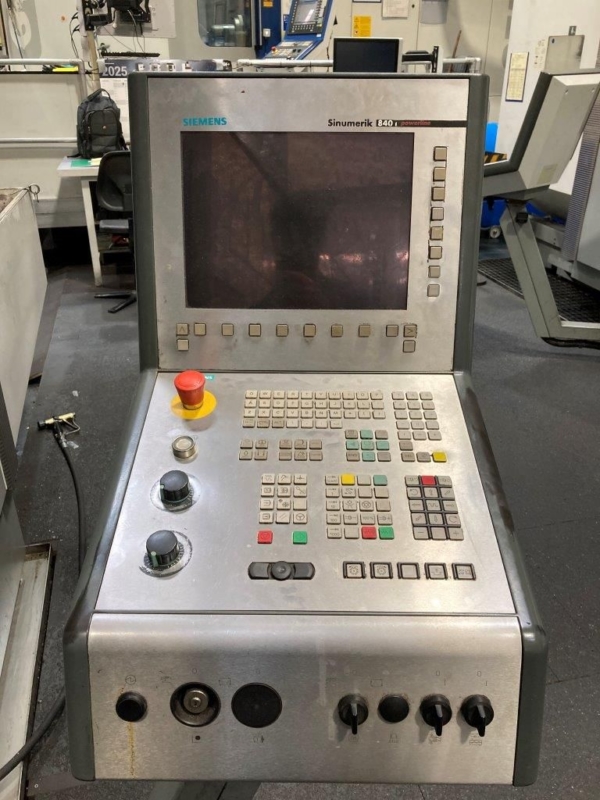

- Siemens Sinumerik 840 D 3D path control - Powerline ShopMill

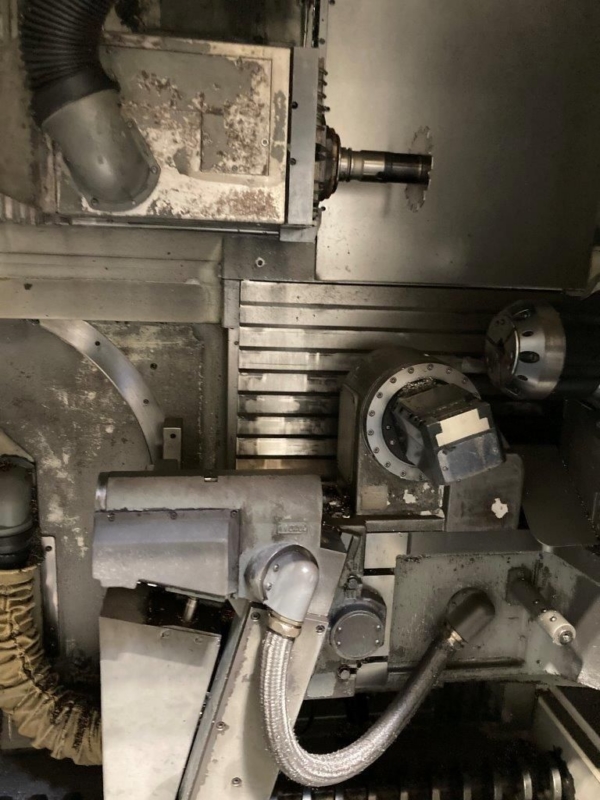

- Controlled NC swivel milling head (B-axis)

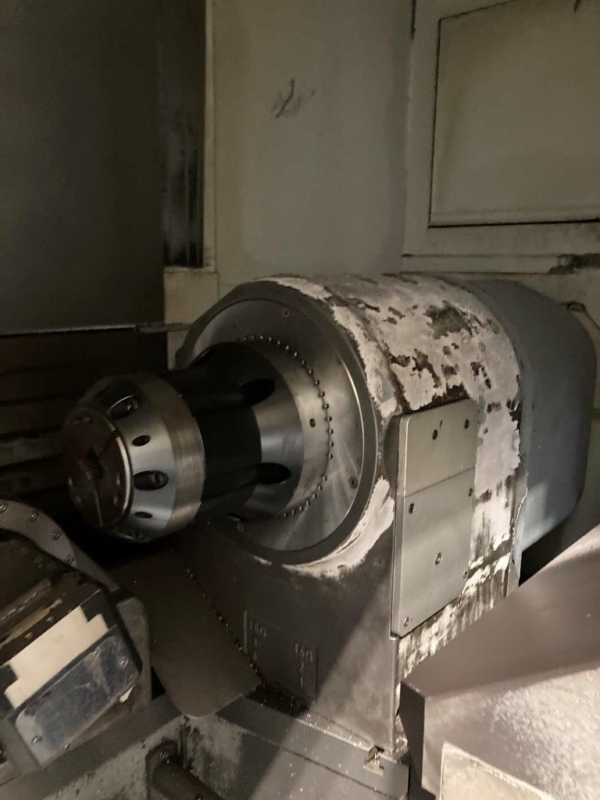

- NC rotary axis with integrated clamping system
- NC bar loader

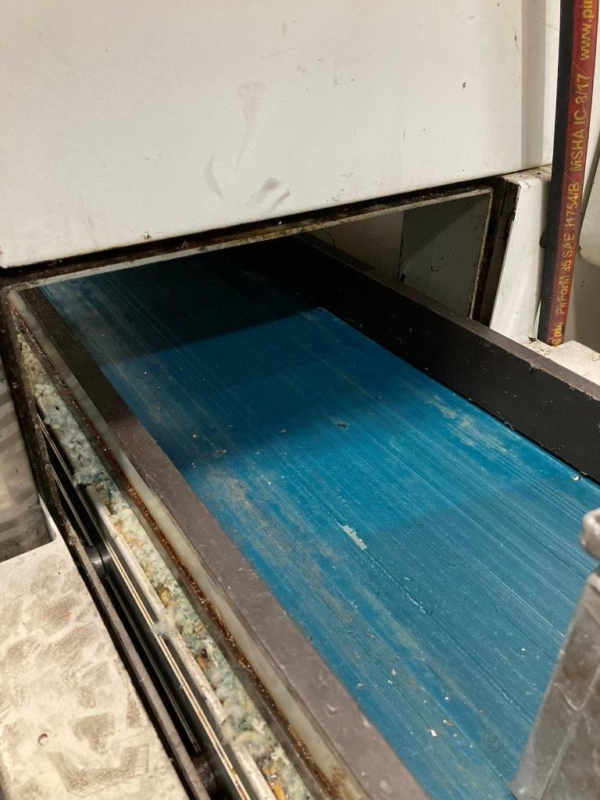

- Slide/conveyor belt for parts disposal
- Coolant tank 600 ltr. with paper belt filter
- IKZ 40 bar through spindle center

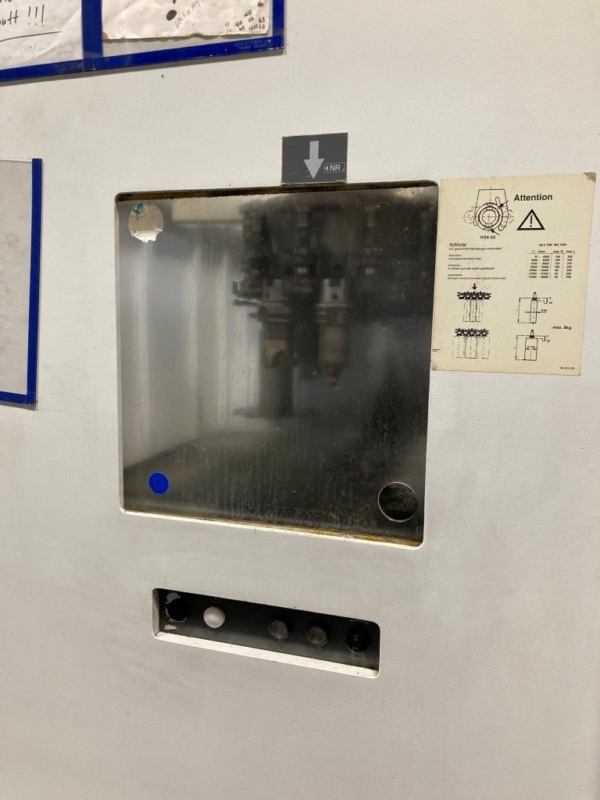

- Rotating viewing window
- Tool breakage control

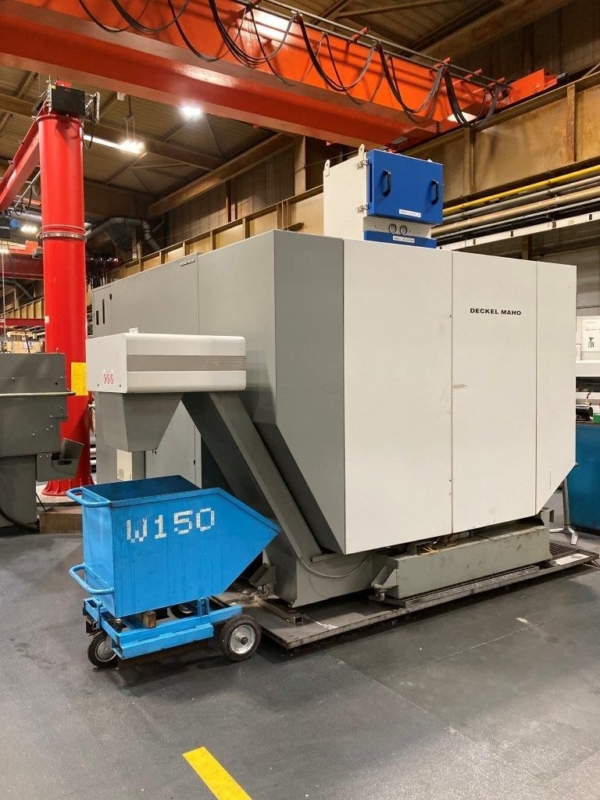

- Chip conveyor
- Tool magazine - Chain magazine with 60 magazine slots HSK-A 63
- Clamping devices for NC rotary axis (A-axis)
