| Stock-No. |
1020-20773 |
| Category |

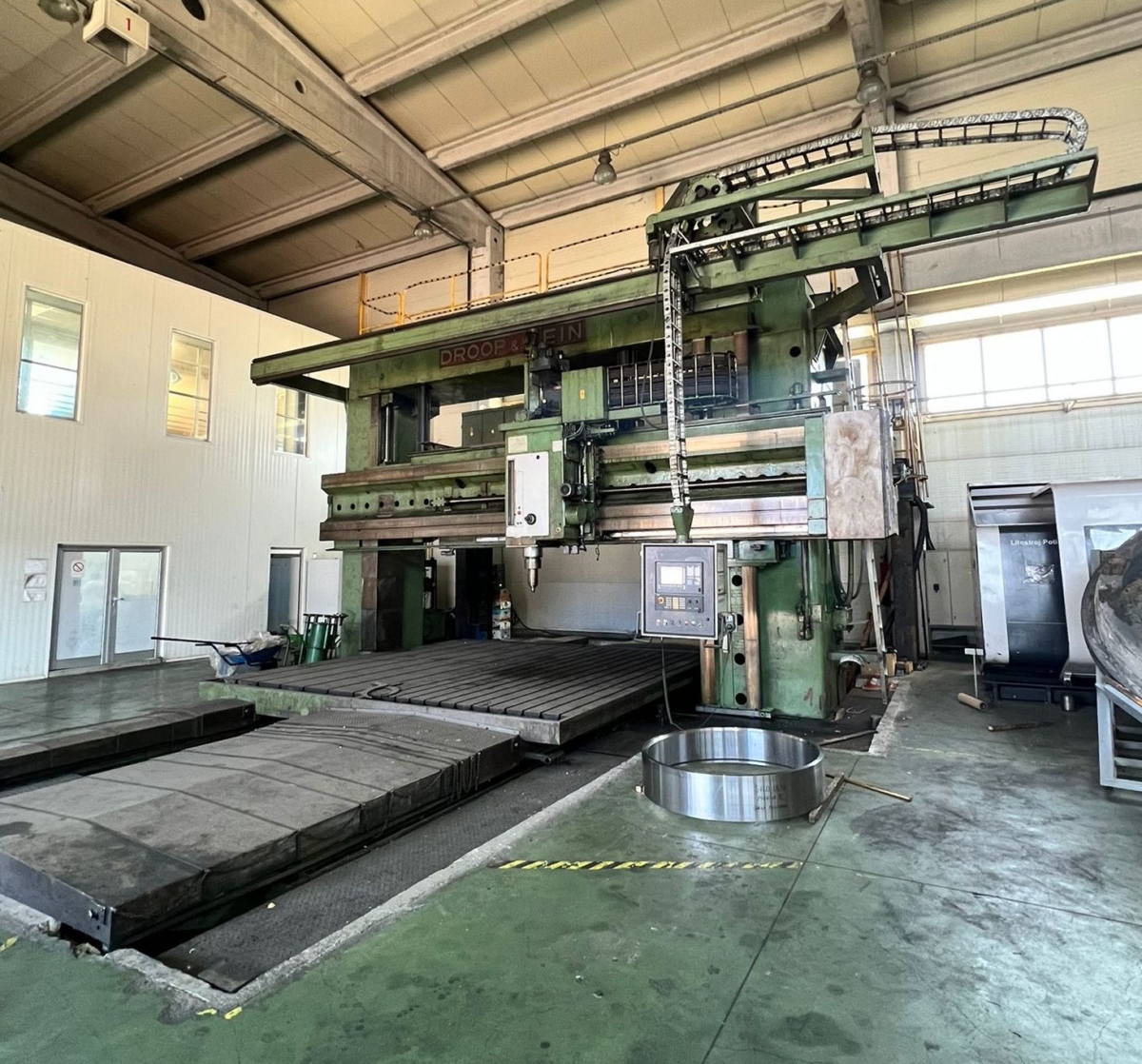

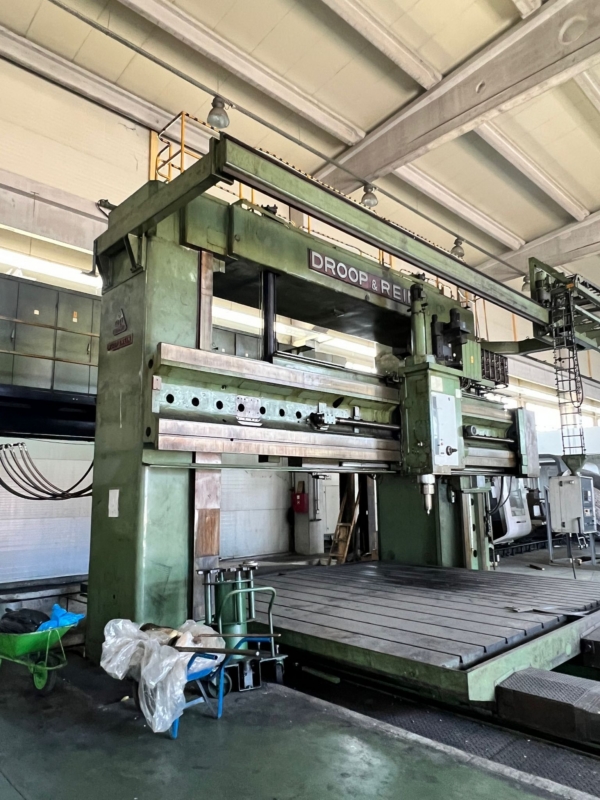

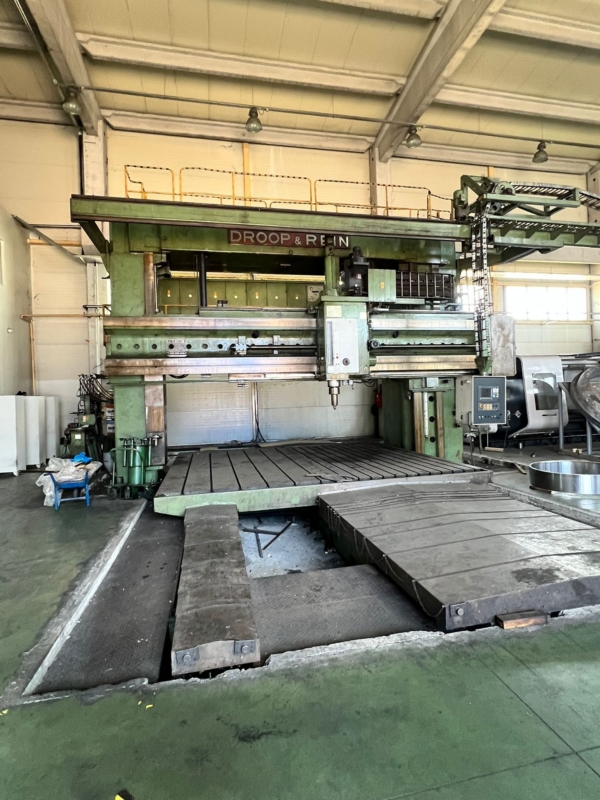

Planer-Type Milling M/C - Double Column |
| Make |
DROOP & REIN |
| Type |
FASH 160 CNC |
| New in |
1980 |
| Control |
Siemens 840D |
| Location |
ab Werksstandort unter Strom |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
ex factory - EXW |
| Price |
| x-travel |
4500 mm |
| y-travel |
3800 mm |
| z-travel |
1850 mm |
| column daylight |
Z = 1900 mm |
| column daylight |
Y = 5330 mm |
| table surface area |
4500 x 4600 mm |
| table load |
50 t |
| milling head speed |
40 - 2000 U/min |
| feeds x/y/z -stepless |
6 - 4000 mm/min |
| rapid travel x/y/z |
6000 mm/min |
| milling drive |
40 kW |
| milling spindle diameter in the forward pos. |
160 mm |
| tool taper |
Steilk. 60 |
| milling spindle quill diameter |
260 |
| Control |
Siemens 840D |
| total power requirement |
ca. 60 kW |
| weight of the machine ca. |
115 t |
| dimensions of the machine ca. |
10,0 x 5,0 x 5,7 m |
| Description |

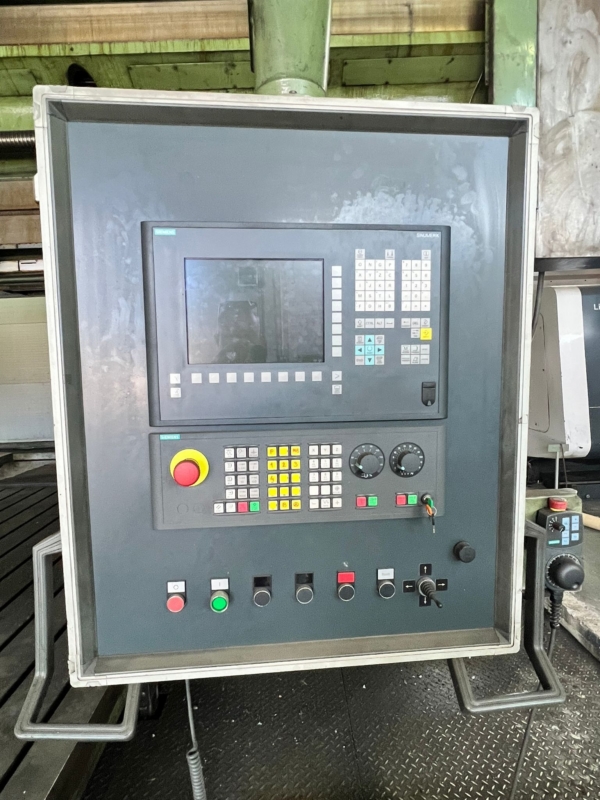

CNC-Control Siemens 840D with Handwheel
|
