| Stock-No. |
1020-20759 |
| Category |
CNC Turning- and Milling Center |
| Make |

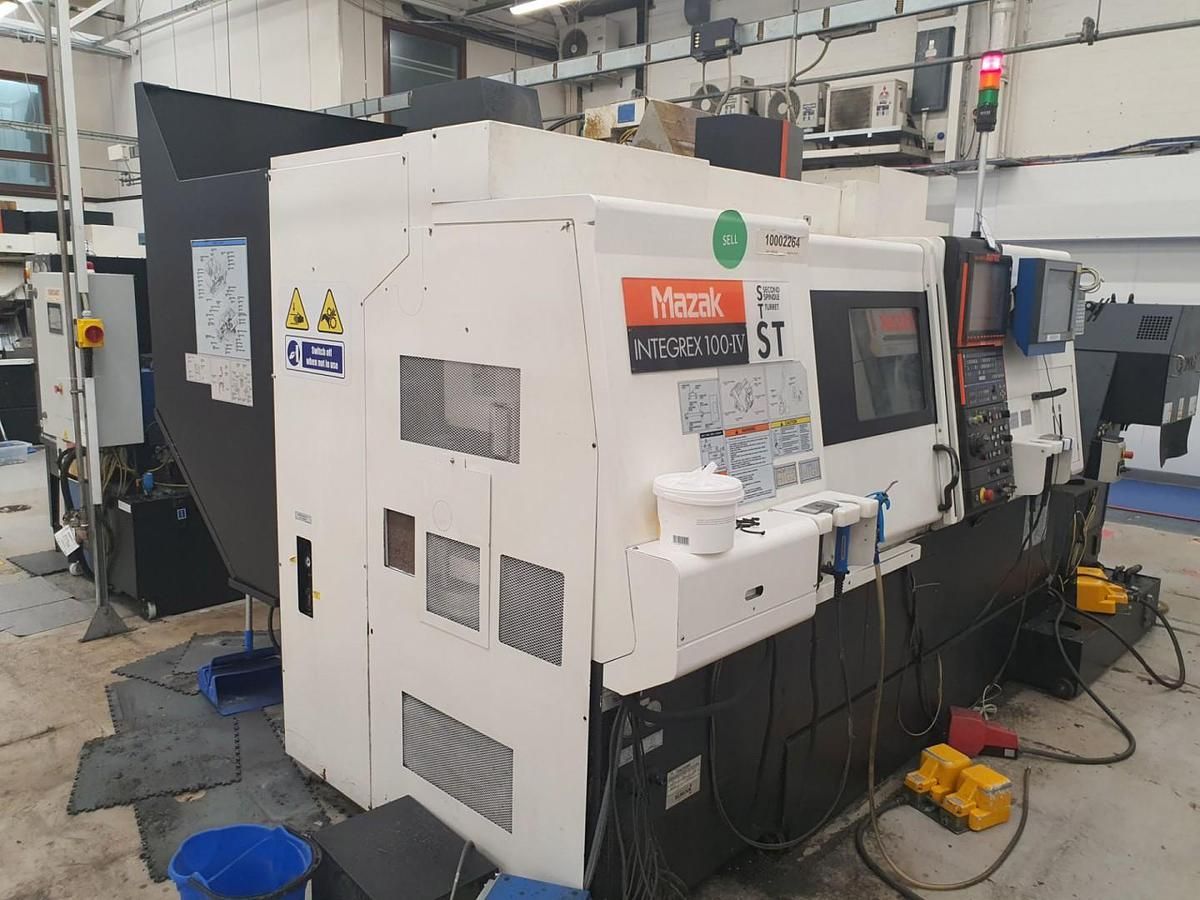

MAZAK |
| Type |
Integrex 100-IV ST |
| New in |
2012 |
| Control |

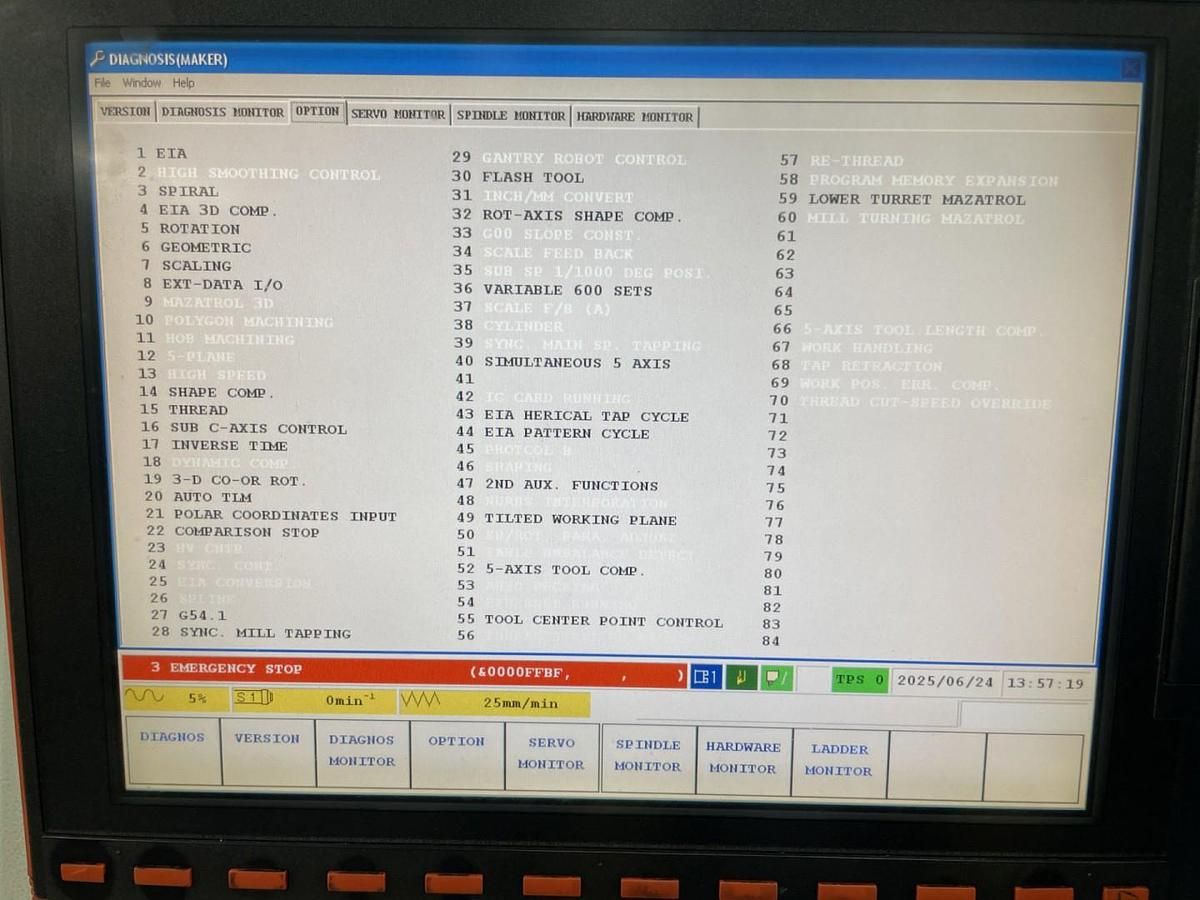

Mazatrol Matrix 2 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Japan |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| turning diameter |
545 mm |
| turning length |
753 mm |
| control |
Mazatrol Matrix 2 |
| Main Spindle: |
|
| c-axis |
0,0001 ° |
| spindle motor |
11 kW |
| spindle turning speed range |
6000 U/min |
| x-axis |
410 mm |
| z-axis |
805 mm |
| y-axis |
140 mm |
| w-axis |
903 mm |
| b-axis |
225 ° |
| bar material dia. |
61 mm |
| Rapid Travel X / Y / Z-Achse |
30/26/30 m/min |
| 2nd Spindle: |
|
| c-axis |
0,0001 ° |
| power capacity |
11 kW |
| spindle turning speed range |
5000 U/min |
| milling spindle |
|
| spindle turning speed range |
12000 U/min |
| spindle motor |
5,5 kW |
| total power requirement |
45,6 kVA |
| weight of the machine ca. |
7,7 t |
| dimensions of the machine ca. |
3,1 x 2,495 x 2,5 m |
| Description |
5-axis simultaneous machining

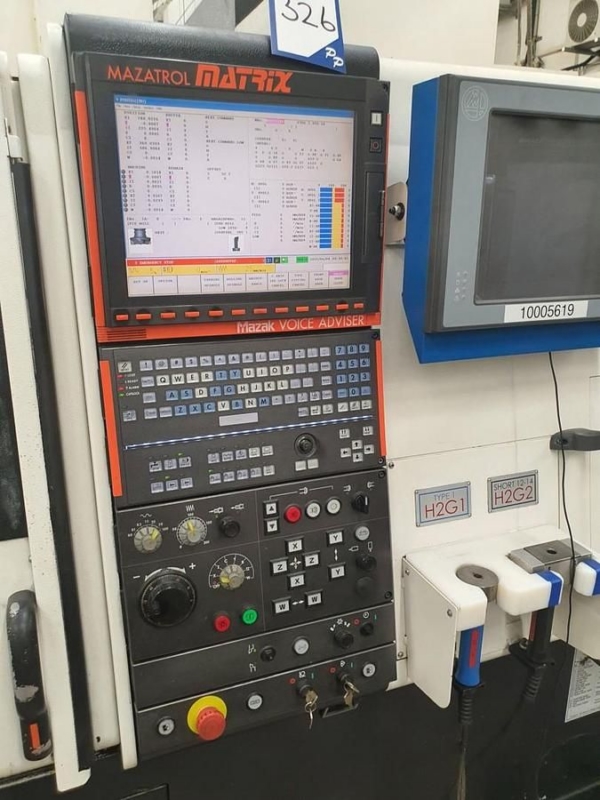

- CNC control Mazatrol Matrix 2

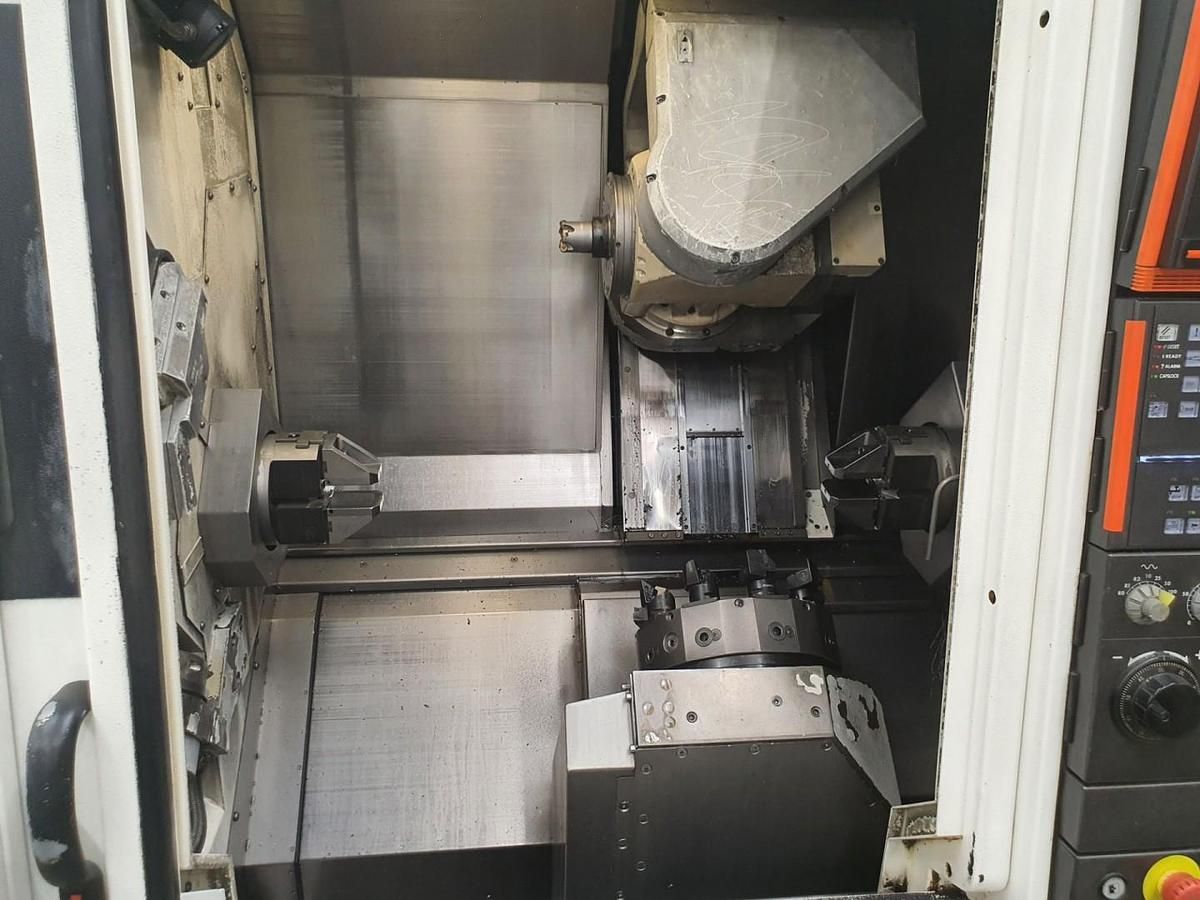

- Main & counter spindle

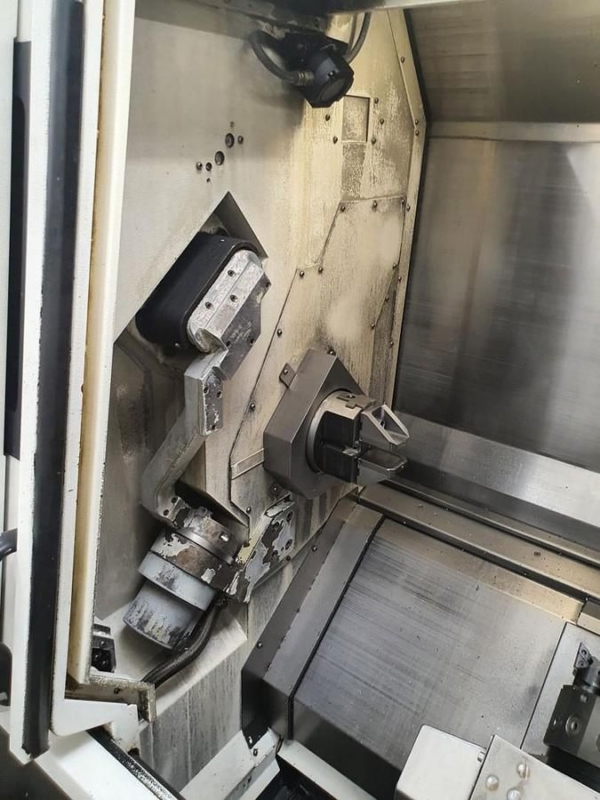

- 9-position tool turret
- Tool changer (20-fold)

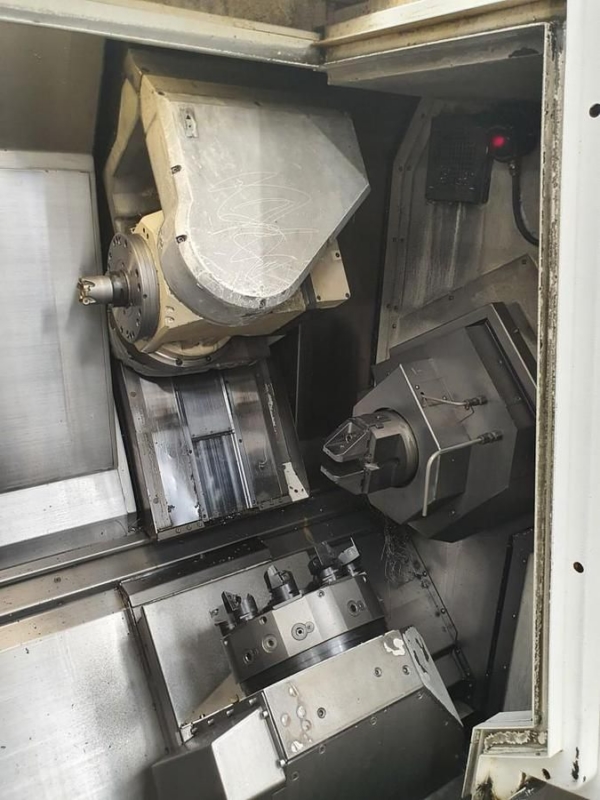

- Capto C6 milling spindle

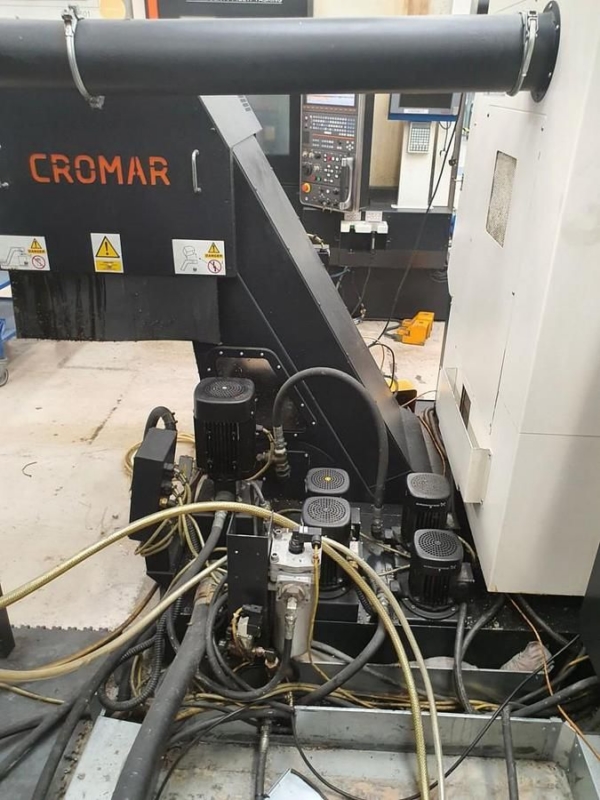

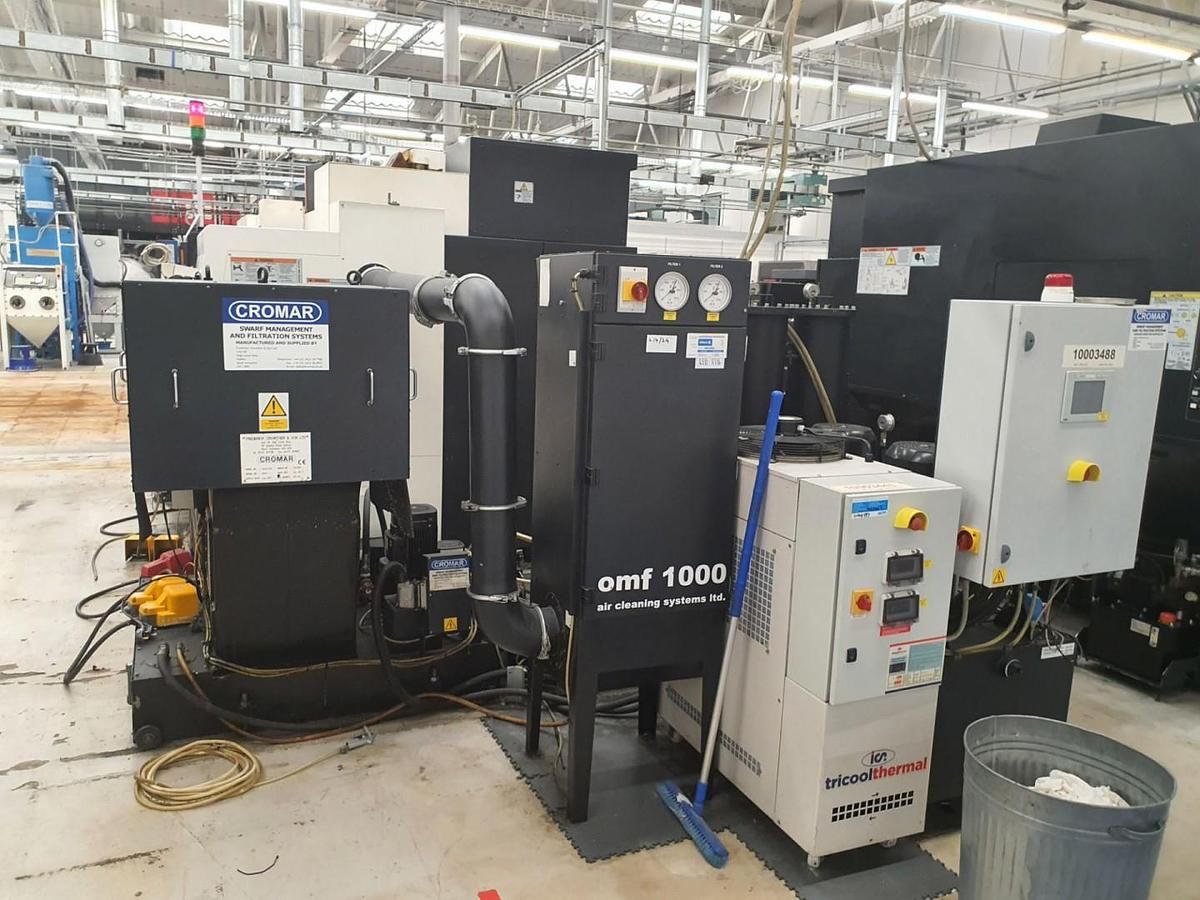

- Coolant system IKZ 20bar
- Chip conveyor
|
|
|
|
