| Stock-No. |
1020-20758 |
| Category |

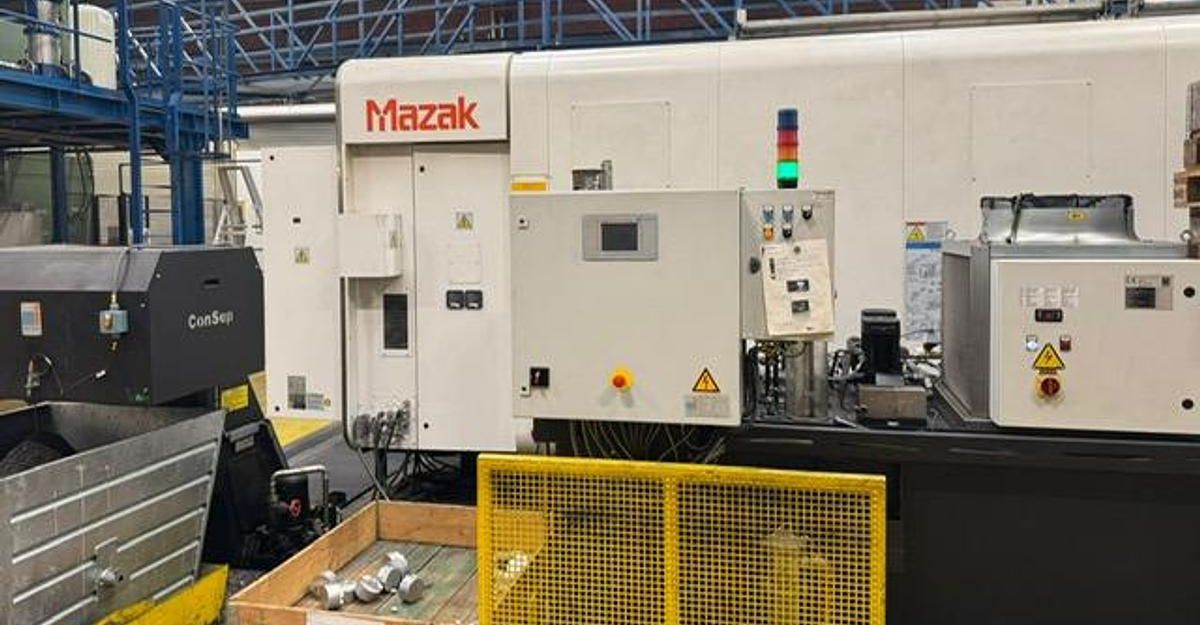

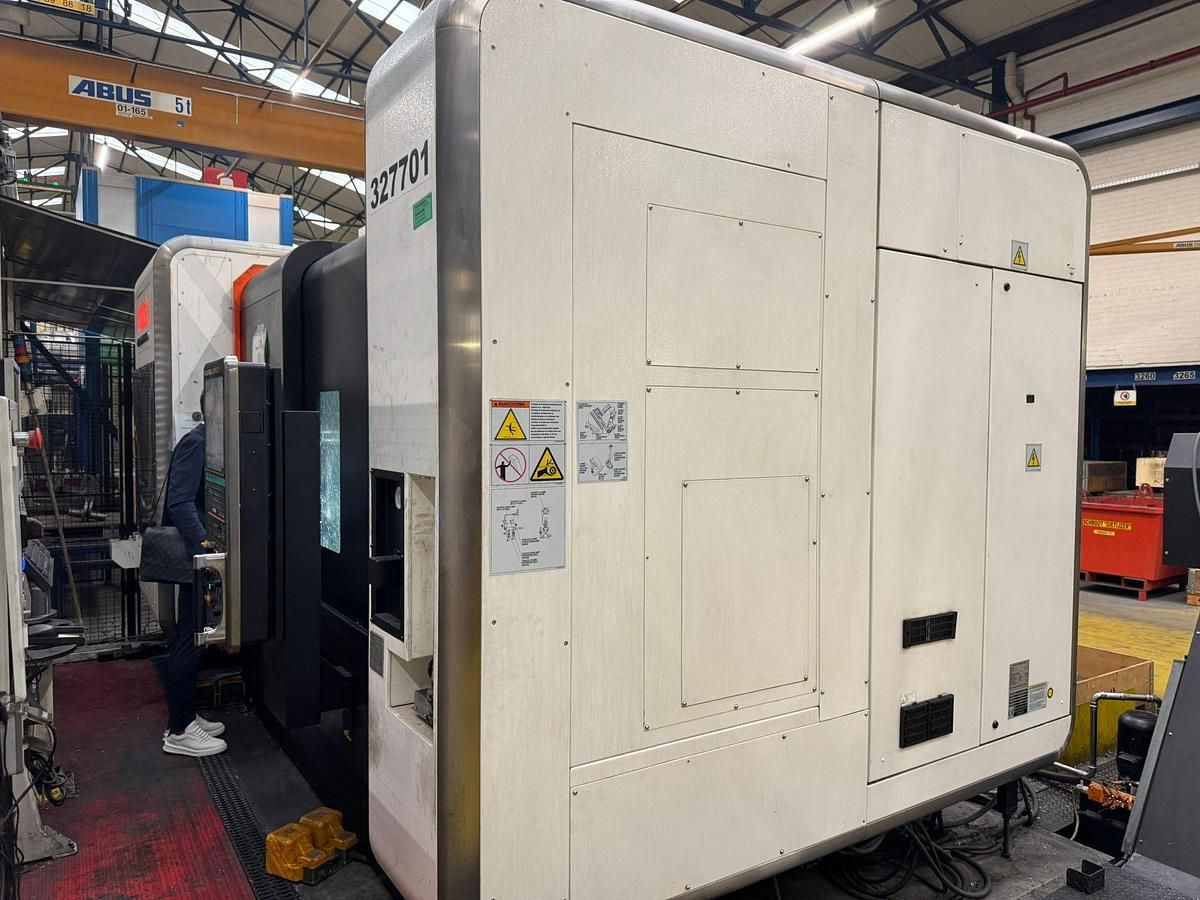

CNC Turning- and Milling Center |
| Make |
MAZAK |
| Type |
INTEGREX i-400 ST |
| New in |
2015 |

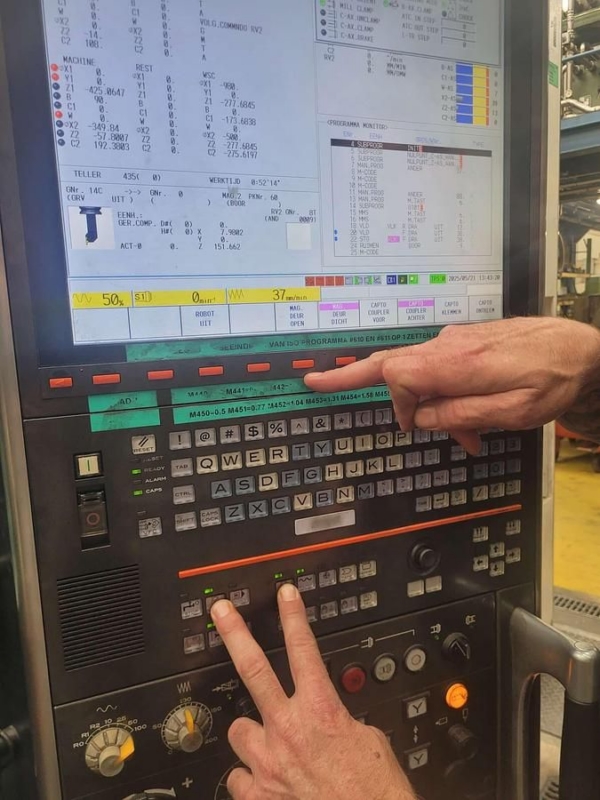

| Control |
Mazatrol Matrix 2 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Japan |
| Delivery time |
immediately or upon agreement |
| Freight basis |
Ex Site - factory |
| Price |
| turning diameter |
658 mm |
| workpiece length - max. |
1519 mm |
| control |
Mazatrol Matrix 2 |
| swing diameter |
658 mm |
| clamping range for bar work |
102 mm |
| workpiece weight |
1000 kg |
| ------------ MAIN SPINDLE ------------ |
|
| turning speeds |
35 - 3300 U/min |
| passage of spindle |
112 mm |
| c-axis |
0,0001 |
| spindle motor |
30/22 kW |
| spindle nose |
A2-8 |
| milling spindle |
|
| spindle motor |
22 / 15 kW |
| milling head speed |
12000 U/min |
| b-axis |
-30 / +210 ° |
| travel -x axis |
615 mm |
| travel -y axis |
260 mm |
| travel -z axis |
1585 mm |
| rapid travel x/y/z |
50 / 40 / 50 m/min |
| 2nd Spindle: |
|
| spindle turning speed range |
4000 U/min |
| spindle motor |
26 / 22 kW |
| spindle nose |
A2-8 |
| spindle passage |
91 mm |
| w-axis |
1539 mm |
| total power requirement |
108,53 kVA |
| weight of the machine ca. |
18 t |
| dimensions of the machine ca. |
5,2 x 2,8 x 2,75 m |
| Description |
- CNC control Mazatrol Matrix 2
- Main & counter spindle

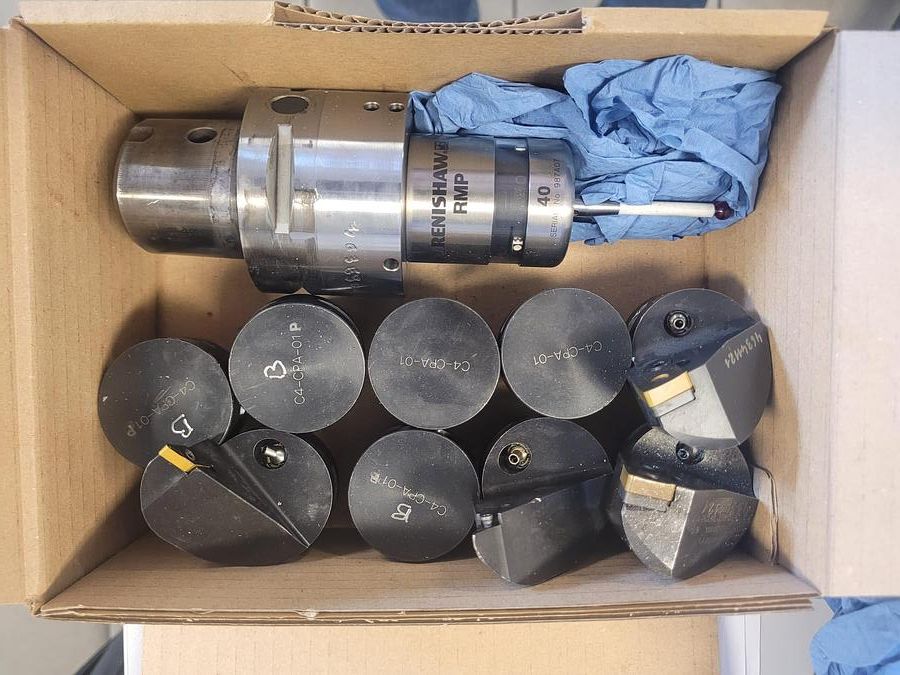

- Milling spindle (Capto C6)
- 36-position tool changer
- IKZ 70 bar

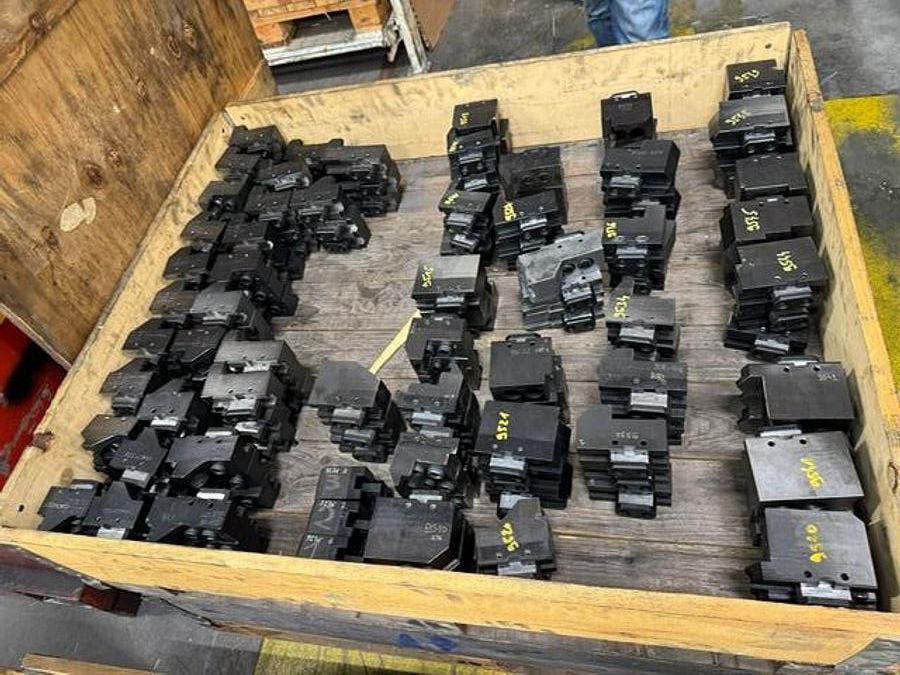

- Tool turret 9-position (25mm / dia 32mm)
- Renishaw plug gauge
- Chip conveyor
|
