| Stock-No. |
1020-20757 |
| Category |
CNC Turning- and Milling Center |
| Make |
MAZAK |
| Type |

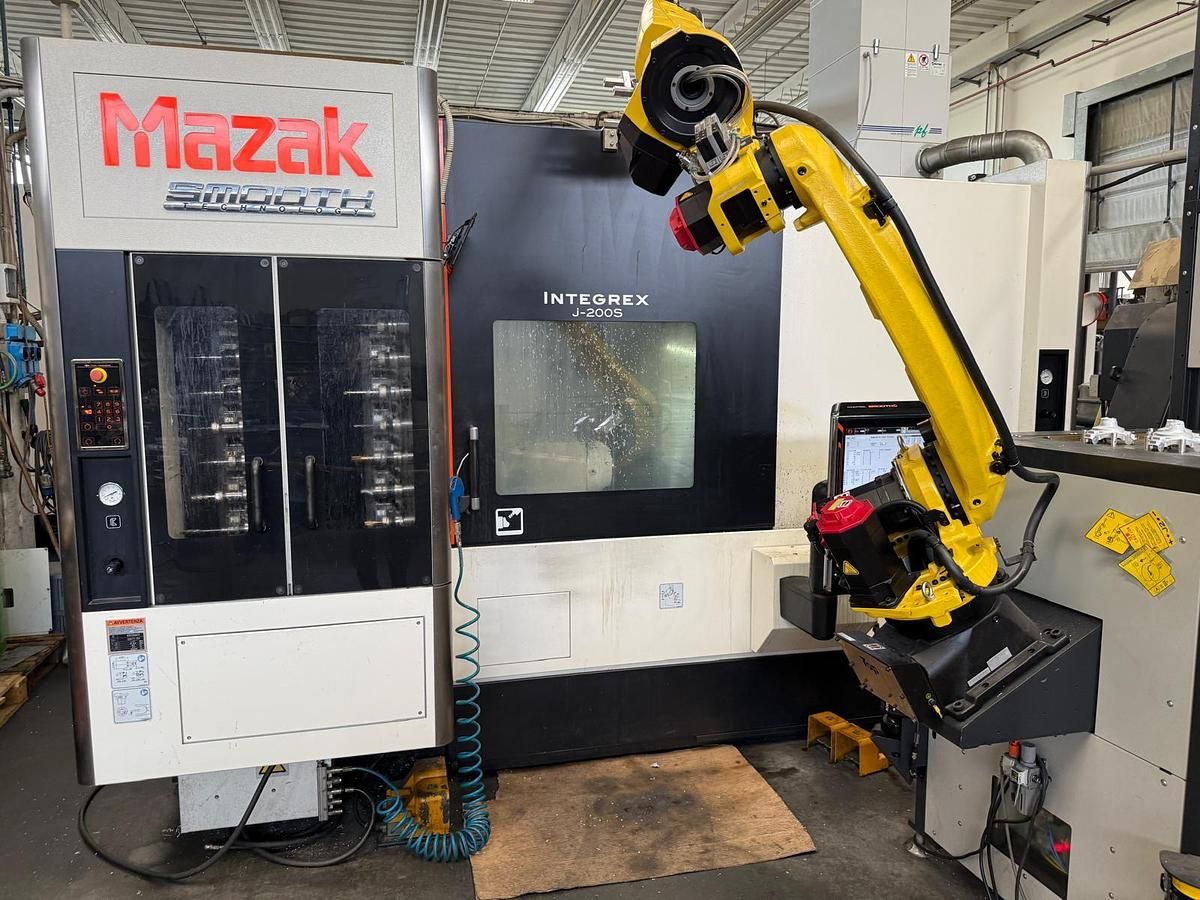

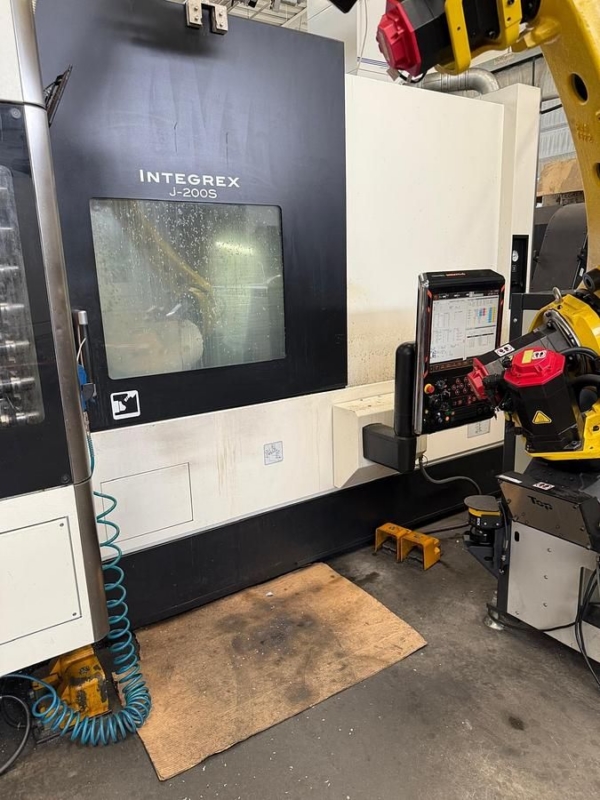

INTEGREX J-200 S |
| New in |
2017 |
| Control |
Mazatrol Smooth G |
| Location |
Werksstandort, unter Strom |
| Origin |
Japan |
| Delivery time |
Novembre 2025 |
| Freight basis |
Ex Site - factory |
| Price |
| turning diameter |
500 mm |
| turning length |
1000 mm |
| control |
Mazatrol Smooth G |
| number of spindle speeds |
5000 U/min |
| spindle motor |
11/7,5 kW |
| axis stroke (X,Y,Z) |
450, 200, 960 mm |
| travel -w axis |
950 mm |
| b-axis |
-30 / +210 ° |
| c-axis |
360, 0,0001 ° |
| bar material dia. |
65 mm |
| spindle bore |
76 mm |
| milling spindle |
|
| spindle turning speed range |
12000 U/min |
| spindle motor |
7,5 / 5,5 kW |
| tool taper |
HSK A 63 |
| rapid travel x/y/z |
40000 mm/min |
| weight of the machine ca. |
9.5 t |
| dimensions of the machine ca. |
3900 x 2600 x 2400 mm |
| Description |
equipped with:
- CNC control Mazak Smooth G
- Main and counter spindle
- milling spindle
- Y-axis
- Tool holder: HSK A 63
- Tool magazine: 72 places
- Tool Eye
- Mazak monitoring system B (RMP 60)
- Coolant and compressed air (1.5 MPA)

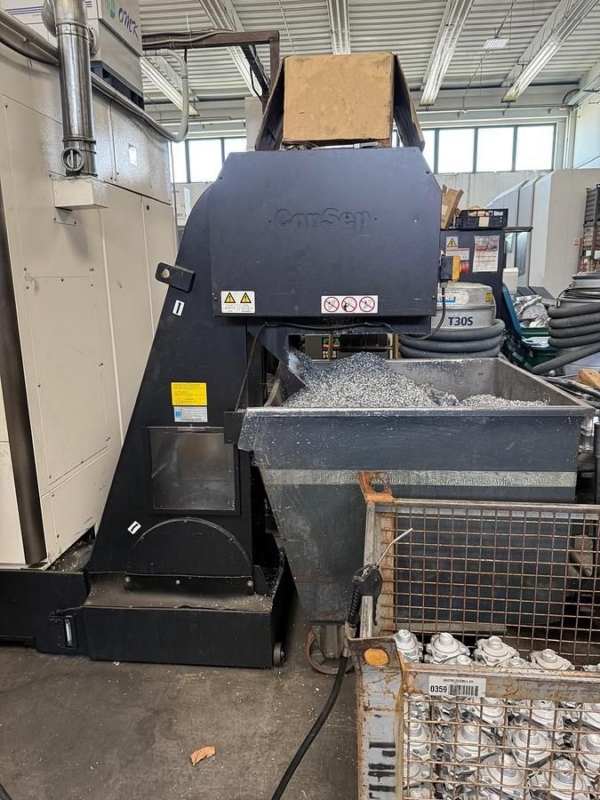

- Chip conveyor
|
|
|
|
