| Stock-No. |
1020-20756 |
| Category |

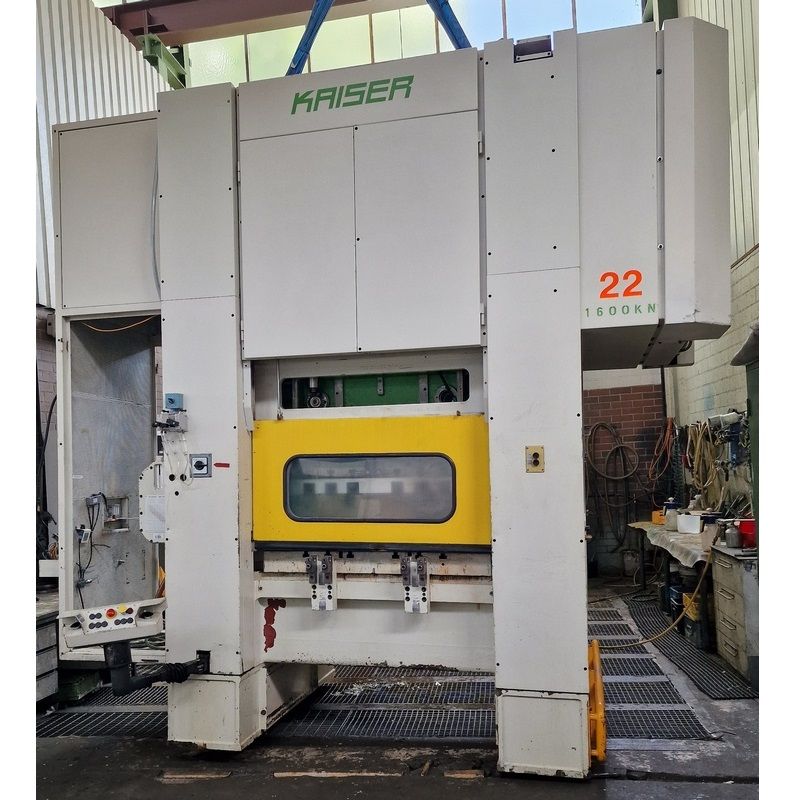

double-sided high speed press |
| Make |
KAISER |
| Type |
KSTU 1600 12,5-3PSR |
| New in |
1998 |
| Control |
Siemens S7-1500F / Touch |
| Location |
|
| Origin |
Germany |
| Delivery time |
according agreement |
| Freight basis |
ex location |
| Price |
| pressure |
160 t |
| stroke |
30 - 90 mm |
| no. of strokes |
50 - 300 /min |
| distance between columns |
1270 mm |
| dayligth (stroke and adjustment up) |
590 mm |
| column travel -side |
440 mm |
| table surface area |
1250 x 900 mm |
| hole in the table |
950 x 300 mm |
| table height over floor |
mm |
| ram surface |
1250 x 800 mm |
| ram adjustment |
100 mm |
| material width |
200 mm |
| material thickness |
- 6,0 mm |
| feed length |
0 - 120 mm |
| power requirement |
64,5 kW |
| Control |
Siemens S7-1500F / Touch |
| Weight |
21,00 t |
| dimensions of the machine ca. |
3,0 x 2,2 x 3,9 mxmxm |
| Description |
Approved for automatic operation according to CE standard

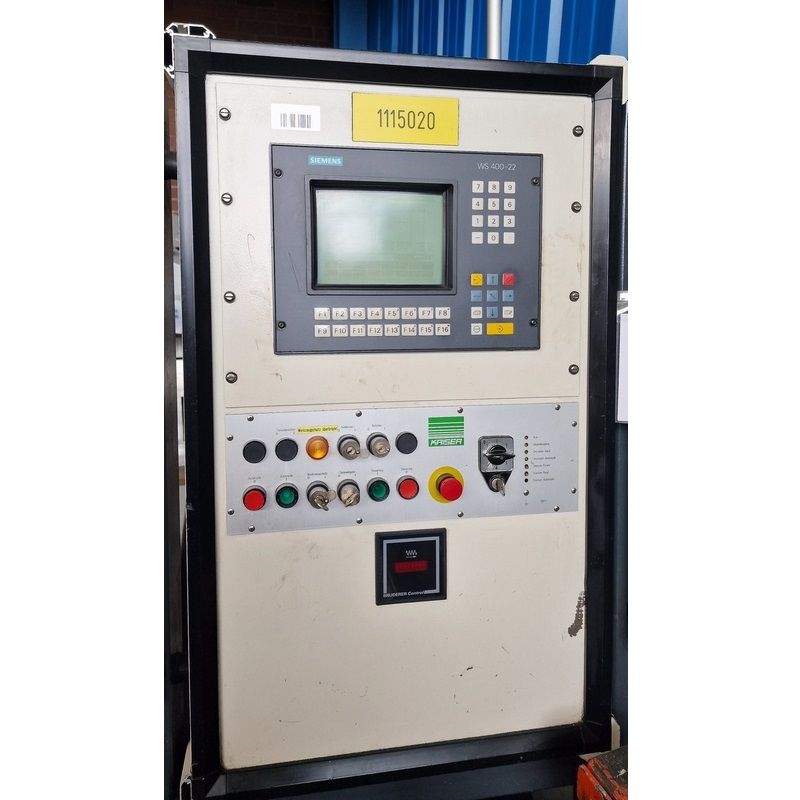

- With new Siemens S7-1500F control and safety electronics
-- Convenient operation via touch panel
- Infinitely variable direct current drive
- Hydraulic clutch/brake combination (made by Desch)
- Automatic stroke adjustment
- motorized ram adjustment
- fixed table
- circulating oil lubrication

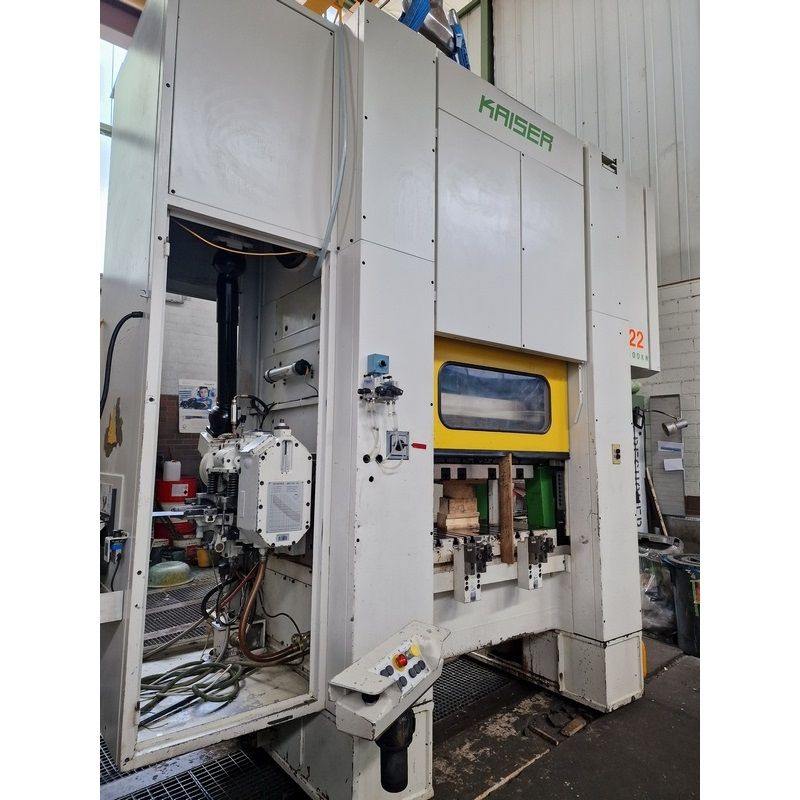

- mechanical roller feed Bruderer BBV 205/120 with drive via main shaft/
PTO shaft of the press
- Cantilever consoles Guethle CK 01/0800
|
|
|
|
