| Stock-No. |
1020-20755 |
| Category |
double-sided high speed press |
| Make |
HENSEL |
| Type |
EBU HK 130/1600 P2 |
| New in |
1997 |
| Control |
Siemens S7-1500F / Touch |
| Location |
|
| Origin |
Germany |
| Delivery time |
according agreement |
| Freight basis |
ex location |
| Price |
| pressure |
130 t |
| distance between columns |
1600 mm |
| stroke |
8 - 140 mm |
| no. of strokes |
50 - 200 Hub/min |
| dayligth (stroke and adjustment up) |
520 mm |
| column travel -side |
610 mm |
| table surface area |
1600 x 880 mm |
| hole in the table |
1000 x 350 mm |
| table height over floor |
950 mm |
| ram surface |
1600 x 880 mm |
| power requirement |
24,2 kW |
| ram adjustment |
100 mm |
| Control |
Siemens S7-1500F / Touch |
| weight of the machine ca. |
28,00 t |
| required space |
4,3 x 2,2 x 3,8 m |
| Description |
Approved for automatic operation in accordance with the German
accident prevention regulations (UVV)

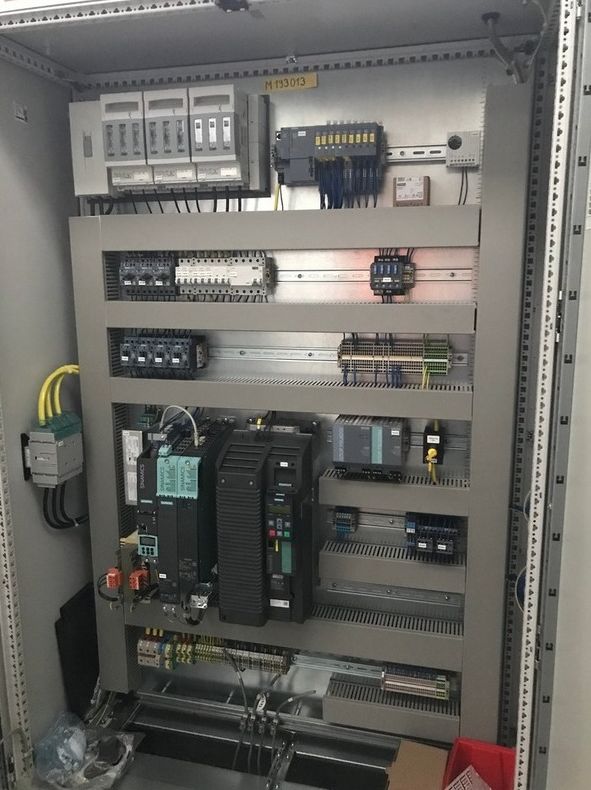

2025 new control and safety electronics - Siemens S7-1500F,
-- Convenient operation via touch panel
- infinitely variable drive,
- hydraulic clutch/brake combination
- hydraulic overload protection in the ram
- Pneumatic ram weight compensation
- motorized ram adjustment
- Automatic stroke adjustment
- 8-fold roller guide
- Electronic roller feed (Hensel, EVX 500) with hydraulic
intermediate lifting
|
|
|
|
