| Stock-No. |
1020-20754 |
| Category |

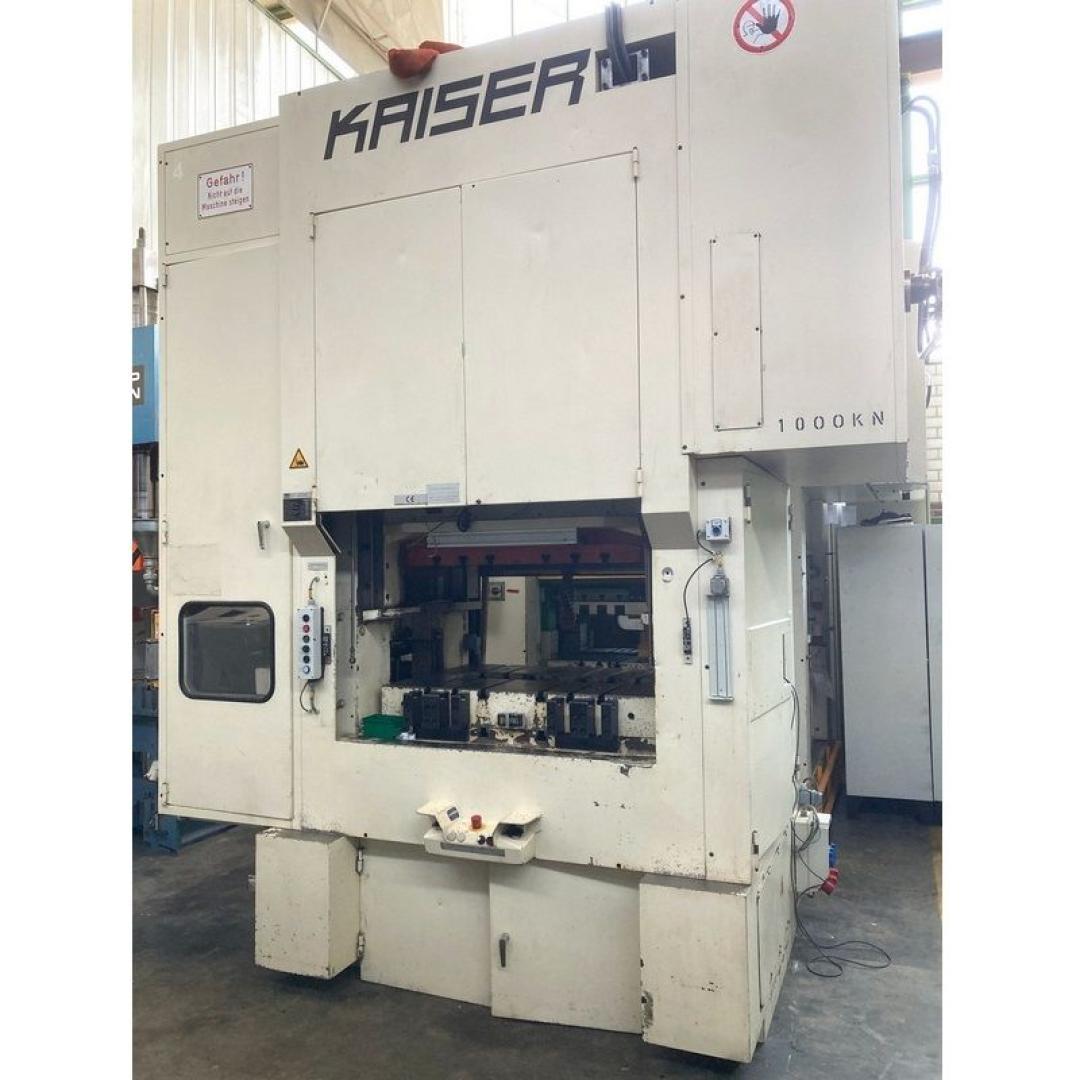

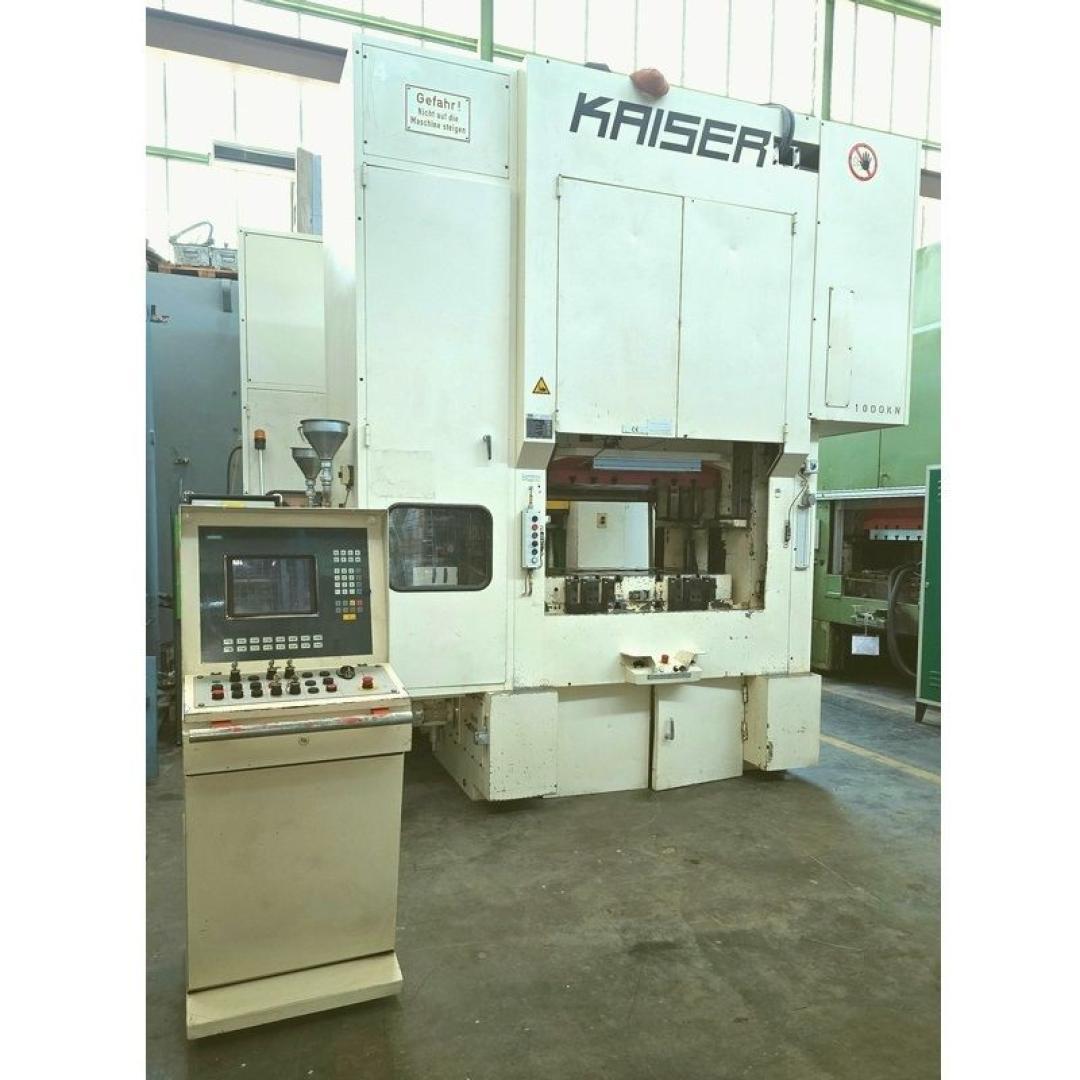

double-sided high speed press |
| Make |
KAISER |
| Type |
KSTU 1000-11 D |
| New in |
1995 |
| Control |
Siemens S7-1500F / Touch |
| Location |
|
| Origin |
Germany |
| Delivery time |
according agreement |
| Freight basis |
ex location |
| Price |
| pressure |
100 t |
| stroke |
20 - 120 mm |
| no. of strokes |
40 - 240 /min |
| distance between columns |
1300 mm |
| dayligth (stroke and adjustment up) |
670 mm |
| column travel -side |
400 mm |
| table surface area |
1200 x 800 mm |
| hole in the table |
900 x 200 mm |
| table height over floor |
1150 mm |
| ram surface |
1130 x 650 mm |
| ram adjustment |
80 mm |
| material width |
250 mm |
| material thickness |
0,3 - 3,0 mm |
| material cross-cut |
750 mm² |
| feed length |
1 - 9999,9 mm |
| power requirement |
22,0 kW |
| Weight |
16,0 t |
| dimensions (WxDxH) |
3,7 x 2,5 x 3,7 m |
| Control |
Siemens S7-1500F / Touch |
| height over floor |
3,7 m |
| Description |
Approved for automatic operation according to CE standard

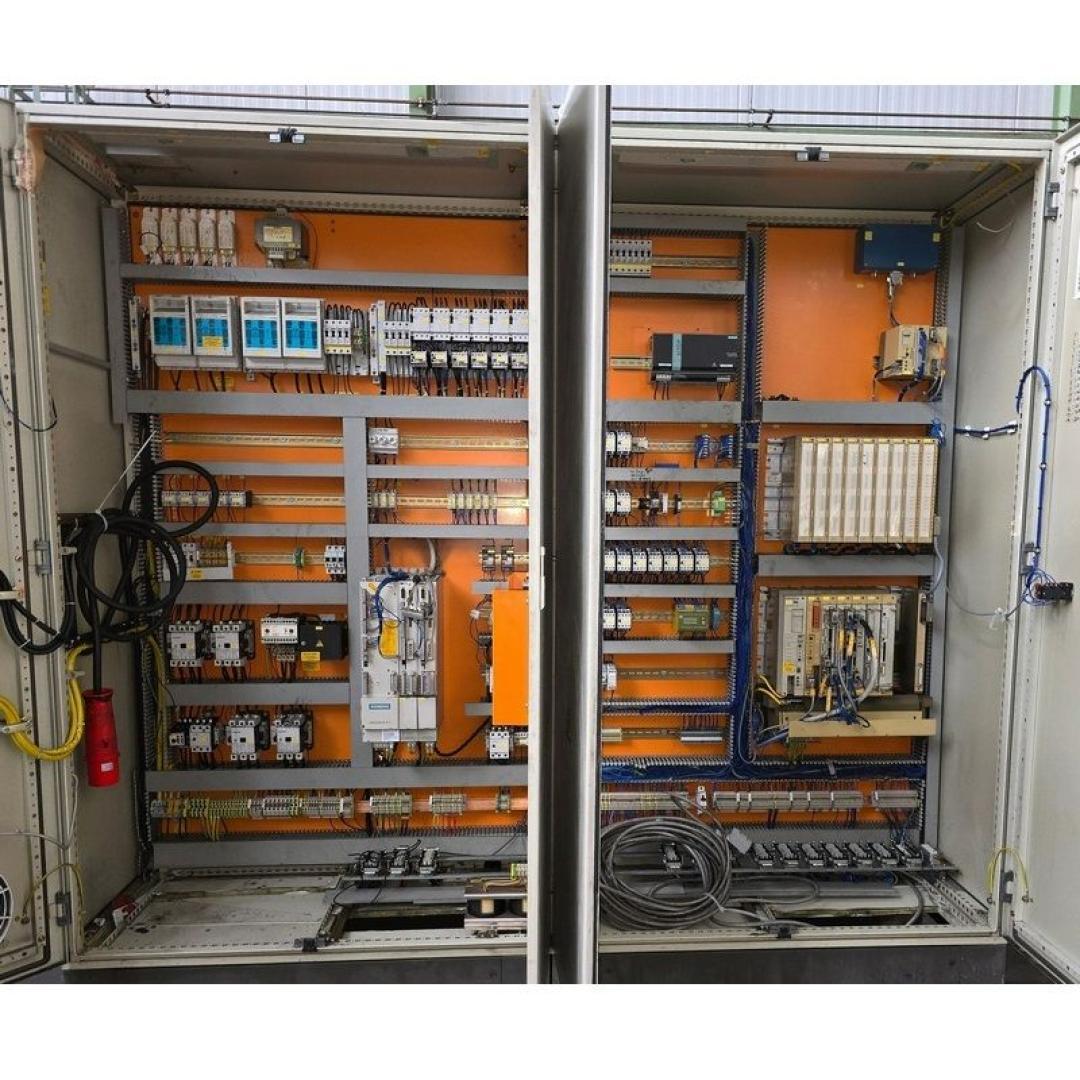

- WITH new control and safety electronics - Siemens S7-1500F,

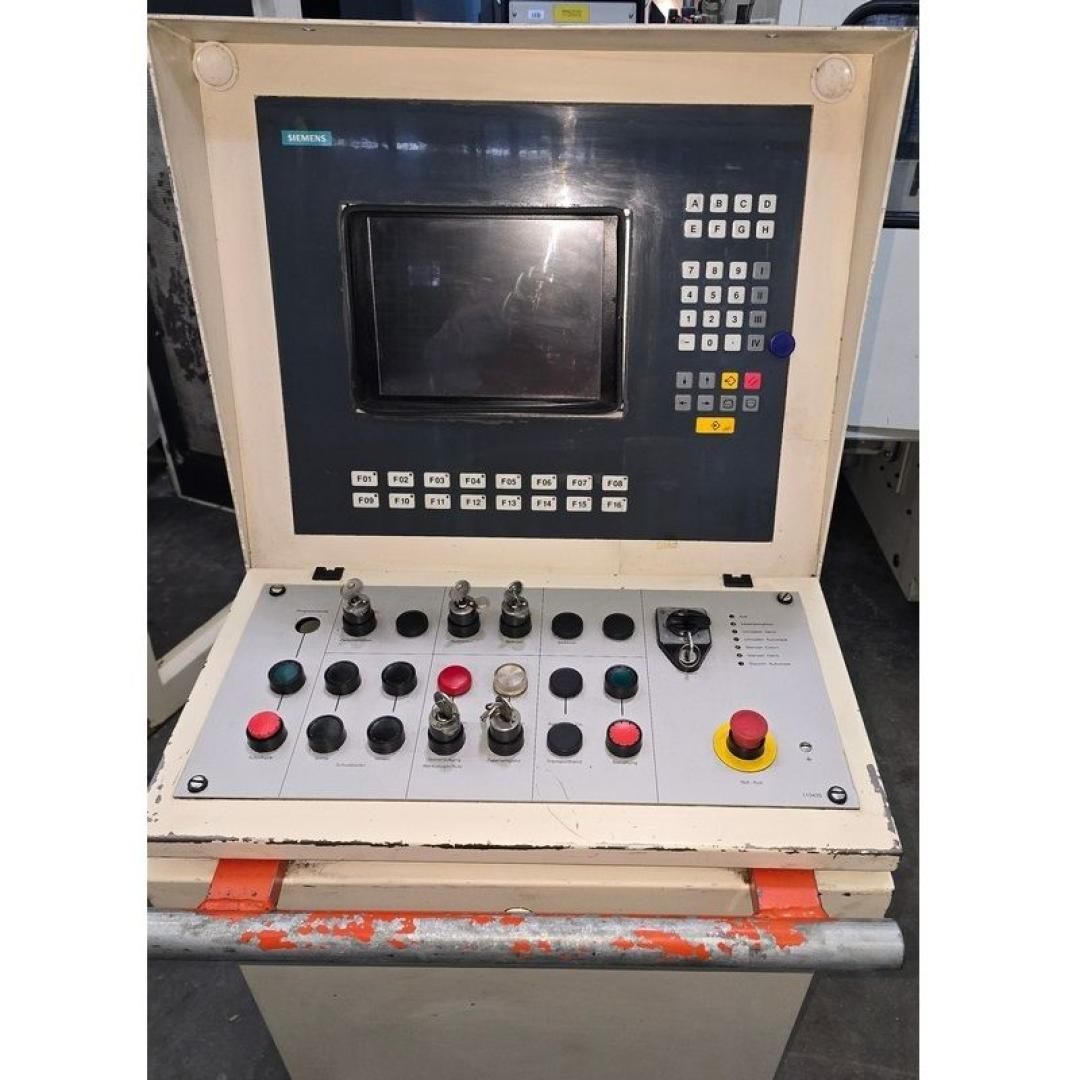

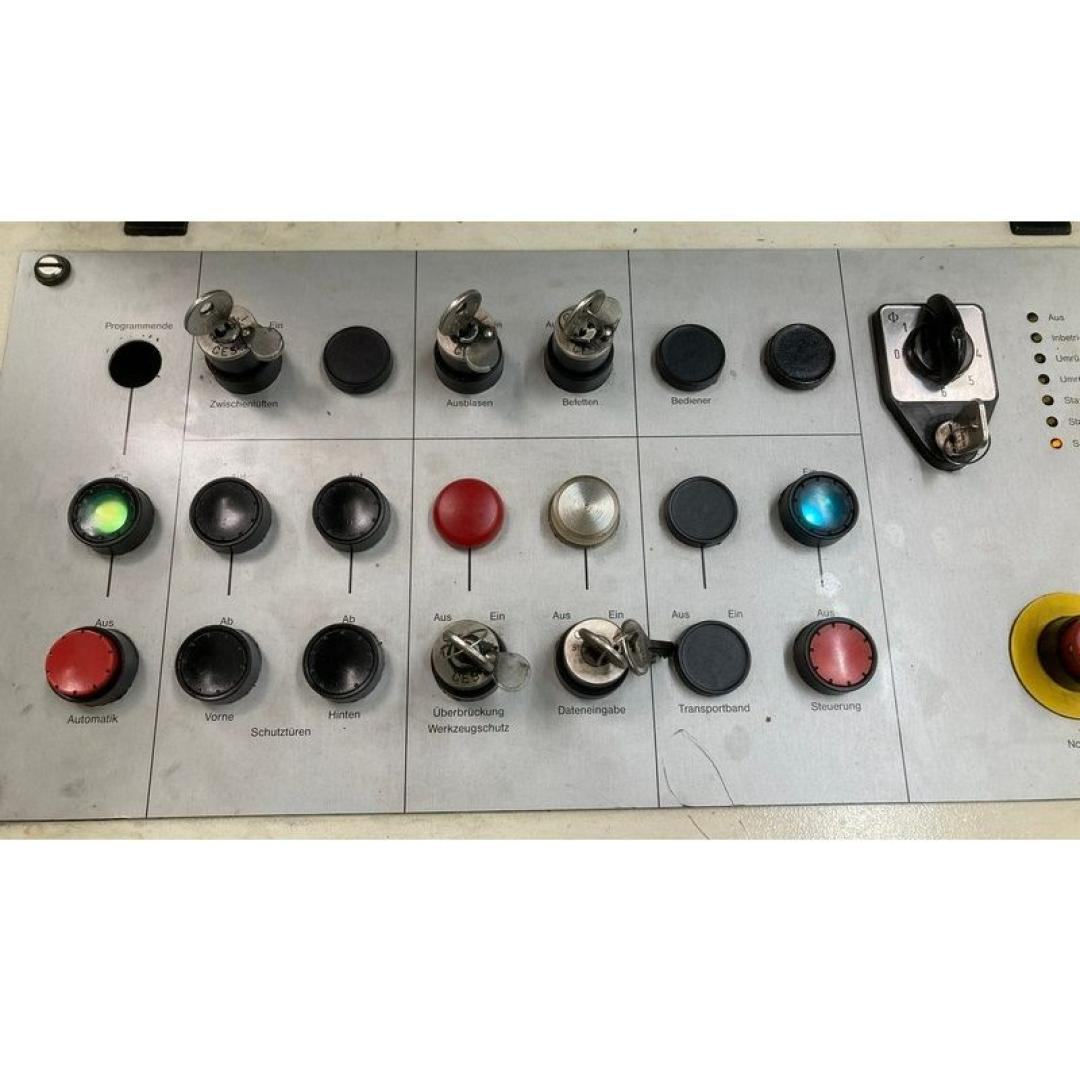

-- Convenient operation via touch panel
-- Control system design in accordance with DIN EN ISO 16092-1/-2/-3
- New main drive motor and new servo motor for the feed
- Mechanical partial overhaul
- Infinitely variable drive (PIV gearbox)
- pneumatic clutch/brake combination (Ortlinghaus)
- electronic press force monitoring (two-channel)
- Automatic stroke adjustment
- motorized ram adjustment

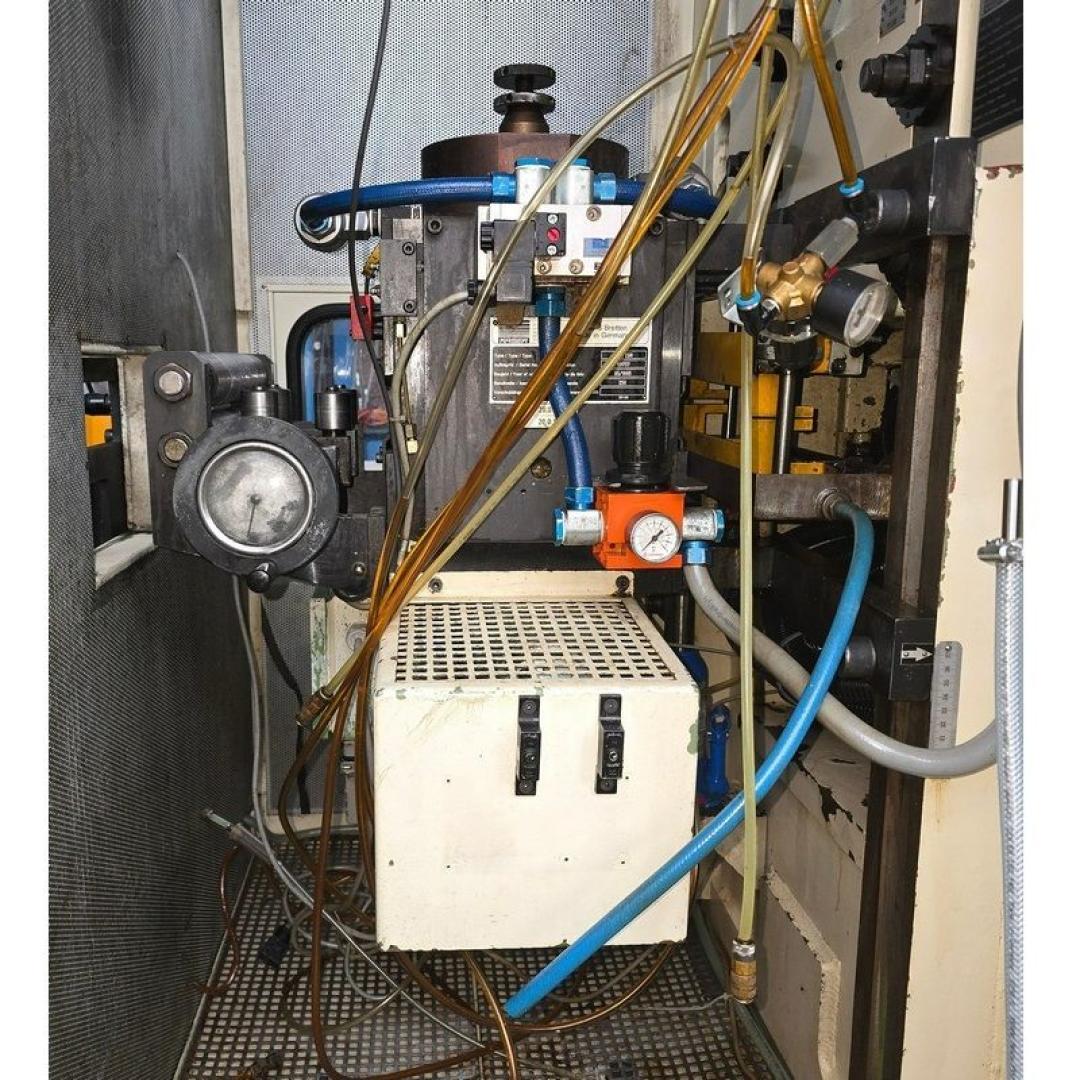

- Pneumatic ram weight compensation
- motorized circulating oil lubrication
- electric roller feed, Kaiser make, type KWV 250
|
|
|
|
