| Stock-No. |
1020-20750 |
| Category |
double-sided high speed press |
| Make |
ERFURT |
| Type |
PE4-HS630FS/E |
| New in |
1997 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
as per agreement |
| Freight basis |
ex place |
| Price |
| pressure |
0630 t |
| stroke |
300 mm |
| no. of strokes |
10- 75 Hub/min |
| table-size |
3600 x 2200 mm |
| passage width |
4000 mm |
| ram surface |
3600 x 2200 mm |
| column travel -side |
2000 mm |
| ram adjustment |
150 mm |
| shut height (stroke down, adjustm. up) |
1000 mm |
| voltage |
400 V |
| height over floor |
7600 mm |
| Depth of Press under floor |
2500 mm |
| total power requirement |
160 kW |
| weight of the machine ca. |
225 t |
| dimensions of the machine ca. |
750 m² |
| Description |

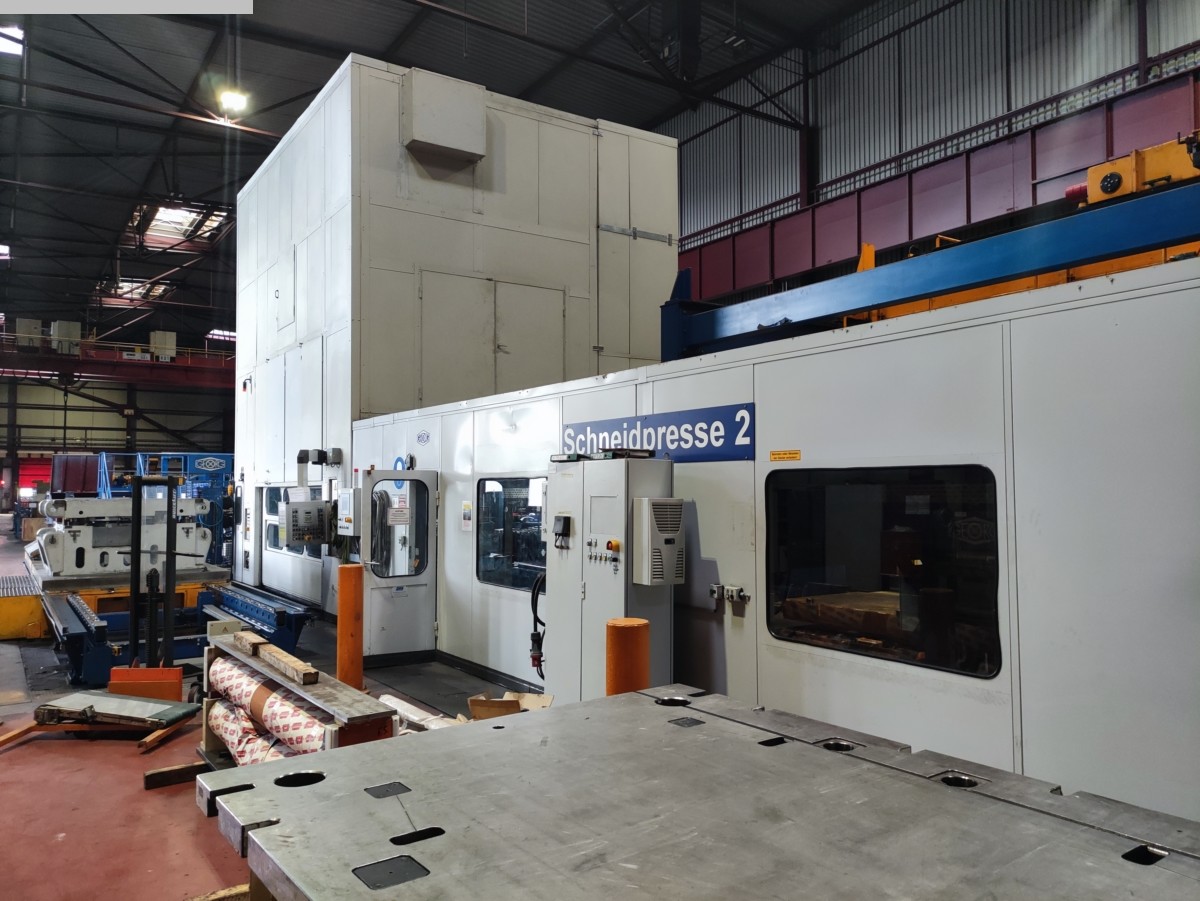

Complete blank punching line with uncoiling/feeding line and destacking line.
Machine suitable for strip width 300 - 1600 mm and strip thickness 0.5 - 3 mm.

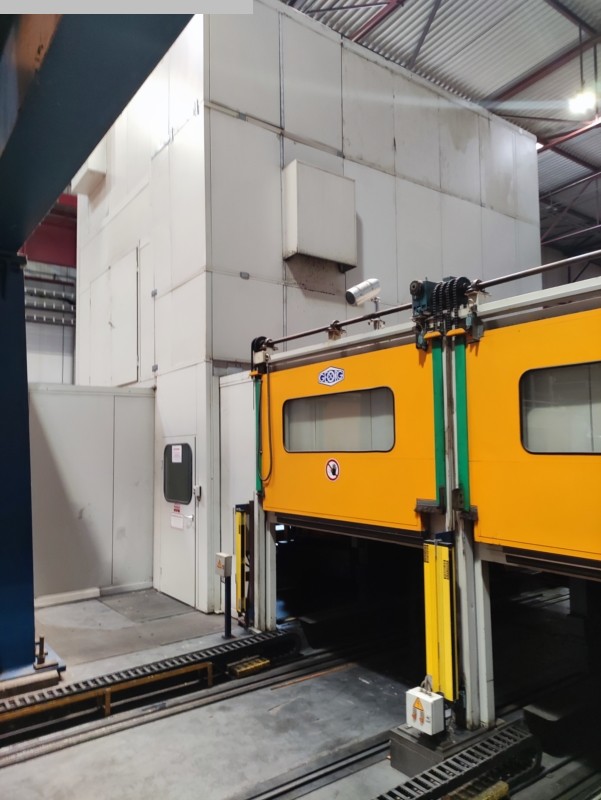

Machine has two sliding tables that change at the front.

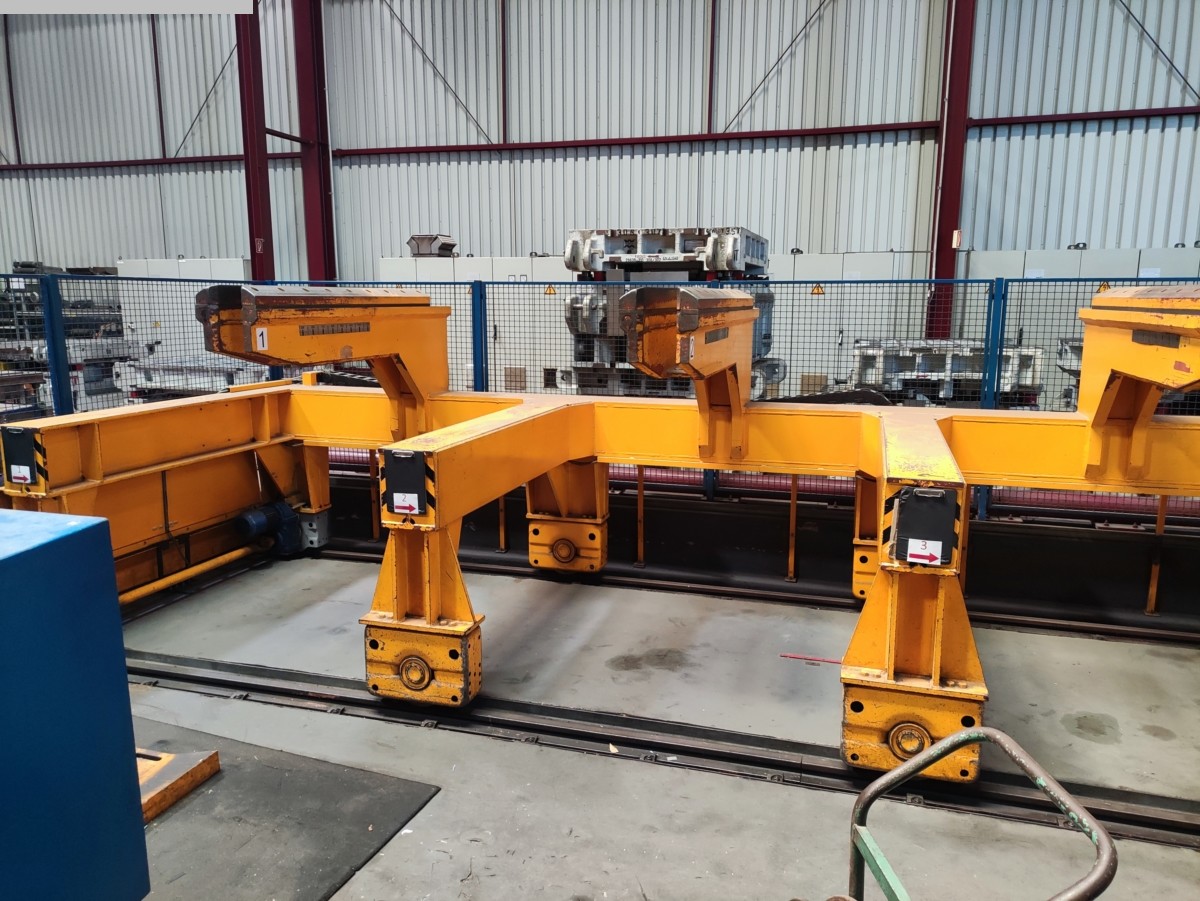

The destacking unit with two pallets is located at the side. Stacking also
takes place to the rear
with
- 2 pallets
- 3-fold coil loading 25 tons each

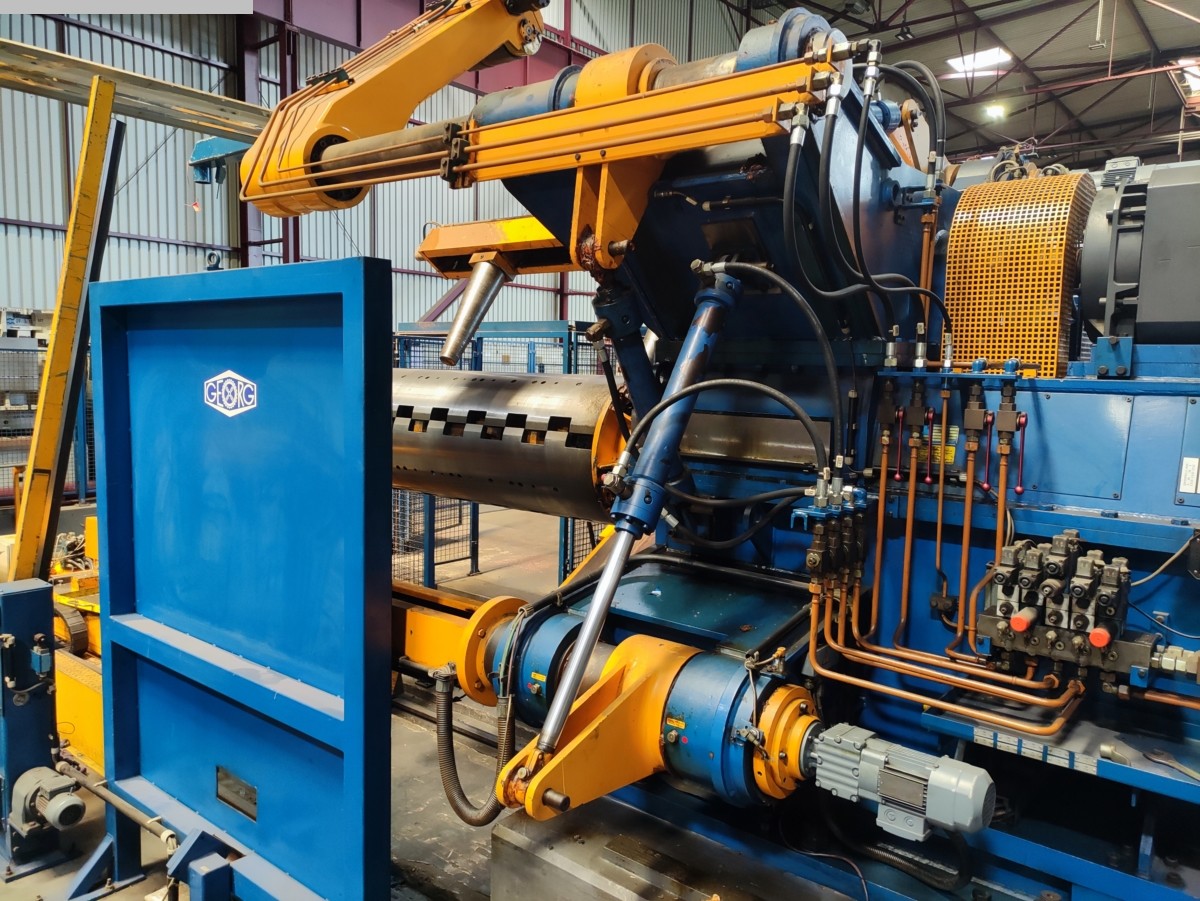

- Decoiler Schnutz,
- coil infeed

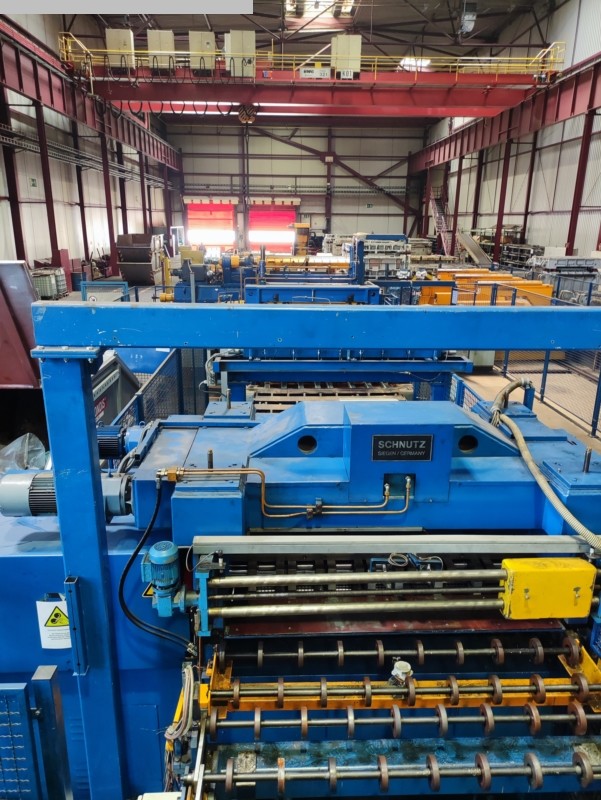

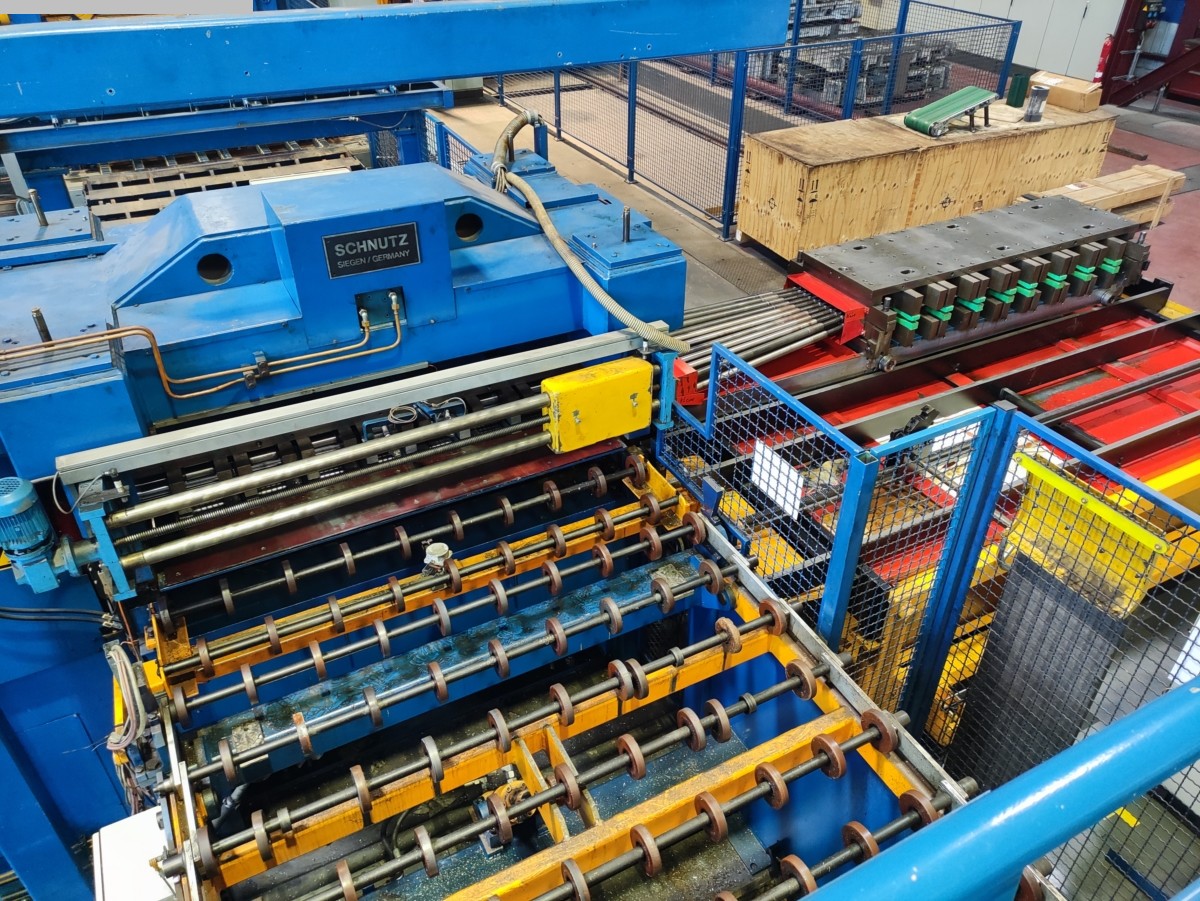

- straightener and roll feed.
