| Stock-No. |
1020-20747 |
| Category |
Vertical Turret Lathe - Double Column |
| Make |
TITAN |
| Type |
SC 32 CNC |
| New in |
2020 reb |
| Control |
Siemens 840Dsl |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Romania |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |

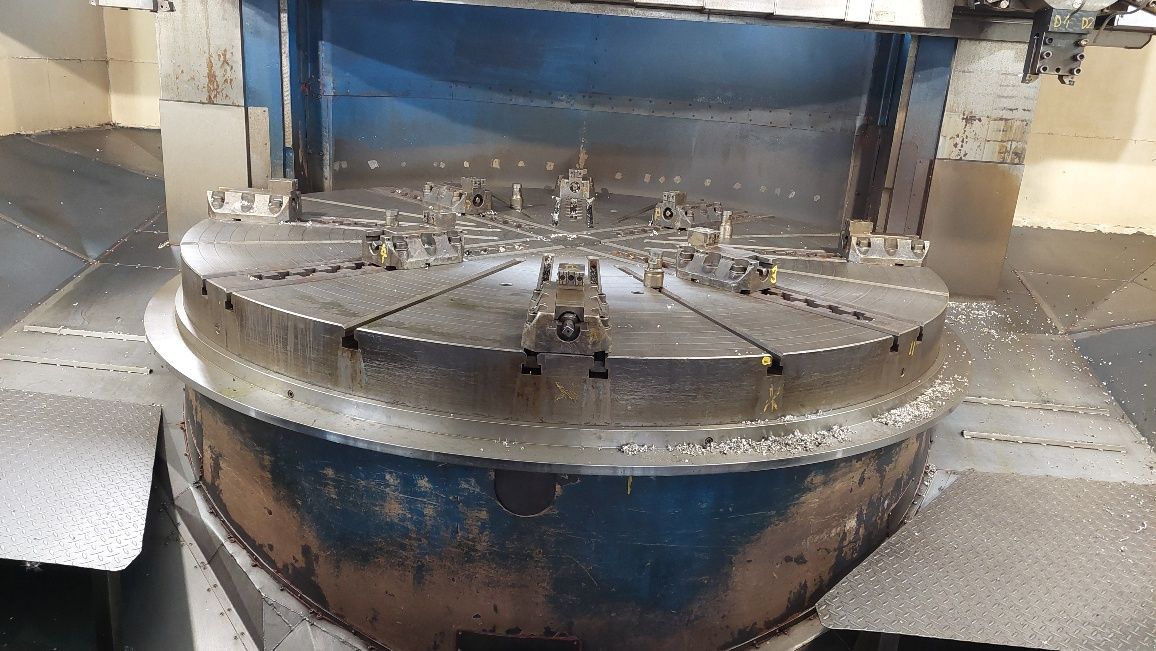

| faceplate diameter |
3000 mm |
| swing diameter |
3300 mm |
| turning height |
2260 mm |
| drilling depth in one stroke |
1150 mm |

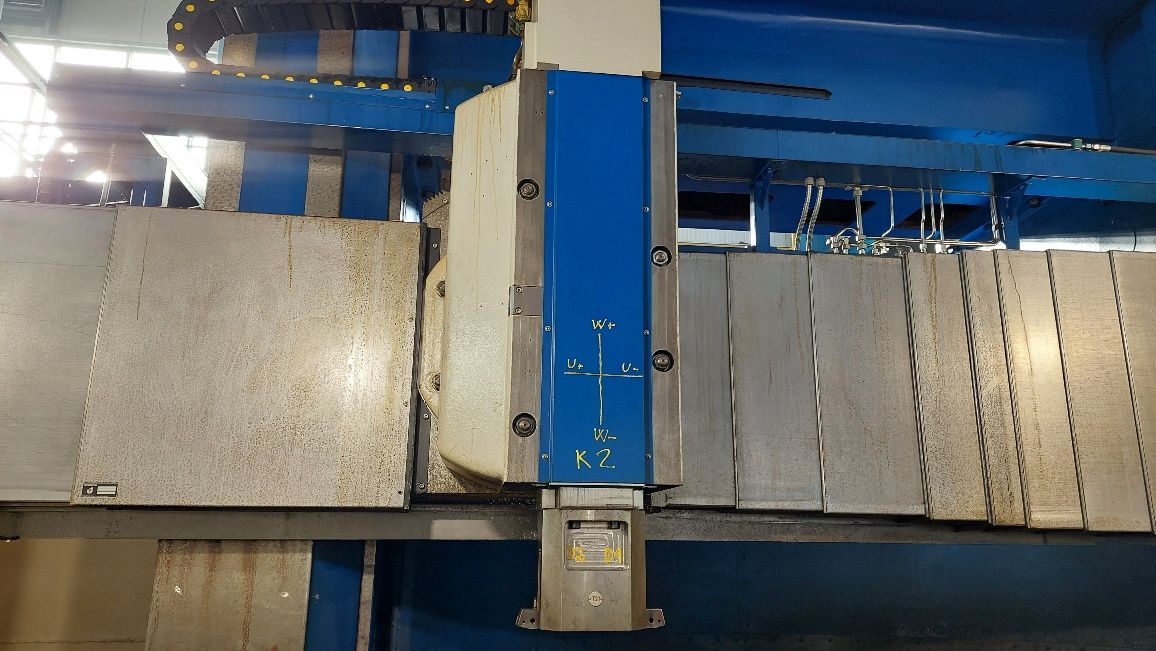

| ram - range of adjustment |
1700 mm |
| distance face plate/tool carrier |
2260 mm |
| vertical adjustment of the crossrail |
2100 mm |
| workpiece weight |
18 t |
| speeds |
1,02-92 U/min |
| feeds |
0,05 - 5 mm/U |
| rapid traverse |
2500 mm/min |
| main drive |
55 kW |
| ram swivable +/- |
35 ° |
| Control |
Siemens 840Dsl |
| total power requirement |
100 kVA |
| dimensions of the machine ca. |
5,6 x 5,3 x 5,4 m |
| weight of the machine ca. |
47,5 t |
| Description |
Overhauled and modernized in 2020 with new electrics, CNC control,
Siemens drives etc.
equipped with:

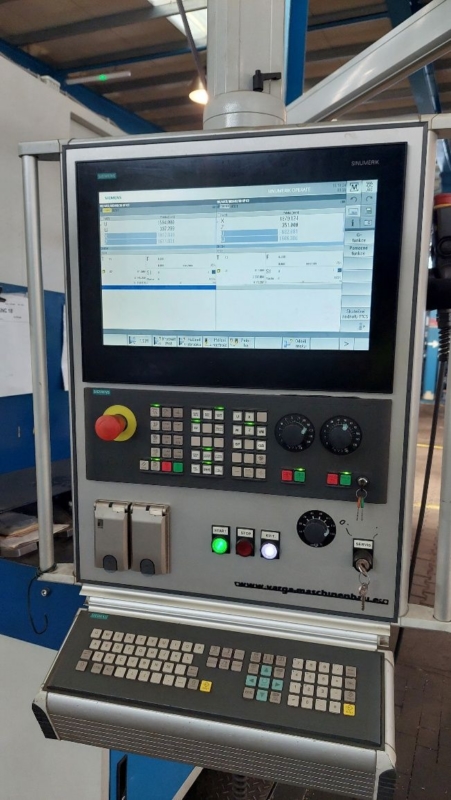

- CNC control Siemens 840Dsl

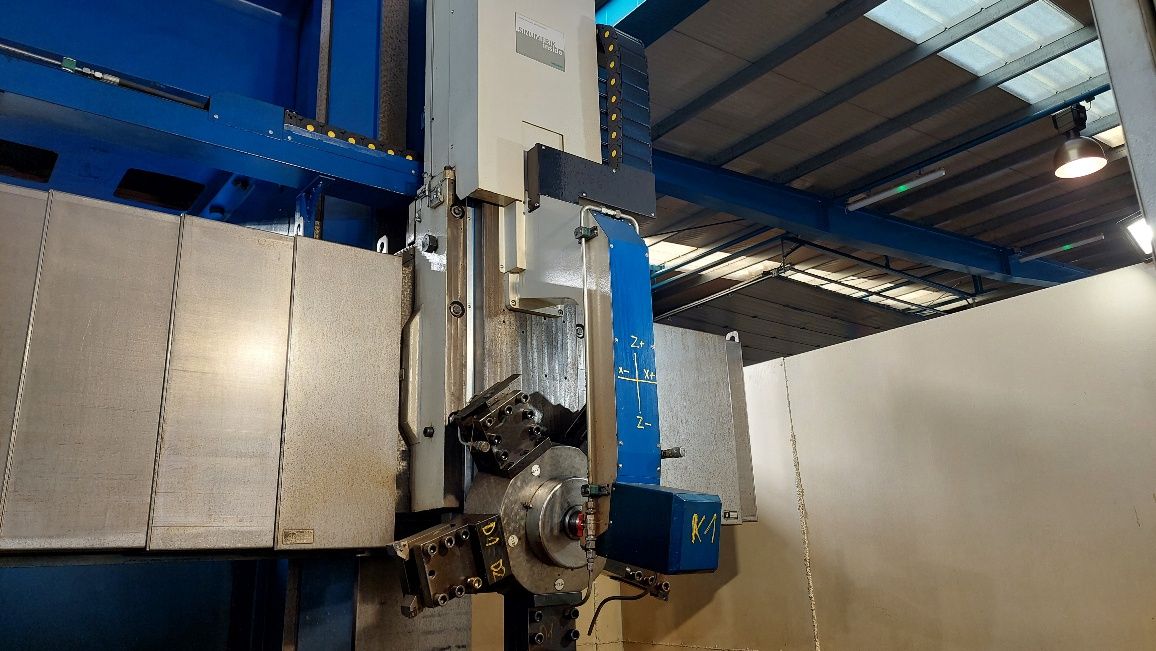

- 2 ram
|
|
|
|
