| Stock-No. |
1020-20725 |
| Category |

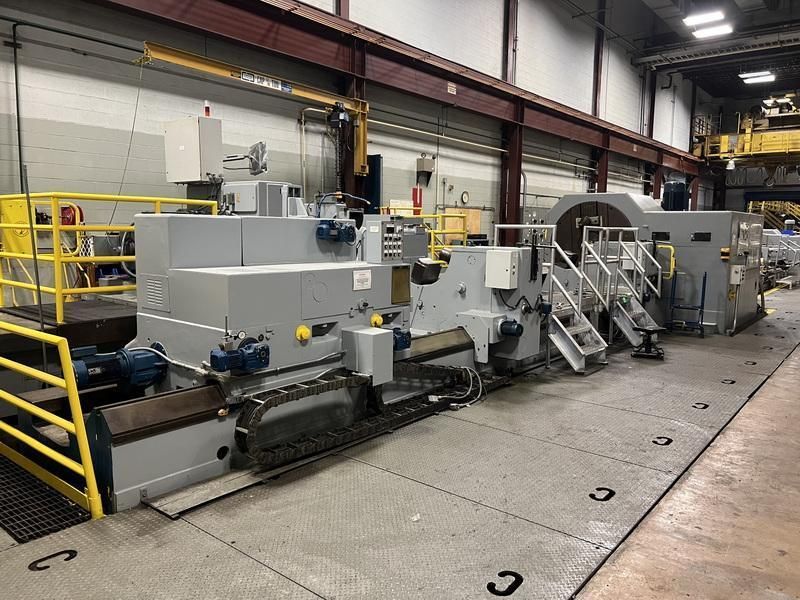

Roll Grinder |
| Make |
MEUSELWITZ |
| Type |
SAXW 1600 / 2 |
| New in |
2018 reb |
| Control |
Allen Bradley PLC |
| Location |
ab Standort,ohne Demontage |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
ex location |
| Price |
| grinding diameter |
250 - 1650 mm |
| grinding length |
1000 - 8000 mm |
| swing diameter |
mm |
| centre height |
1000 mm |
| centre distance |
8000 mm |
| grinding wheel size |
760/900 x 100 x 305 mm |
| Control |
Allen Bradley PLC |
| workpiece weight max. |
75000 kg |
| spindle drive |
66 kW |
| grinding wheel turining speeds |
375 - 1125 U/min |
| feeds of grinding head |
35 - 2600 mm/min |
| grinding feed |
0,0025 - 0,05 mm/U |
| total power requirement |
- kW |
| weight of the machine ca. |
- t |
| Description |
Rough Grinding, Finish, Fine & Superfinish Grinding
Re-Conditioning Work Rolls and Back-Up Rolls
Hard & Soft Rubber Rolls
Machining of: Cylindrical, Convex and Concave Rolls of Various Materials
2018 Electrical Upgrade
Allen Bradley PowerFlex Digital Drives 755
Allen Bradley 1609 SPO Ethernet Network Card
Allen Bradley PLC
- Continuous In-Feed Mechanism of the Grinding Wheel for Compensation of Wheel
Ware
- Dynamic Wheel Balancing
- Electronic Vibration Indicator
- Wheel Mount
- Roll Head Grinding Unit
- Cone Grinding Carriage
- Servo Motor Movement / Adjust on Headstock, Tailstock, Grinding Wheel,
Steadies Etc.(Both Push Button Stand & HMI)
- Head Stock Operator Push Button Panel
- Computer Controlled Carriage Flex I/O
Tailstock Forward & Reverse
- 2 Tailstock Clamps
- Center Adjustment In / Out
- Crowning and Cambering Capabilities
-- Crown Referred to Radius of Workpiece: +/- .01mm - 1.5mm
- 1 Pair of 2 Jaw Steadies with Fine Measuring, Roll Neck Diameters: 250-500mm
- 1 Pair of 2 Jaw Steadies with Fine Measuring, Roll Neck Diameters: 480-800mm
- 1 Pair of 2 Jaw Steadies with Fine Measuring, Roll Neck Diameters: 800-1000mm
- Magnetic Auto Filter
- Paper Band-Type Auto Filter
- Tank & Chip Tray
|
|
|
|
