| Stock-No. |
1020-20718 |
| Category |

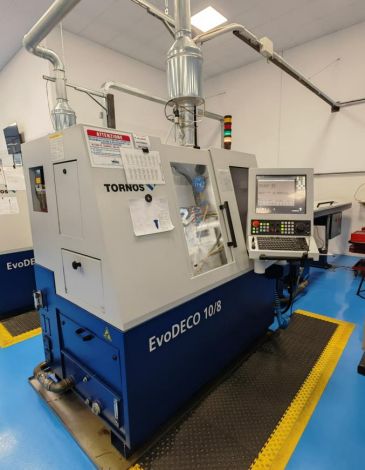

Turning Automatic Lathe - swiss lathe |
| Make |
TORNOS |
| Type |
Evo Deco 10-8 |
| New in |
2014 |
| Control |
Fanuc 31i-B5 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Switzerland |
| Delivery time |
immediately |
| Freight basis |
ex foundation "is as is, where is" |
| Price |
| bar material dia. |
10 mm |
| turning length |
120 mm |
| turning speeds |
14000 U/min |
| control |
Fanuc 31i-B5 |
| spindle motor |
10 kW |
| positive location each |
0,1 Grad |
| number of tools |
22 |
| driven tools |
11 |
| tank capacity |
220 l |
| total power requirement |
3,7 kW |
| weight of the machine ca. |
4 t |
| dimensions of the machine ca. |
2,2 x 2 x 2,3 m |
| Description |
8-linear-axis machine
- 2 C-axes
- FANUC 31i-B5 control, TB-DECO programming software
- Identical main & counter spindle
- High pressure cooling 15bar

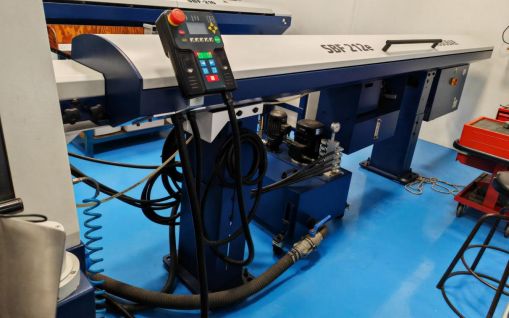

- Bar feeder LNS Robobar SBF 212E
- chip tray
- 2 motorised radial tools
- 1 motorised tool at 90°
- 1 outdoor tourbillonage
- 6 tool holders
- Front tabs for counter operation
- 1 3-position plate for front drilling
- Wama fire protection system
- Machine in perfect condition has almost always worked from ø 3 for micro
screws.
|
|
|
|
