| Stock-No. |
1020-20715 |
| Category |

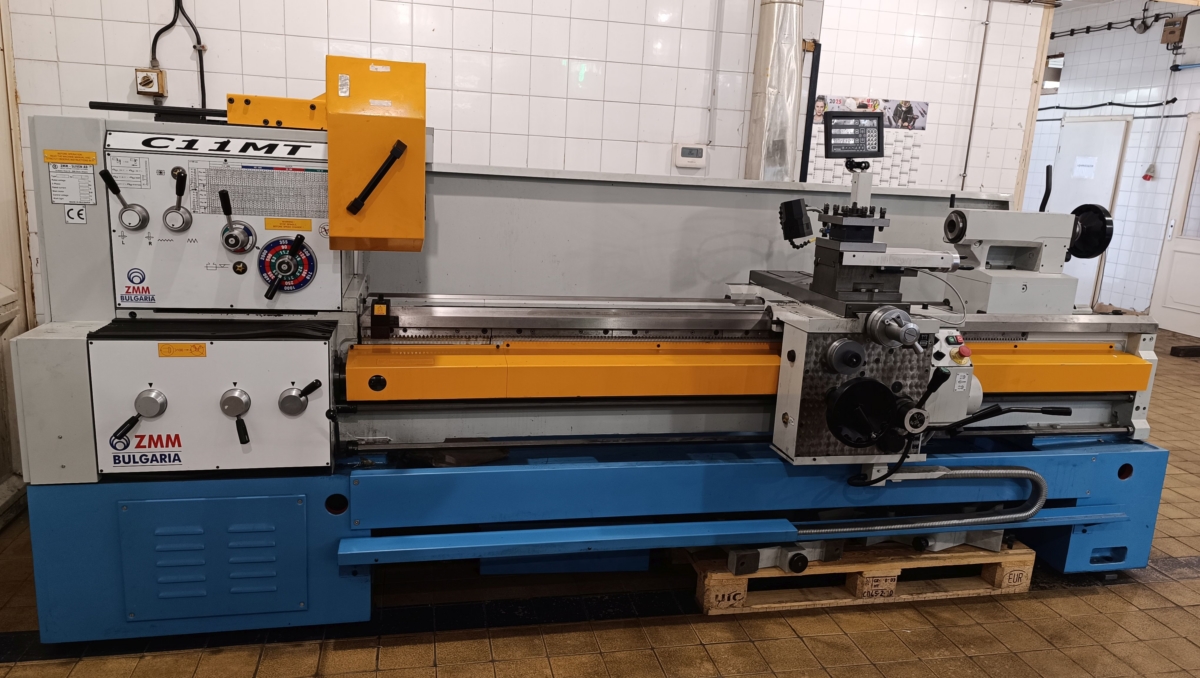

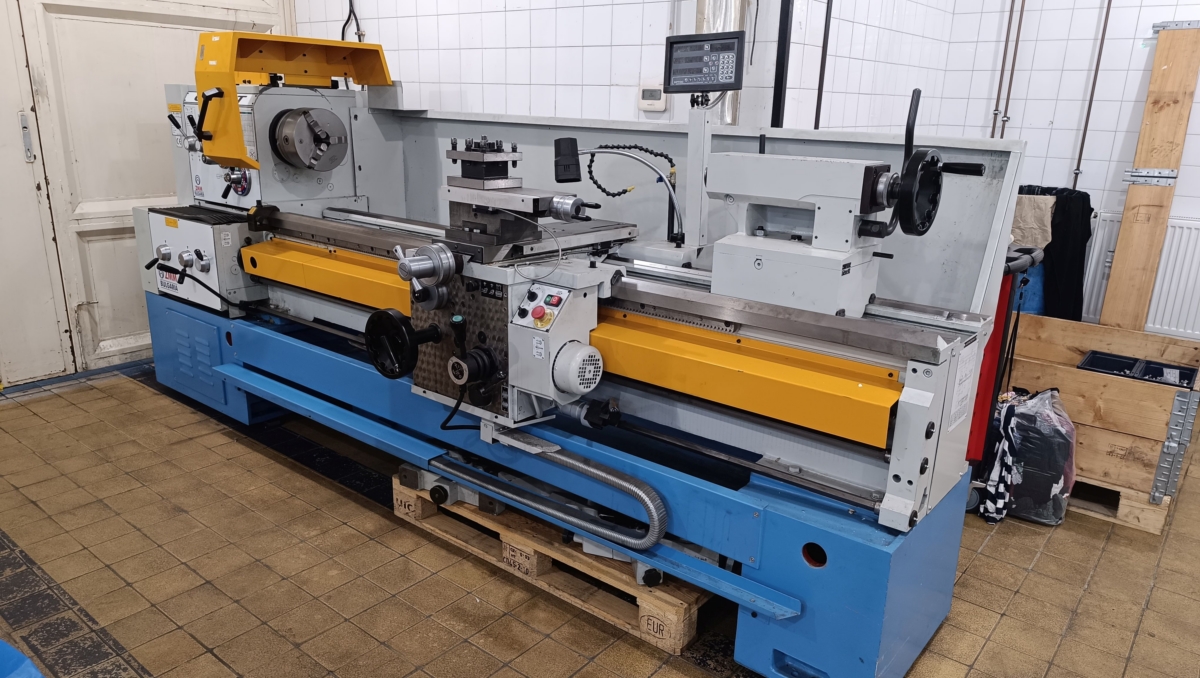

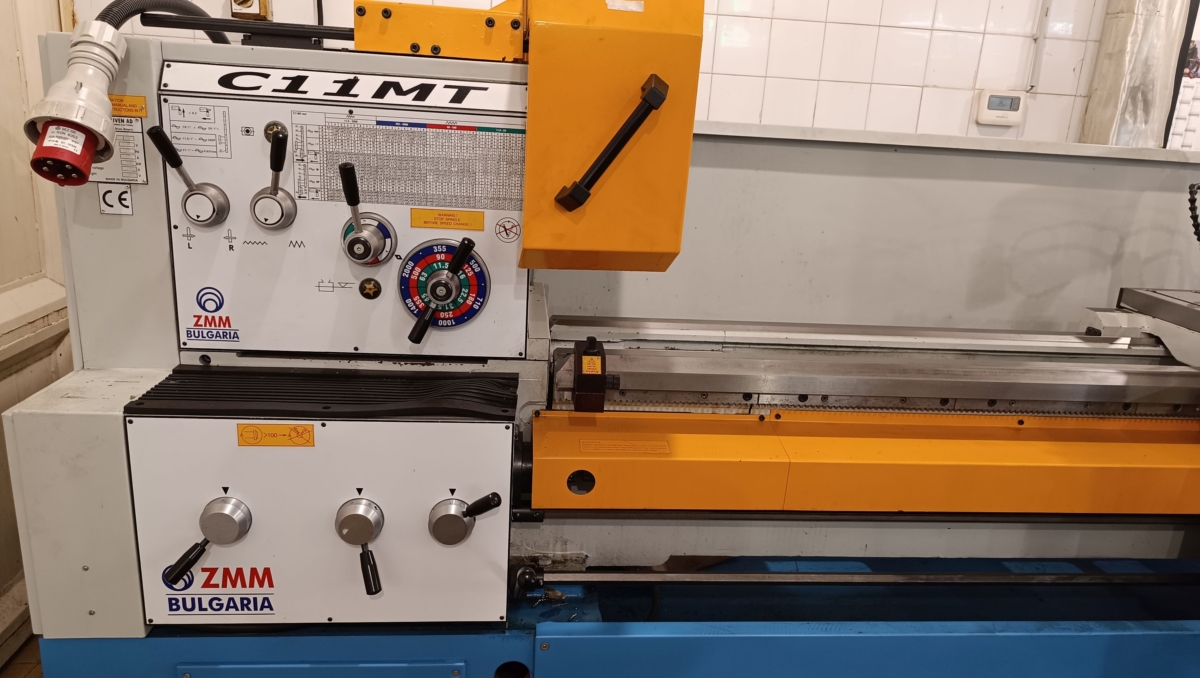

Center Lathe |
| Make |
ZMM |
| Type |
C11 MT |
| New in |
2021 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Bulgarien |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| turning diameter over bed |
600 mm |
| turning diameter over slide rest |
400 mm |
| turning length |
2000 mm |
| A-Axis |
800 mm |
| spindle bore |
80 mm |
| spindle nose |
A8 |
| spindle motor |
7,5 kW |
| reus |
11,5 - 2000 U/min |
| tail stock |
MK 5 |
| quill stroke |
230 mm |
| diameter of quill |
90 mm |
| feed |
längs 0,02 - 12 m/min |
| feed |
quer 0,01 - 6 m/min |
| thread - mm pitch |
0,25 - 120 mm |
| thread - module |
0,0625 - 30 mm |
| thread pitch -number |
80 Stück |
| total power requirement |
- kW |
| weight of the machine ca. |
3000 t |
| dimensions of the machine ca. |
2850 x 980 x 1330 m |
| Description |
Equipment:
- Coolant device
- Machine light
- Spindle guard
- Rotating chuck guard
- Interchangeable gears
- 3-jaw chuck Ø 250mm
- 3-axis digital readout DRO

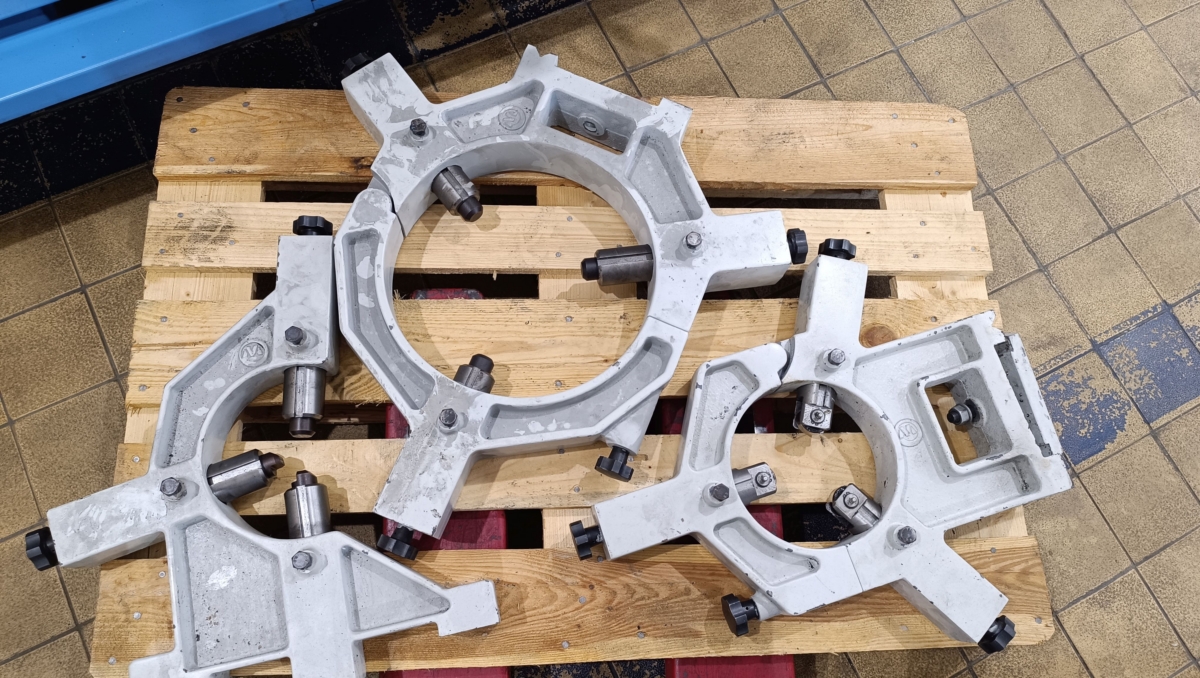

- travelling steady rest dia 15-200mm
- 2 fixed steady rests dia 15-200mm & 180-340mm
- CE
|
|
|
|
