| Stock-No. |
1020-20662 |
| Category |
double-sided high speed press |
| Make |
KAISER |
| Type |
V 160 WR / 1300 |
| New in |
1986 |
| Control |
Siemens S7 / Touch |
| Location |
ab Standort,ohne Demontage |
| Origin |
Germany |
| Delivery time |
according agreement |
| Freight basis |
ex location |
| Price |
| pressure |
160 t |
| stroke |
20 - 120 mm |
| no. of strokes |
20 - 120 /min |
| distance between columns |
1300 mm |
| column travel -side |
520 mm |
| dayligth |
570 mm |
| table surface area |
1250 x 900 mm |
| hole in the table |
900 x 250 mm |
| table height over floor |
1000 mm |
| ram surface |
1100 x 700 mm |
| ram adjustment |
100 mm |
| material width |
20 - 320 mm |
| material thickness |
0,3 - 4,0 mm |
| feed length |
1,0 - 9999,99 mm |
| power requirement |
18,5 kW |
| Control |
Siemens S7 / Touch |
| weight of the machine ca. |
25,0 t |
| dimensions of the machine ca. |
3,0 x 2,3 x 3,7 mxmxm |
| Description |
Approved for automatic operation in accordance with German
accident prevention regulations (UVV) - partially overhauled

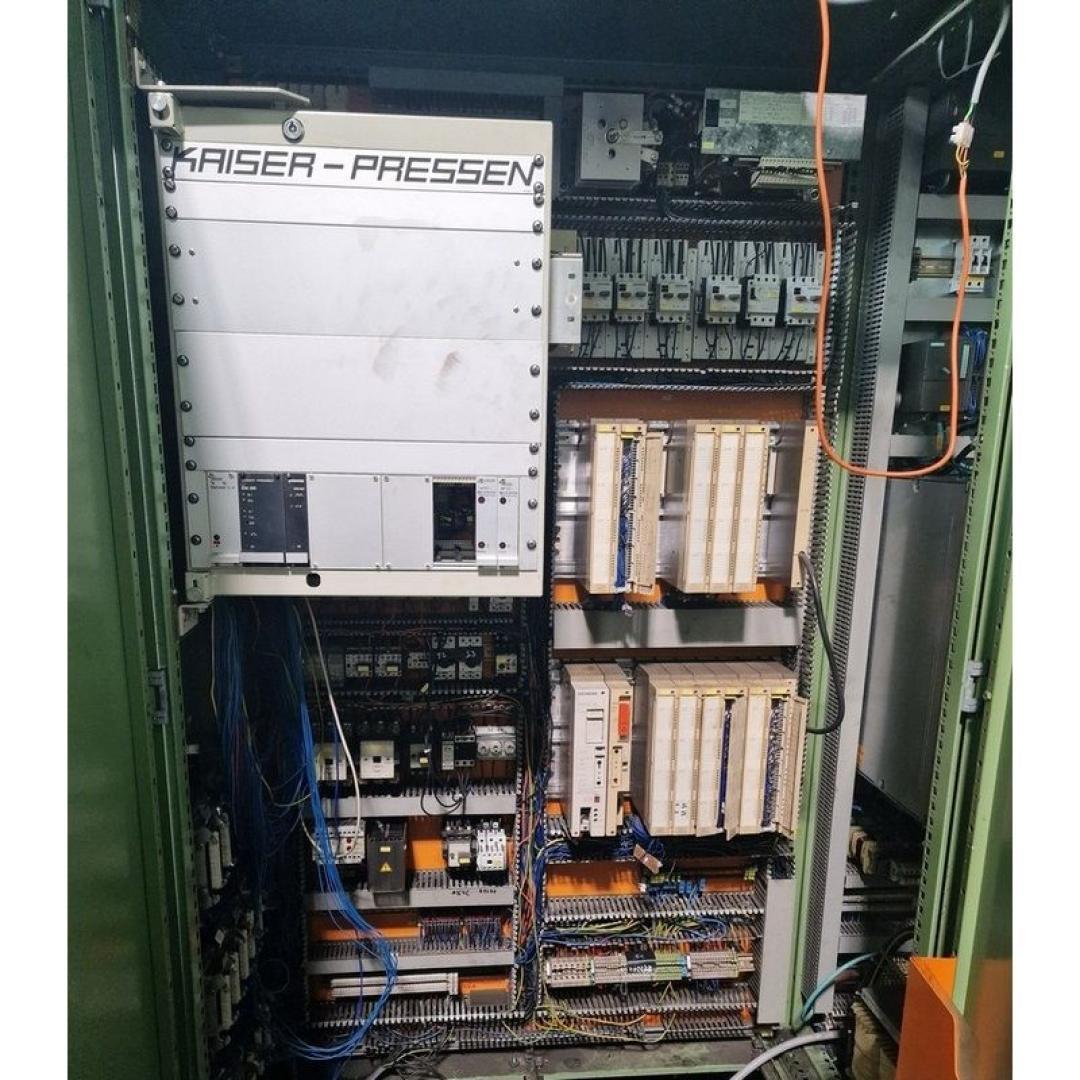

- WITH new switch cabinet with control and safety electronics - Siemens S7-
1500F, convenient operation via touch panel
Control system design in accordance with DIN EN ISO 16092-1/-2/-3
- WITH new servo motor and axis control for the feed
- with infinitely variable drive
- pneumatic clutch/brake combination,
- electro-hydraulic overload protection
- automatic stroke adjustment,
- motorized ram adjustment
- pneumatic ram weight compensation,
- motorized central circulation lubrication
- electronic roller feed Kaiser KWV 320 Z, year 2000 with hydraulic
intermediate lifting
|
|
|
|
