| Stock-No. |
1020-20648 |
| Category |
Travelling column milling machine |
| Make |
FPT |
| Type |
SIRIO-M |
| New in |
2001 |
| Control |
HEIDENHAIN TNC 426 M |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Italy |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
6000 mm |
| y-travel |
1200 mm |
| z-travel |
2000 mm |
| a-axis |
144 x 2,5 ° |
| c-axis |
144 x 2,5 ° |
| spindle turning speed - stepless |
187 - 4000 U/min |
| spindle taper ISO |
50 |
| spindle motor |
27 kW |
| max. torque on the spindle |
1400 Nm |
| feeds longditudinal/cross/vertical |
6000 mm/min |
| rapid motion -longitudinal/cross/vertical |
15 m/min |
| no. of tools in the magazine |
40 Stück |
| control |
HEIDENHAIN TNC 426 M |
| total power requirement |
56,9 kW |
| weight of the machine ca. |
27 t |
| dimensions of the machine ca. |
- m |
| Description |

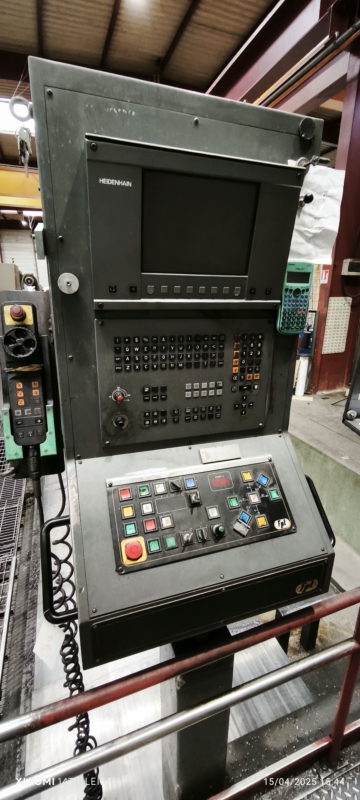

- CNC control HEIDENHAIN TNC 426 M
- ATC for 40 tools (BT 50)
- Indexable 2-axis milling head with 144 x 2.5° each
- Internal coolant supply

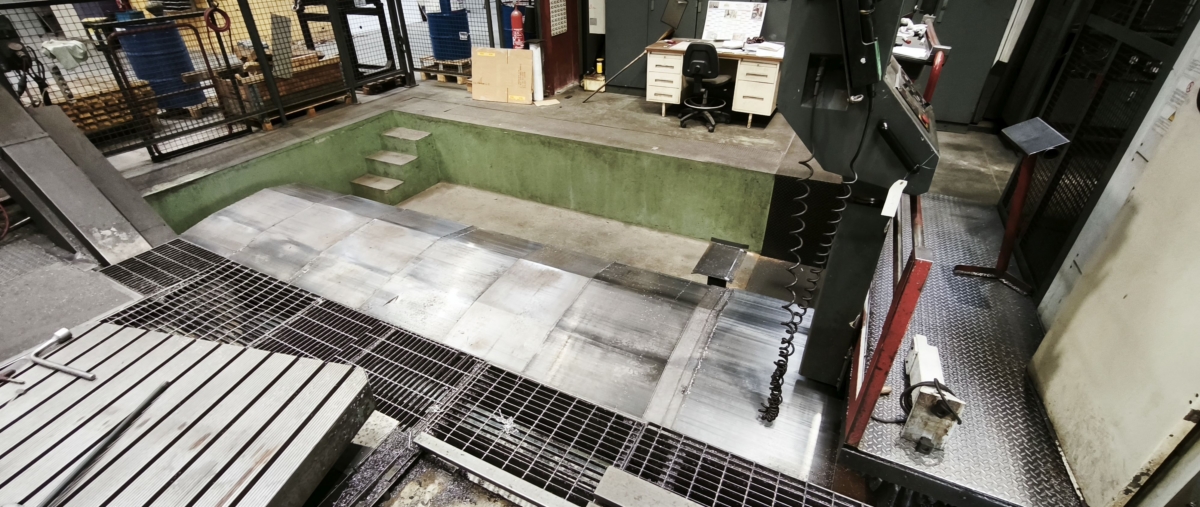

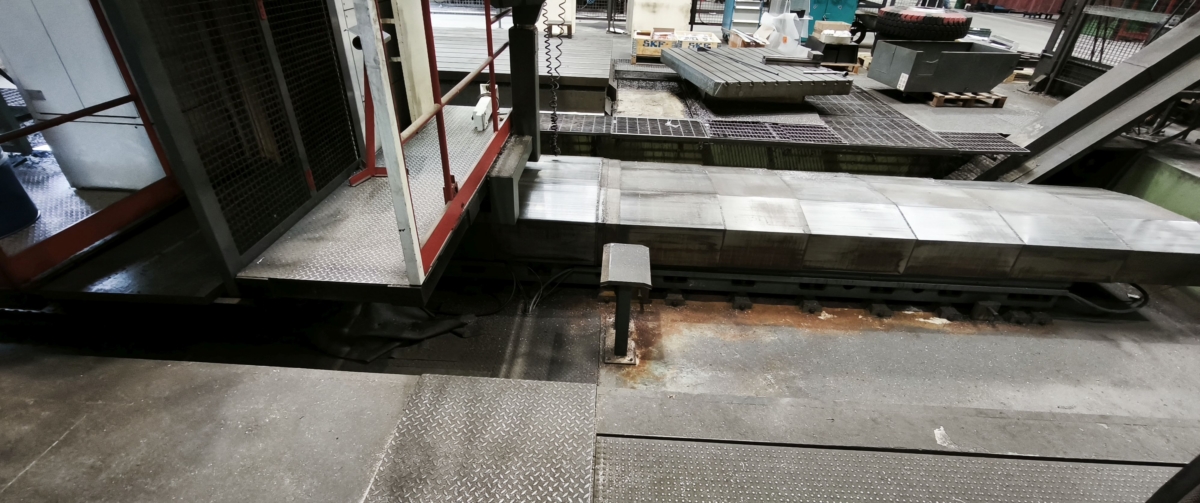

- Floor Plate 3500 x 2500mm

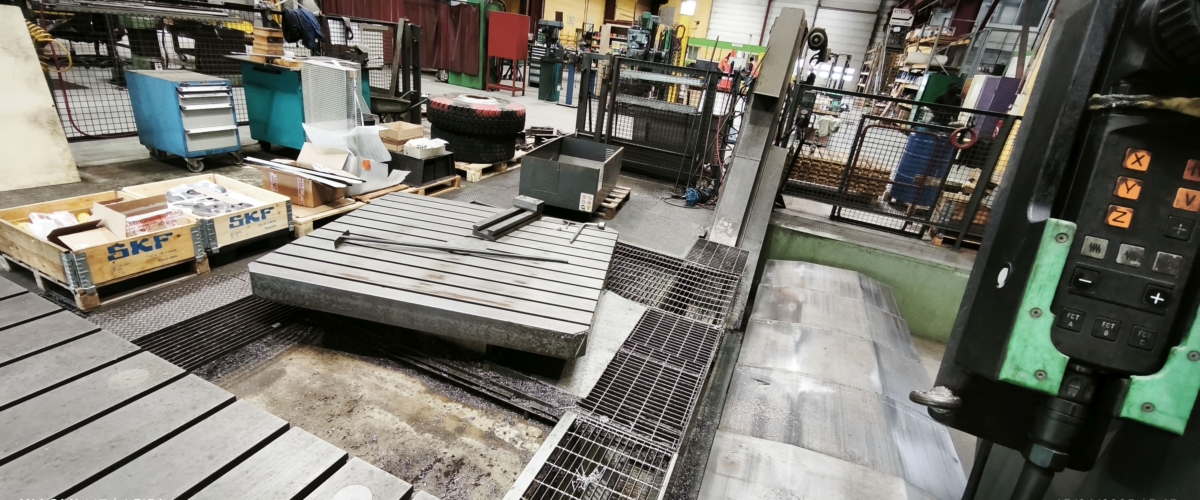

- NC rotary table 1500 x 1500mm

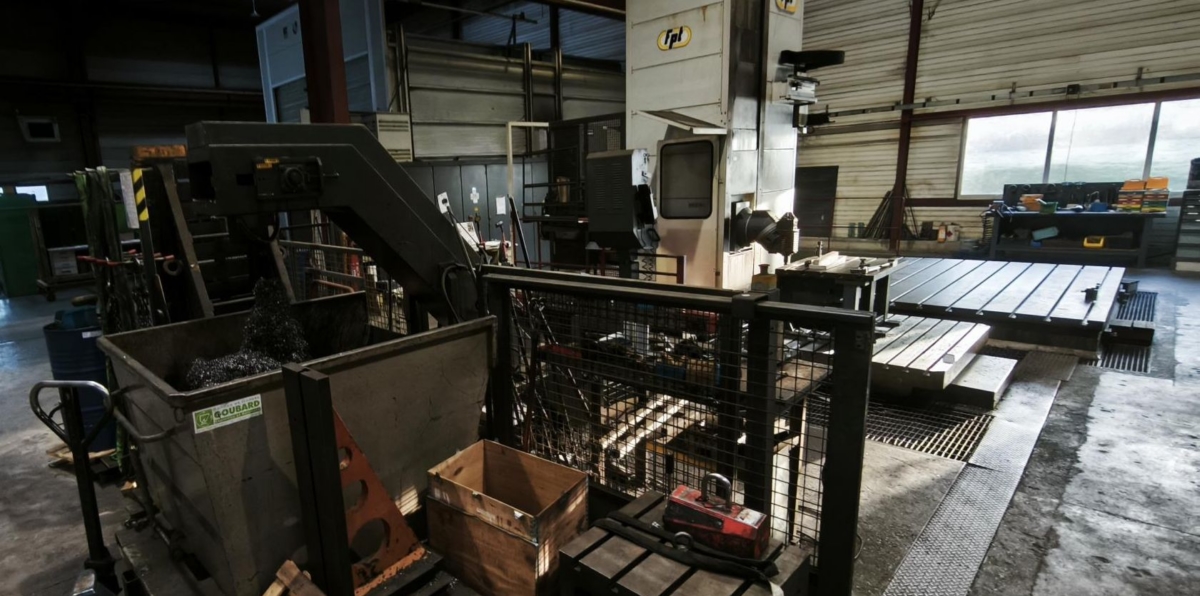

- Chip conveyor
- Renishaw
- Hydrostatics in x/y/z
- Ball screws in x/y/z
Coordinates - X=longitudinal / Y=transverse / Z=vertical
|
