| Stock-No. |
1020-20585 |
| Category |
Machining Center - Universal |
| Make |
DMG |
| Type |

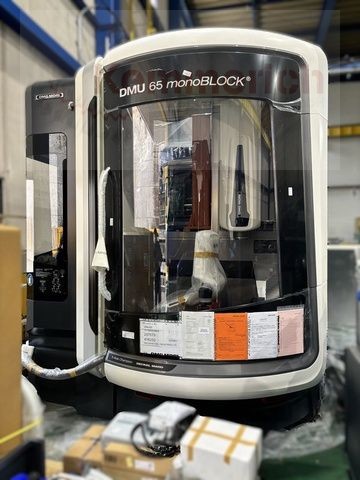

DMU65 monoBLOCK |
| New in |
2023 |
| Control |
Siemens 840Dsl |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
according to the arrangement |
| Freight basis |
ex works |
| Price |
| x-travel |
735 mm |
| y-travel |
650 mm |
| z-travel |
560 mm |
| Control |
Siemens 840Dsl |
| spindle turning speed range |
15000 U/min |
| tool taper |
HSK A 63 |
| c-axis |
360 ° |
| table-size |
800 x 650 mm |
| table - swivable +/- |
+/-120 ° |
| workpiece weight |
600 kg |
| tool change unit |
90 Pos. |
| total power requirement |
57 kVA |
| weight of the machine ca. |
12 t |
| dimensions of the machine ca. |
3,17 x 2,69 x 2,89 m |
| Description |
UNUSED Machine

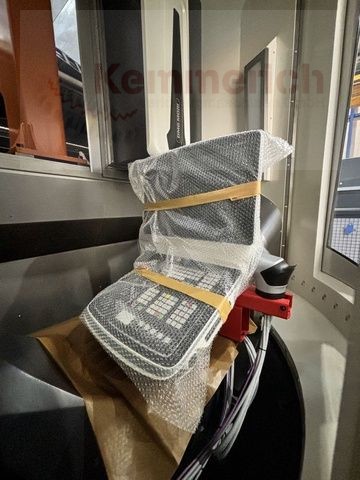

- CNC Control Siemens 840Dsl Operate(CELOS)
- 3D Quick Set

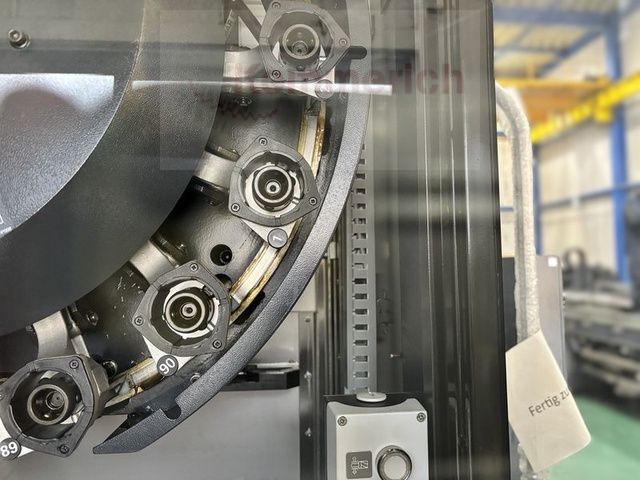

- Tool Changer 90-fold
- ATC (Application Tuning Cycle)
- NC controlled tilt rotary table C-axis direct drive (A-axis tandem)

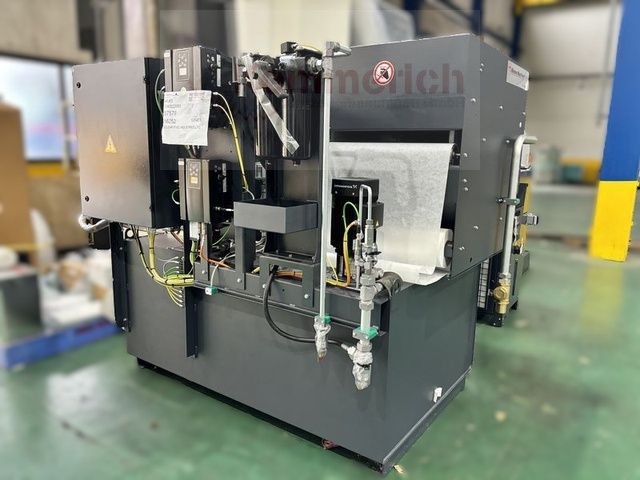

- Production package 8MPa/980L, frequency control
- Coolant temperature control device (for 980L/1300L tank)
- Air blast (spindle center through air)
- Mist collector interface
- In-machine tool measuring device Bloom
- Operation mode 4 (conditional release of interlock)
- High precision specification
- Manual pulse handle / Coolant gun
- Safety package (for power outages)
|
