| Stock-No. |
1020-20576 |
| Category |

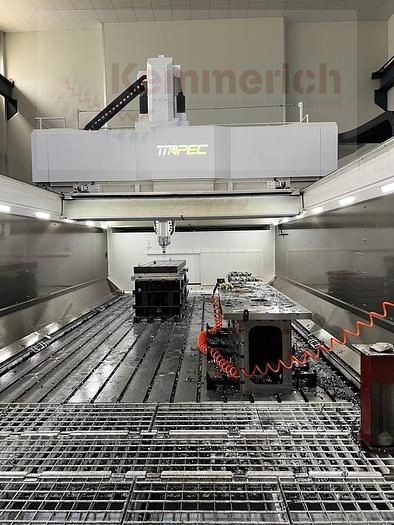

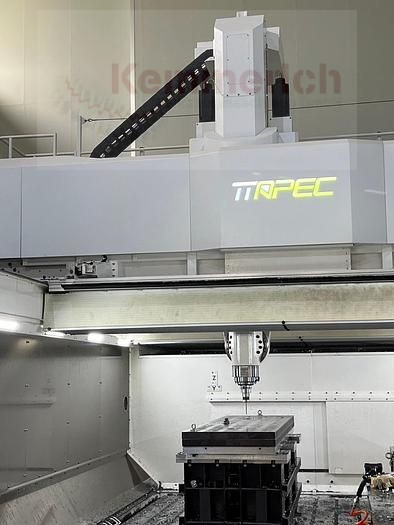

Planer-Type Milling M/C - Double Column |
| Make |
APEC |
| Type |
G 3060-5L |
| New in |
2022 |
| Control |
HEIDENHAIN TNC 640 |
| Location |
ab Standort,ohne Demontage |
| Origin |
Taiwan |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
6000 mm |
| y-travel |
3000 mm |
| z-travel |
1000 mm |
| Control |
HEIDENHAIN TNC 640 |
| table surface area |
6000 x 3000 mm |
| table weight |
8000 Kg/m² |
| rapid traverse X-axis |
60000 mm/min |
| rapid motion - y-axis |
60000 mm/min |
| number of spindle speeds |
15000 U/min/rpm |
| Spindle power |
35 / 42 kW |
| taper ISO |
HSK A 100 |
| distance between columns |
3000 mm |
| distance spindle nose and table |
280 - 1280 mm |
| A-Axis |
+125 / -125 ° |
| c-axis |
360 ° |
| total power requirement |
- kW |
| weight of the machine ca. |
65 t |
| dimensions of the machine ca. |
- mm |
| Description |
- CNC control Heidenhain TNC 640
- Universal milling head 2-axis
- 5-axis automatic Compensation system
- Automatic tool changer 40-fold (HSK 100)
- Internal spindle cooling
- Blum tool measuring system
- Blum workpiece measuring system
- Heidenhain linear scales
- Portable handwheel
- Chip conveyor
|
