| Stock-No. |
1020-20545 |
| Category |
Vertical Turret Lathe - Double Column |
| Make |
TITAN |
| Type |
SC 27-33 CNC |
| New in |
1986/2025 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Romania |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| faceplate diameter |
2500 mm |
| swing diameter |
3300 mm |
| turning height |
1900 mm |
| workpiece weight |
15000 kg |
| vertical adjustment of the crossrail |
1600 mm |
| turning speed range - faceplate |
1 - 90 U/min |
| main drive motor |
60 kW |
| ram head swiveling |
+/- 35 ° |
| ram head - cross travel |
1200 mm |
| ram head - vertical travel |
720 mm |
| feed range |
1 - 4000 mm/min |
| Control |
|
| total power requirement |
ca 70 kW |
| weight of the machine ca. |
40 t |
| dimensions of the machine ca. |
4,8 x 4,8 x 5 m |
| Description |
Complete overhaul in 2025

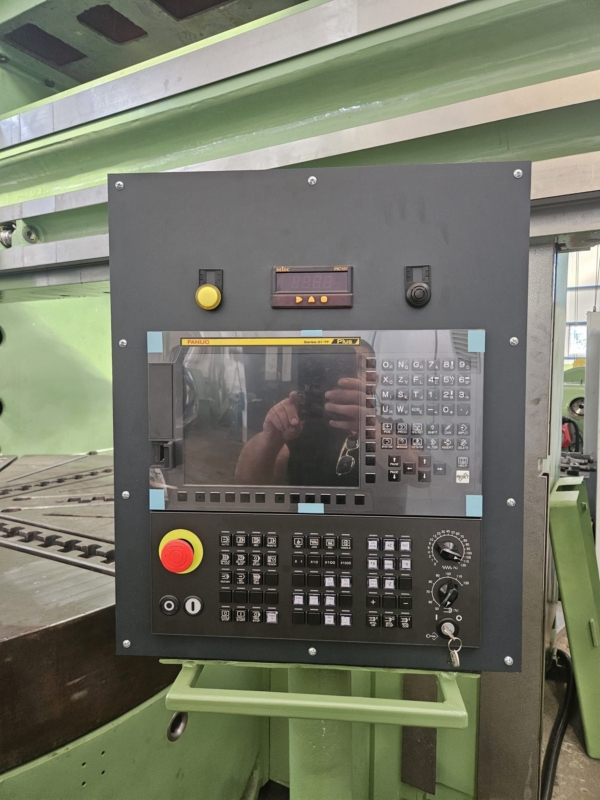

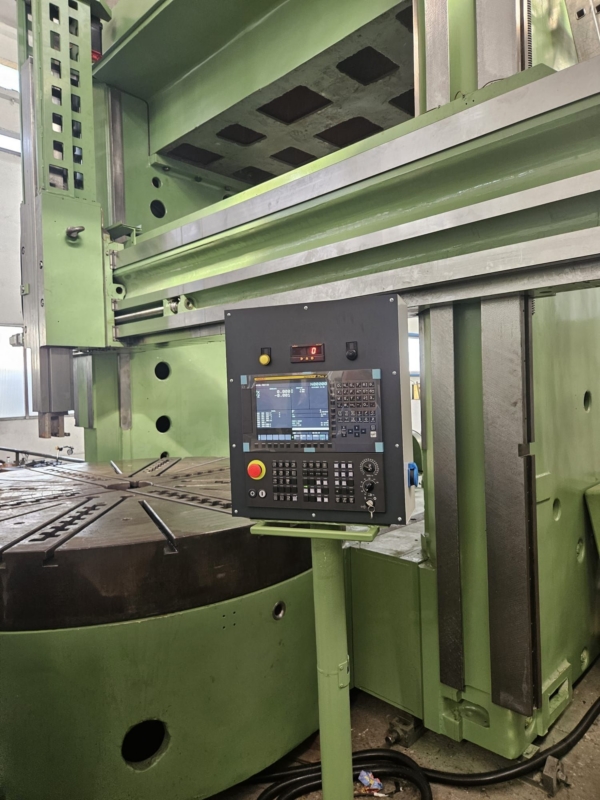

- CNC FANUC 0i-TF
- 1 ram on crossbeam
- 4 clamping jaws for face plate
- CE
-- mechanical overhaul of all components (adjustment of the geometrical
parameters of the machine according to ISO 3655)
-- Grinding of the guides
-- New telescopic covers

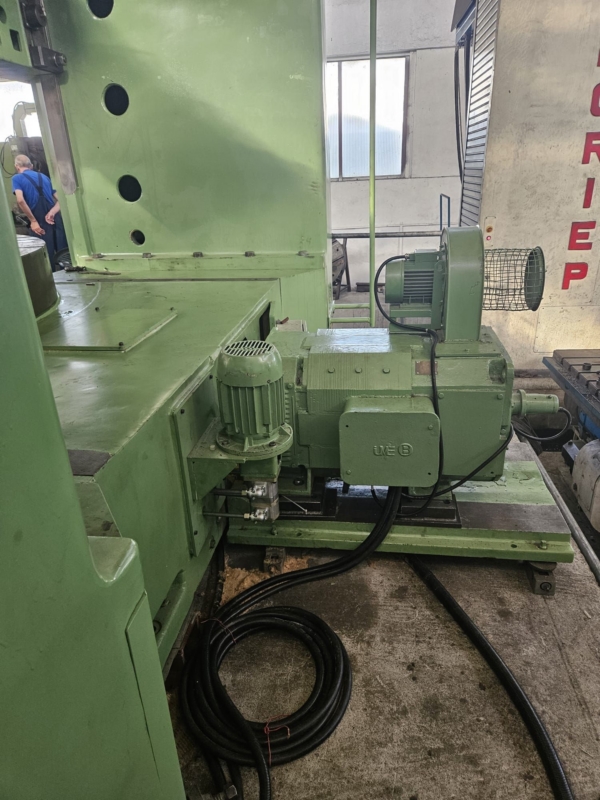

-- FANUC main motor

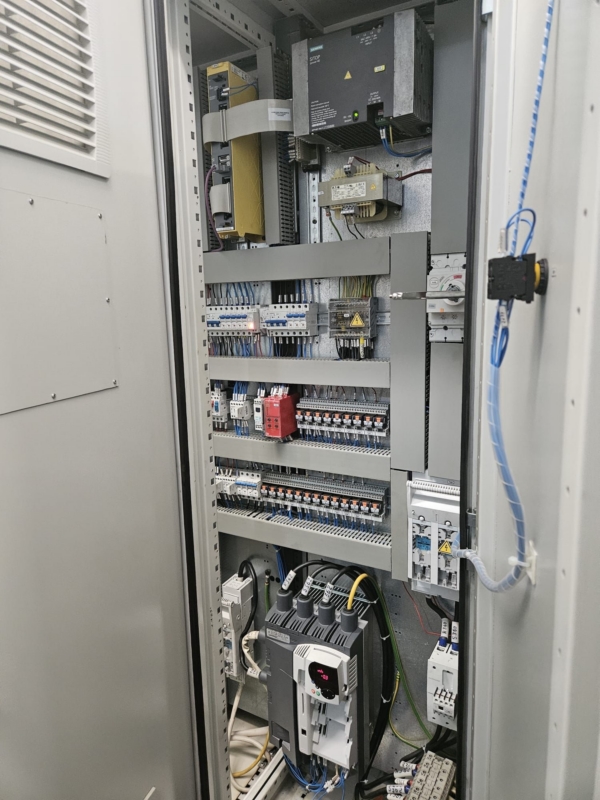

-- new electrics and CNC control
-- new Fanuc servomotors
-- ball screws dia. 50mm
-- new hydraulics

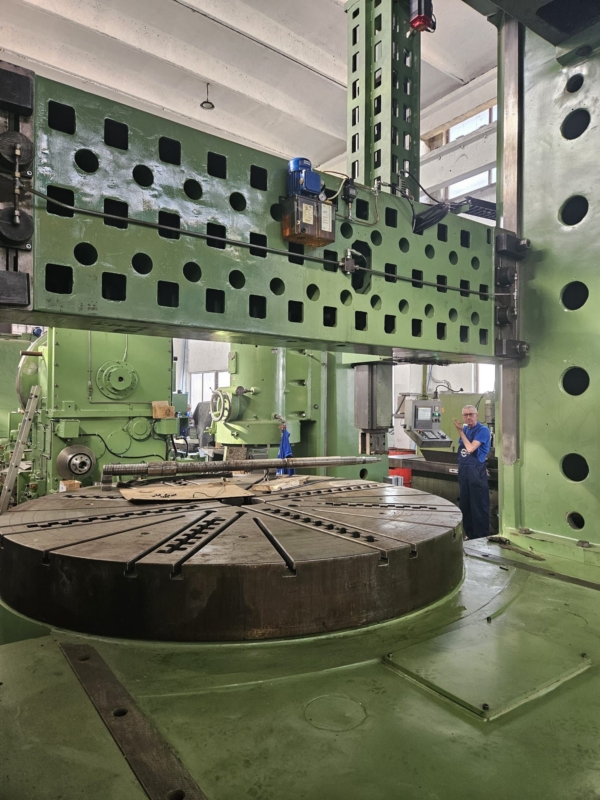

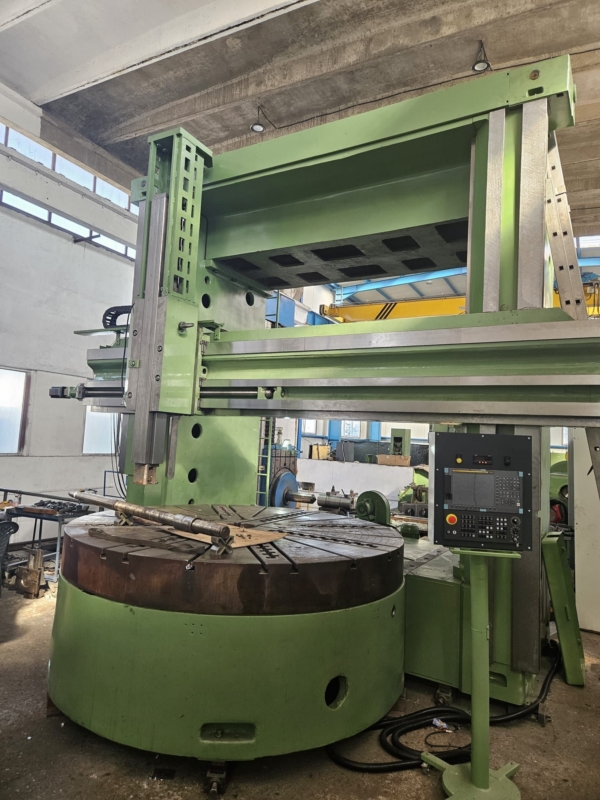

the machine image is an example image after overhaul
|
