| Stock-No. |
1020-20529 |
| Category |
milling machining centers - vertical |
| Make |
KAFO |
| Type |
BMC 2012A |
| New in |
2019 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Taiwan |
| Delivery time |
short-dated |
| Freight basis |
ex foundation "is as is, where is" |
| Price |
| x-travel |
2100 mm |
| y-travel |
1200 mm |
| z-travel |
1020 mm |
| Control |
|
| table-size |
2000 x 1100 mm |
| spindle taper: |
BT 40 |
| spindle turning speed range |
10000 U/min |
| spindle motor |
22 kW |
| rapid traverse |
20 / 20 / 15 m/min |
| distance between columns |
1370 mm |
| distance table - lower edge spindle |
150 - 1170 mm |
| workpiece weight |
4000 kg |
| total power requirement |
35 kVA |
| Total weight, approx. |
21 t |
| dimensions of the machine ca. |
6,3 x 3,3 x 4,3 m |
| Description |

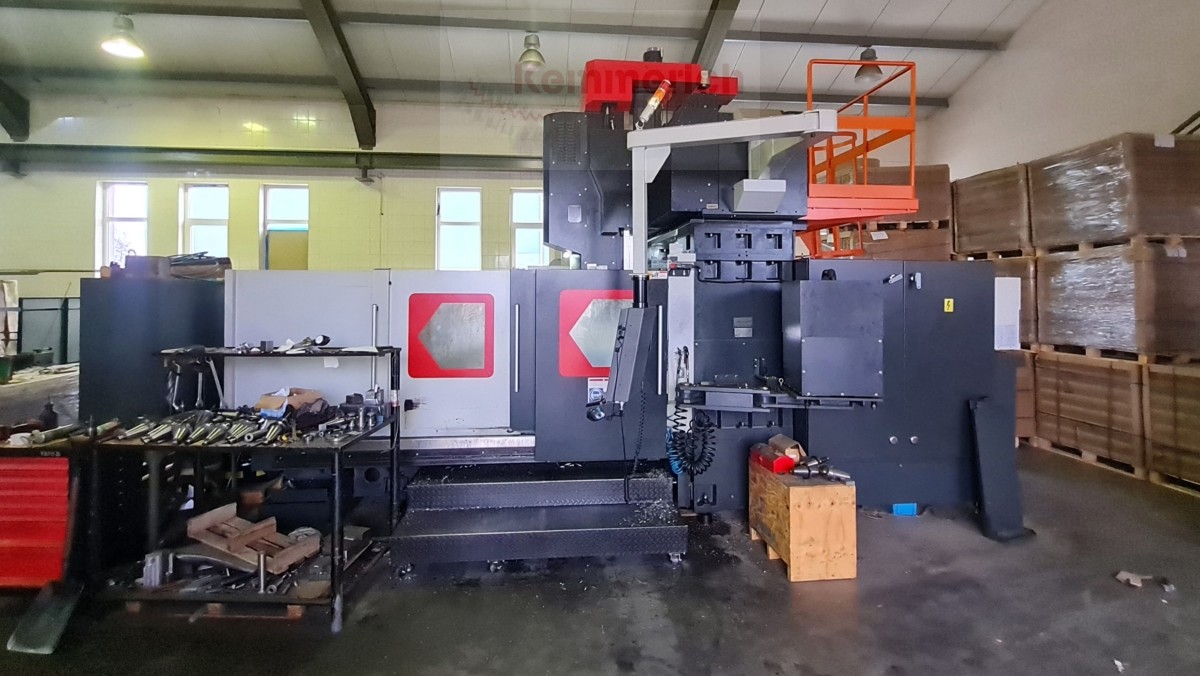

Portal- Vertical BAZ , equipped with:
- CNC control
- 30-position tool changer
- manual angular milling head
- Heidenhain scales
- Chip Conveyor
- Coolant Unit with coolant through Spindle
approx. 4000h running hours
|
|
|
|
