| Stock-No. |
1020-20488 |
| Category |
Thread and Worm Milling Machine |
| Make |
WANDERER |
| Type |
GF 345 CNC |
| New in |
1989 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| workpiece diameter |
840 mm |
| threading length |
5100 mm |
| thread pitch |
1 - 99999 mm |
| workpiece dia. over saddle |
345 mm |
| longitudinal stroke |
5100 mm |
| vertical stroke |
320 mm |
| spindle bore |
120 mm |
| no. of teeth |
4 - 100 |
| tool taper |
SK 50 |
| feeds - longitudinal |
1 - 5000 mm/min |
| feeds - cross |
1 - 2500 mm/min |
| feeds vertical |
1 - 750 mm/min |
| feeds |
0 - 10 (C-Achse) mm/min |
| rapid travel x/y/z |
5000/2500/750 mm/min |
| main drive DC |
20 kW |
| workpiece weight |
2000 kg |
| spindle turning speed range |
45 - 3150 (RF-Fräskopf) U/min |
| chuck diameter |
400 mm |
| vertical adjustment of the head stock |
+ 60 / - 40 mm |
| total power requirement |
50 kW |
| weight of the machine ca. |
22 t |
| dimensions of the machine ca. |
12,5 x 3,0 x 2,5 m |
| Description |

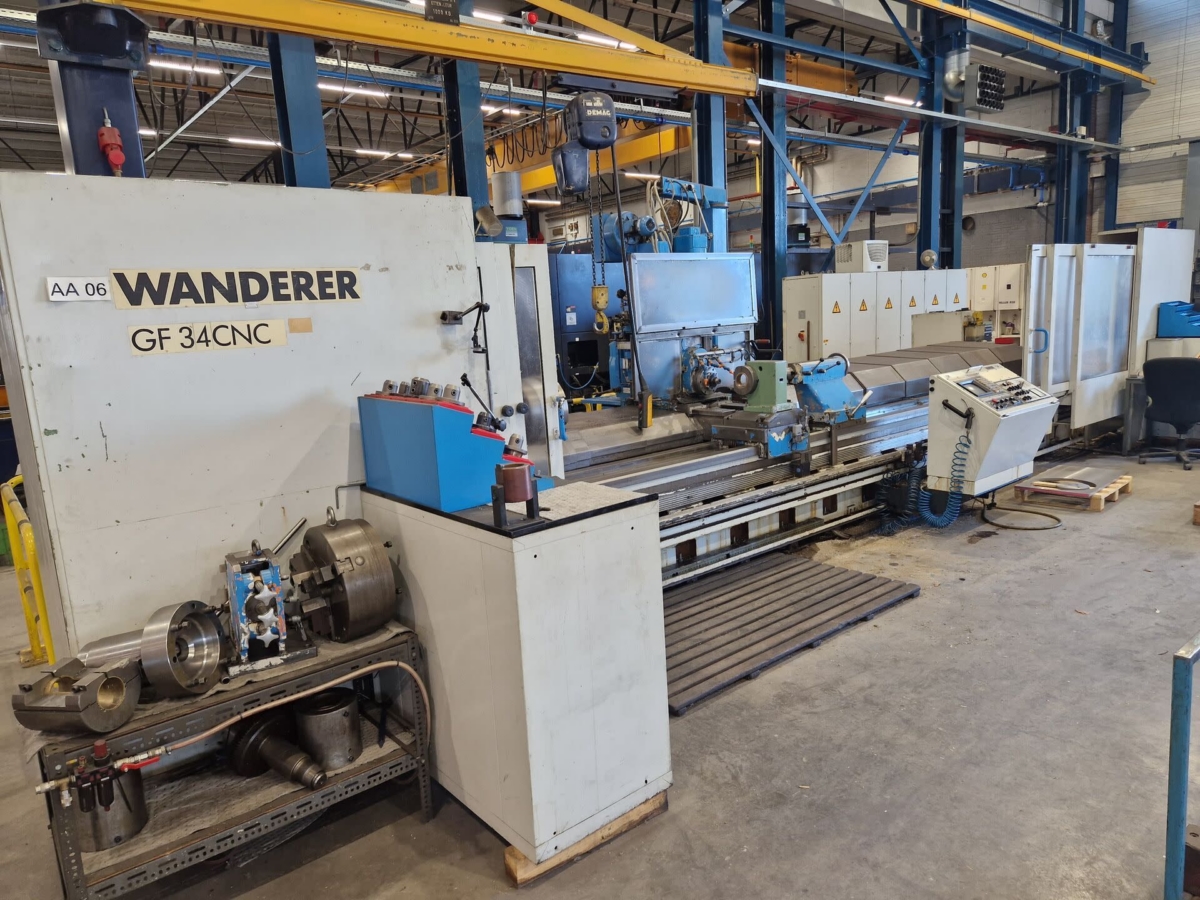

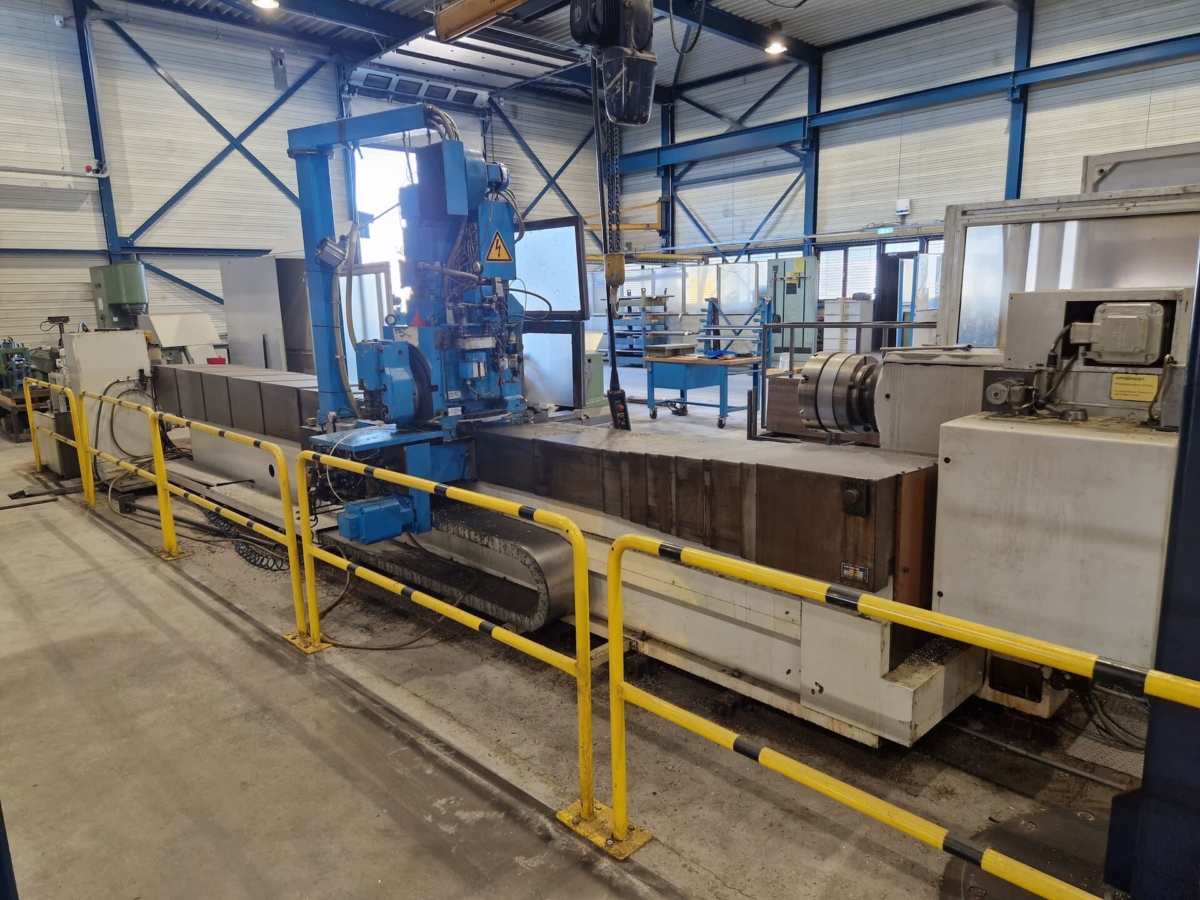

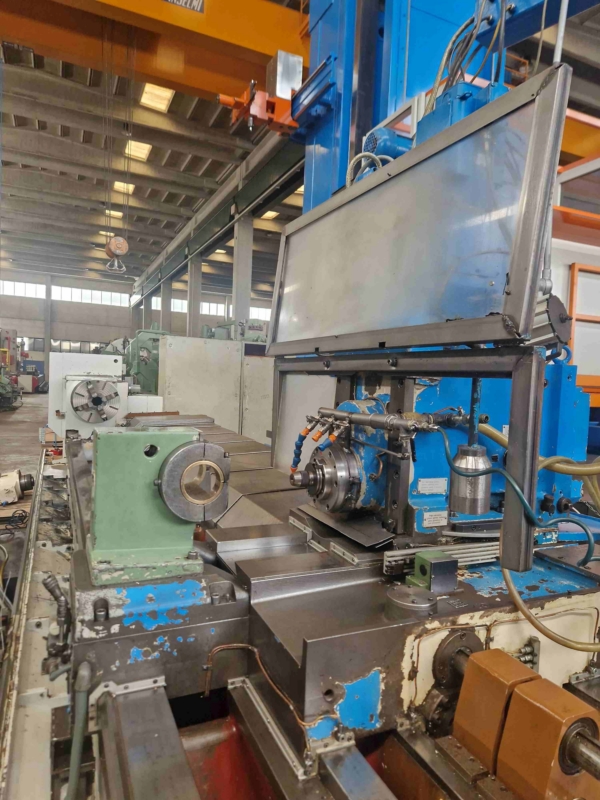

Wanderer horizontal universal threading and hobbing machine with :

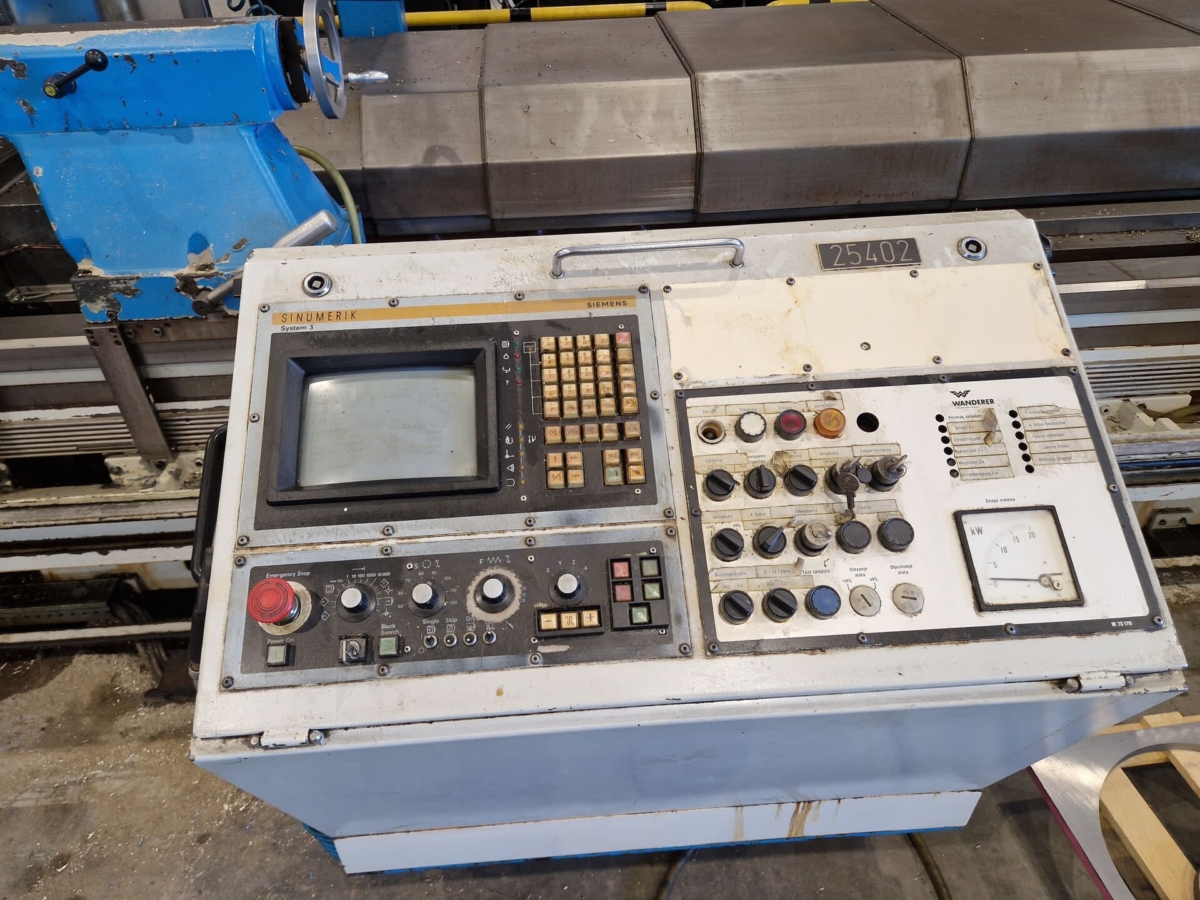

- 4-axis CNC control Siemens Sinumerik 3 M - GA with control panel and screen
for the following axes: X / Y / Z / C

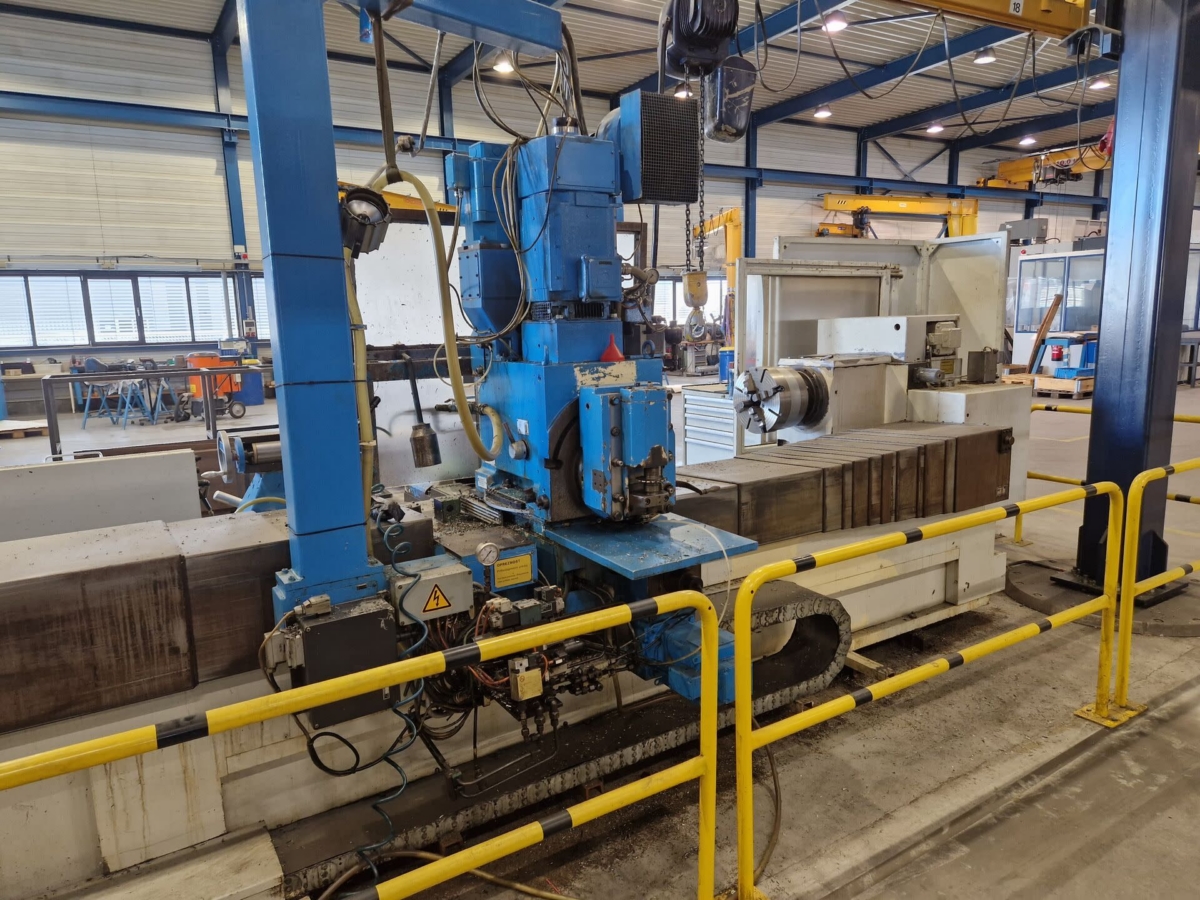

- Radial milling head model RF spindle Ø 100 mm, SK 50 - 19 kW
- Hobbing head WF - milling spindle: steep taper DIN 2079 SK 40 - 6 kW. Module
8
- Internal thread milling head IF - 3 kW
- Universal milling head UF - 3 kW
- MAYFRAN automatic chip conveyor system
- Coolant unit with separate coolant tank

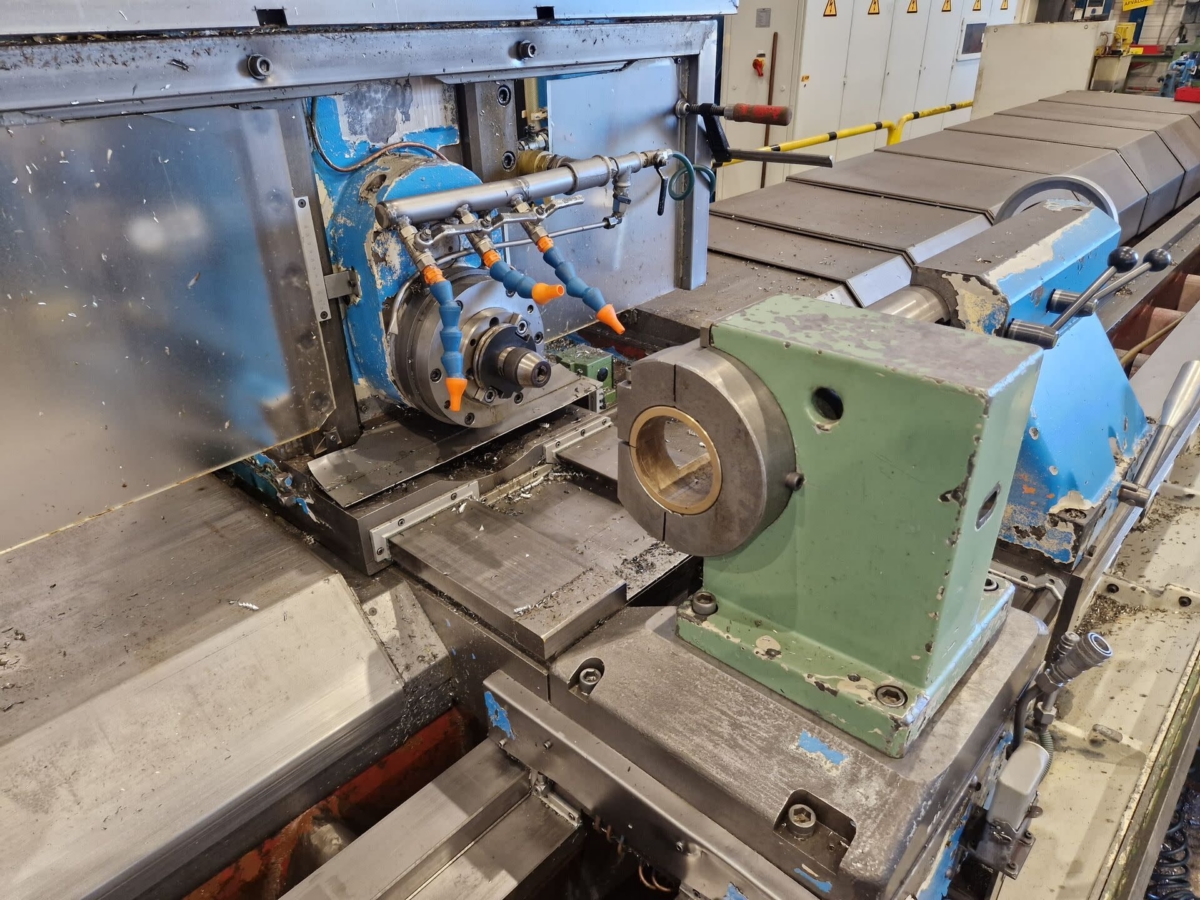

- Tailstock with flattened quill

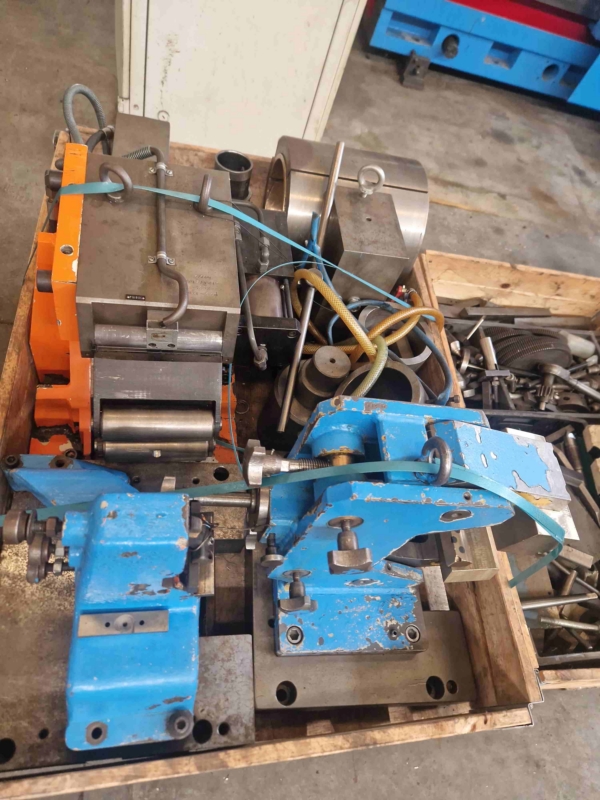

- Various bushing setting vices with guide bushes

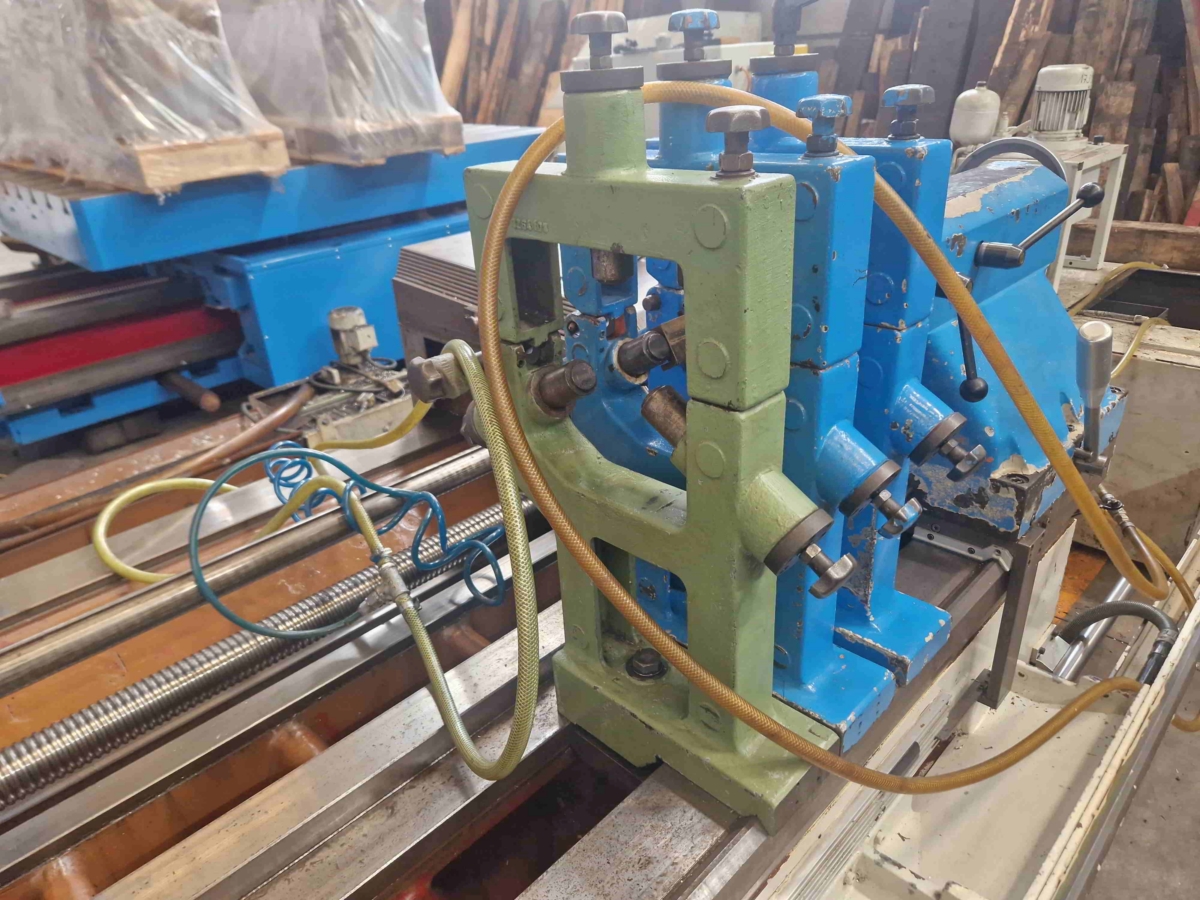

- 3 open steady rests, 3 closed steady rests

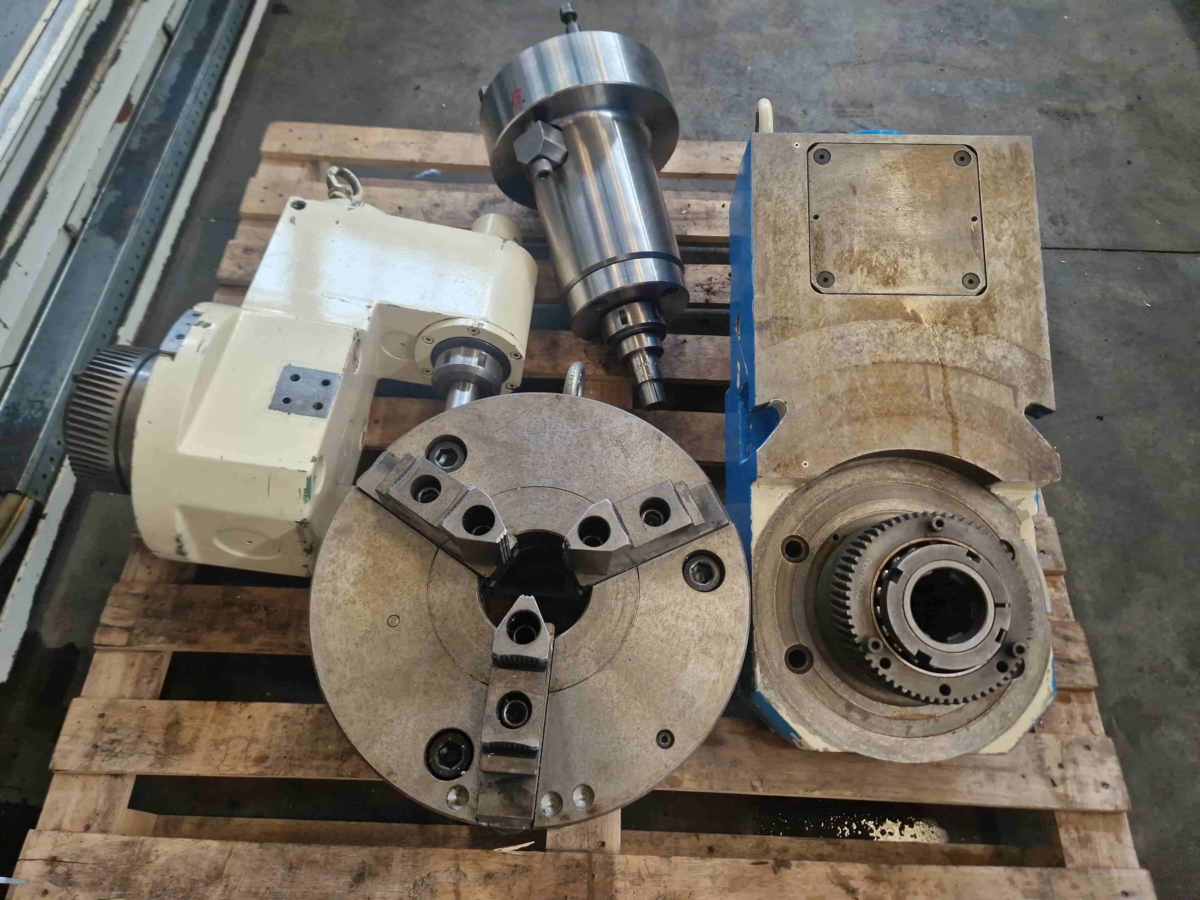

- Three-jaw chuck dia. 400mm

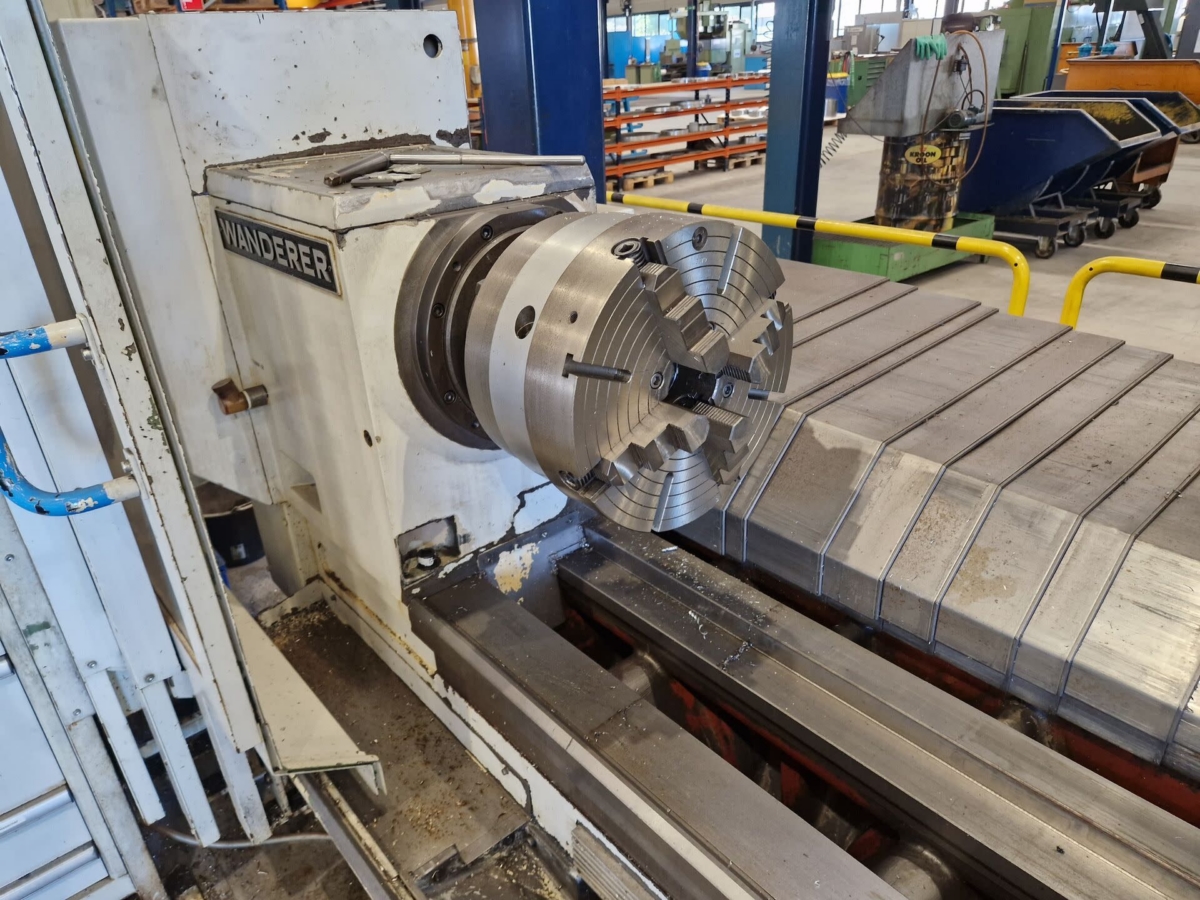

- Four-jaw chuck
|
