| Stock-No. |
1020-20378 |
| Category |

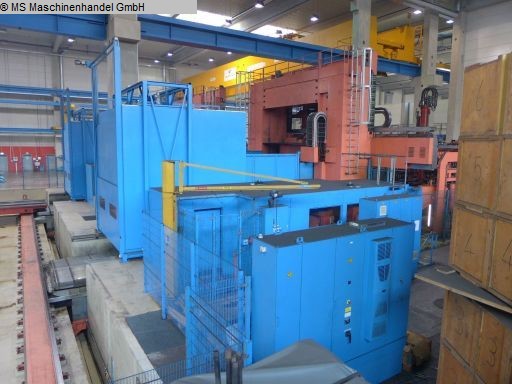

Planer-Type Milling M/C - Double Column |
| Make |
WALDRICH-COBURG |
| Type |
POWERTEC 4000 AP |
| New in |
1995/2011 |
| Control |
SIEMENS 840C |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
14000 mm |
| y-travel |
5000 mm |
| z-travel |
1500 mm |
| w-axis |
3000 mm |

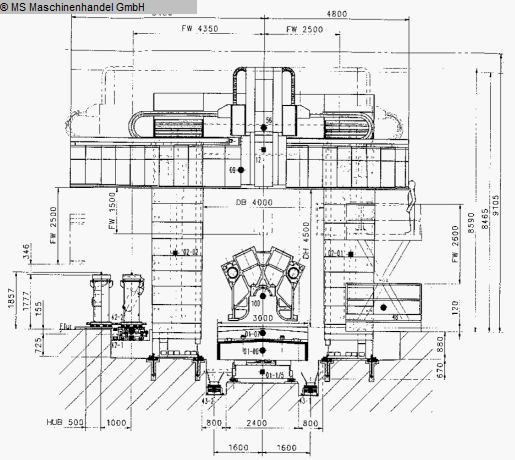

| column daylight |
4000 mm |
| column: max. dist. table - spindle nose |
4500 mm |
| workpiece weight |
100 t |
| table dimension - longitudinal |
9000 mm |
| table dimension - cross |
3000 mm |
| spindle taper ISO |
SK 50 |
| spindle turning speed range |
2-2500 U/min |
| spindle motor |
113 kW |
| spindle diameter |
200 mm |
| max. torque on the spindle |
9500 Nm |
| feed in x - axis |
1-10000 mm/min |
| feed in y - axis |
1-10000 mm/min |
| feed range Z-direction |
1-10000 mm/min |
| rapid traverse |
20000 mm/min |
| height over floor |
8600 mm |
| control |
SIEMENS 840C |
| total power requirement |
- kW |
| weight of the machine ca. |
360 t |
| dimensions of the machine ca. |
- m |
| Description |
ATTACHMENTS
angular milling head yes
autom. tool clamping yes
ball spindles yes
guideway covers yes
coolant unit yes
high pressure cooling syst. (through spindle) yes

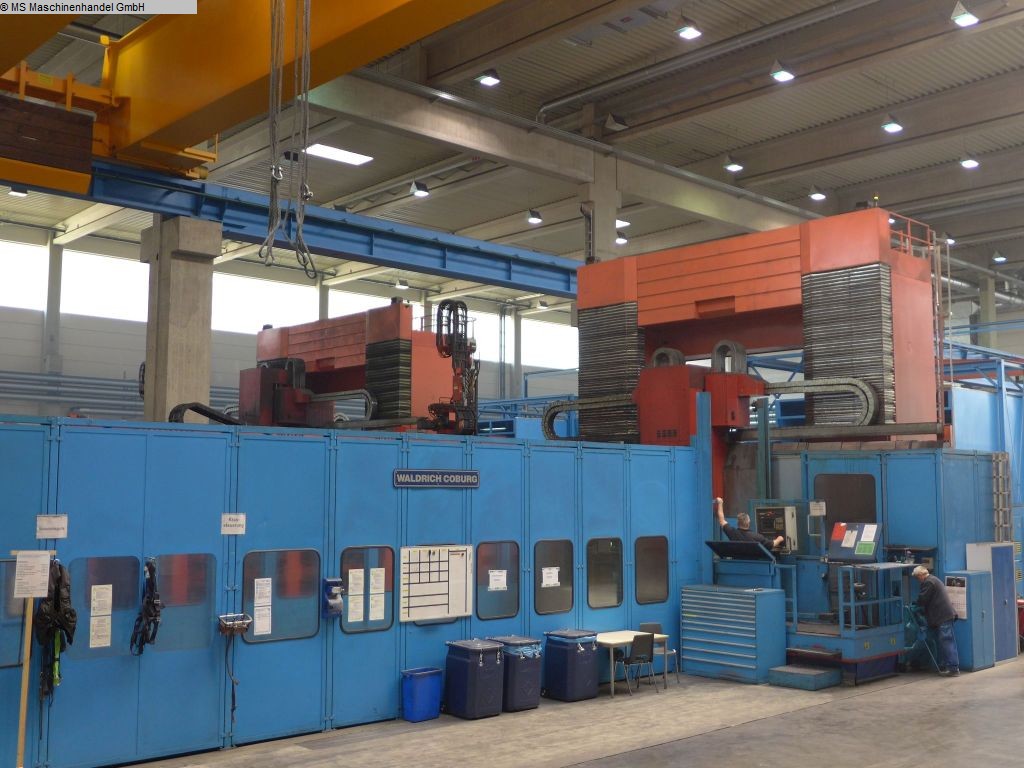

closed cabin yes
chip conveyor yes
TECHNICAL DESCRIPTION
PLANER TYPE MACHINING CENTER - EACH WITH 3 PALLETS 9000 x 3000 mm:

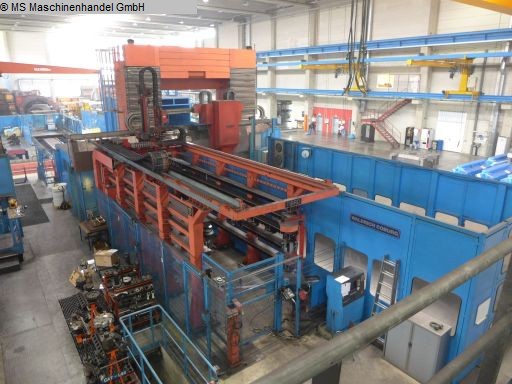

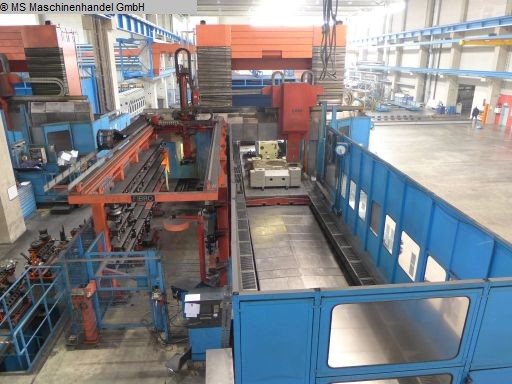

- Tool changer with 420 tools
- Head pick-up system
- Video monitoring via camera
- High pressure lubrication unit for inner cooling 70bar
AVAILABLE HEAD UNITS:
- Fixed angle head HS800C600 105 Kw 600 long
- Fixed angle head HSD350C850 50 Kw 850 long
- Fixed angle head HSD 40C880 12 Kw 880 long
- Fixed angle head HSD 190C1000 30 Kw 1000 long
- Vertical spindle unit VS800C 105 Kw 900 long
- Universal spindle unit USIO40C 20 Kw B-axis rotatable at 1° at a time
- Angle spindle unit SO800C905 - 22,5° fix
- Angle spindle unit HSE1200CS -25° fix
- Universal spindle unit (fork milling) USP475C 75 Kw 1/2° Hirth
--> 1.350 1/min , B-Achse 0,5 Grad Hirth
One additional drilling extension SE 350C plus 1 SE500C.
DESCRIPTION OF CONDITION

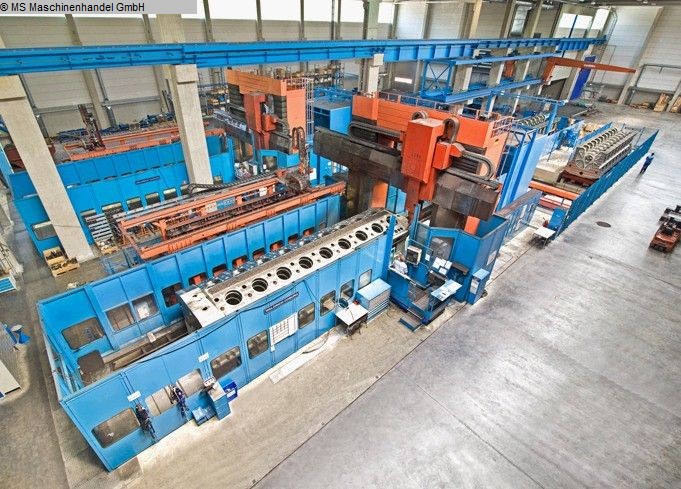

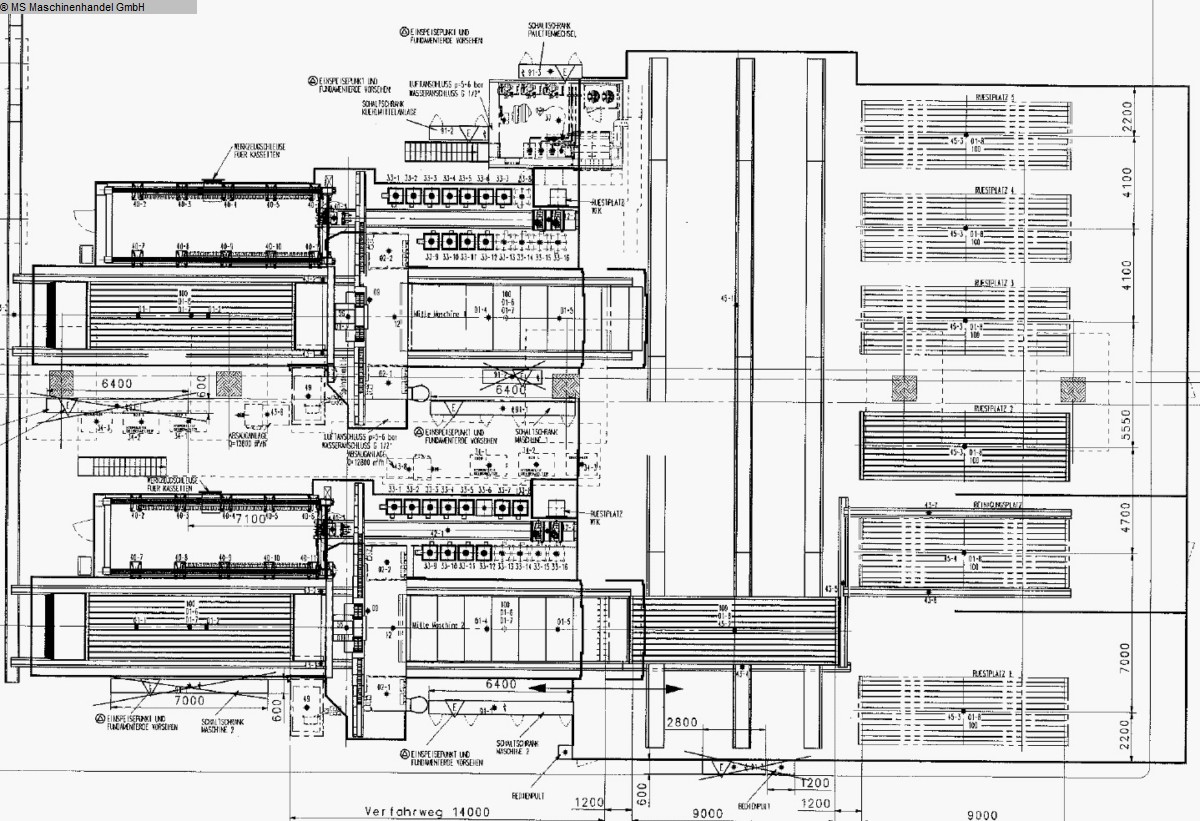

In 2011/2012 these 2 identical machines were retrofitted

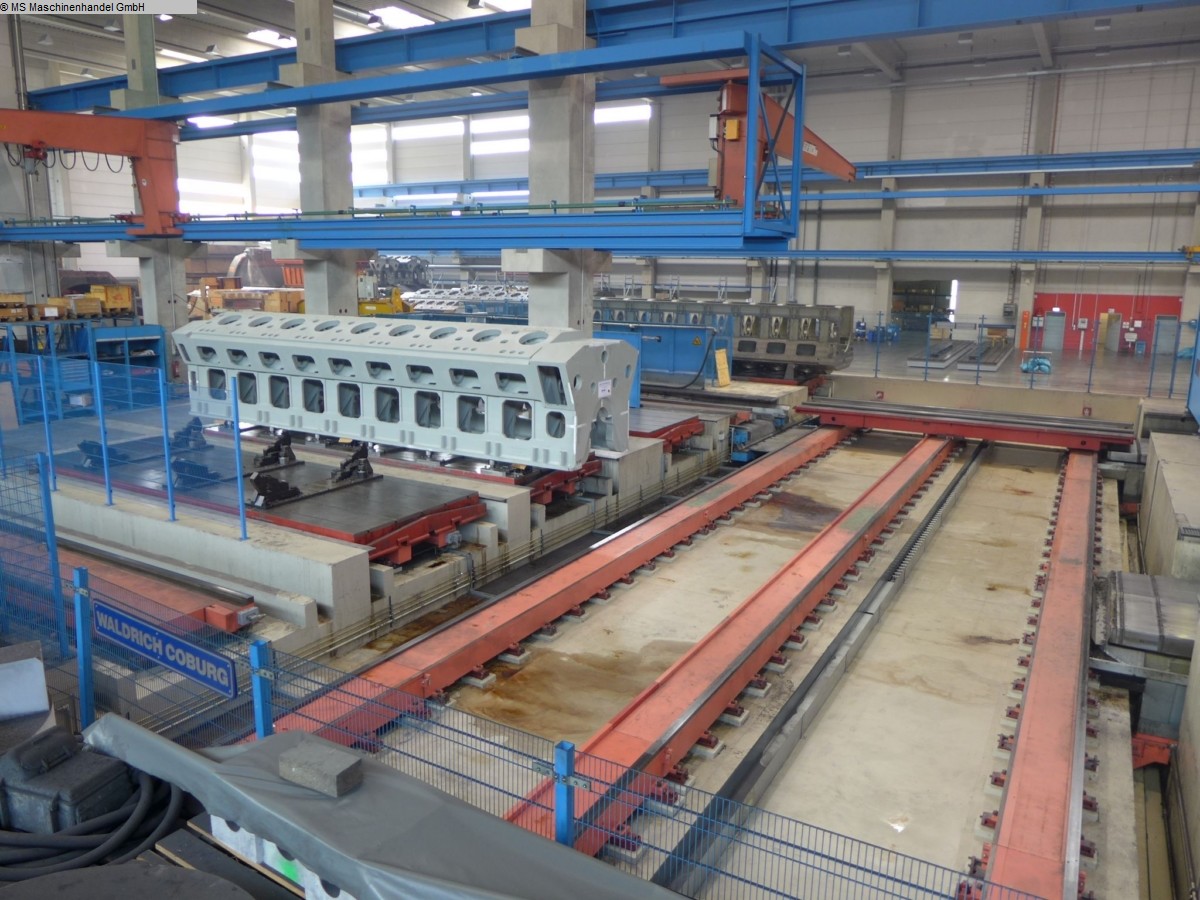

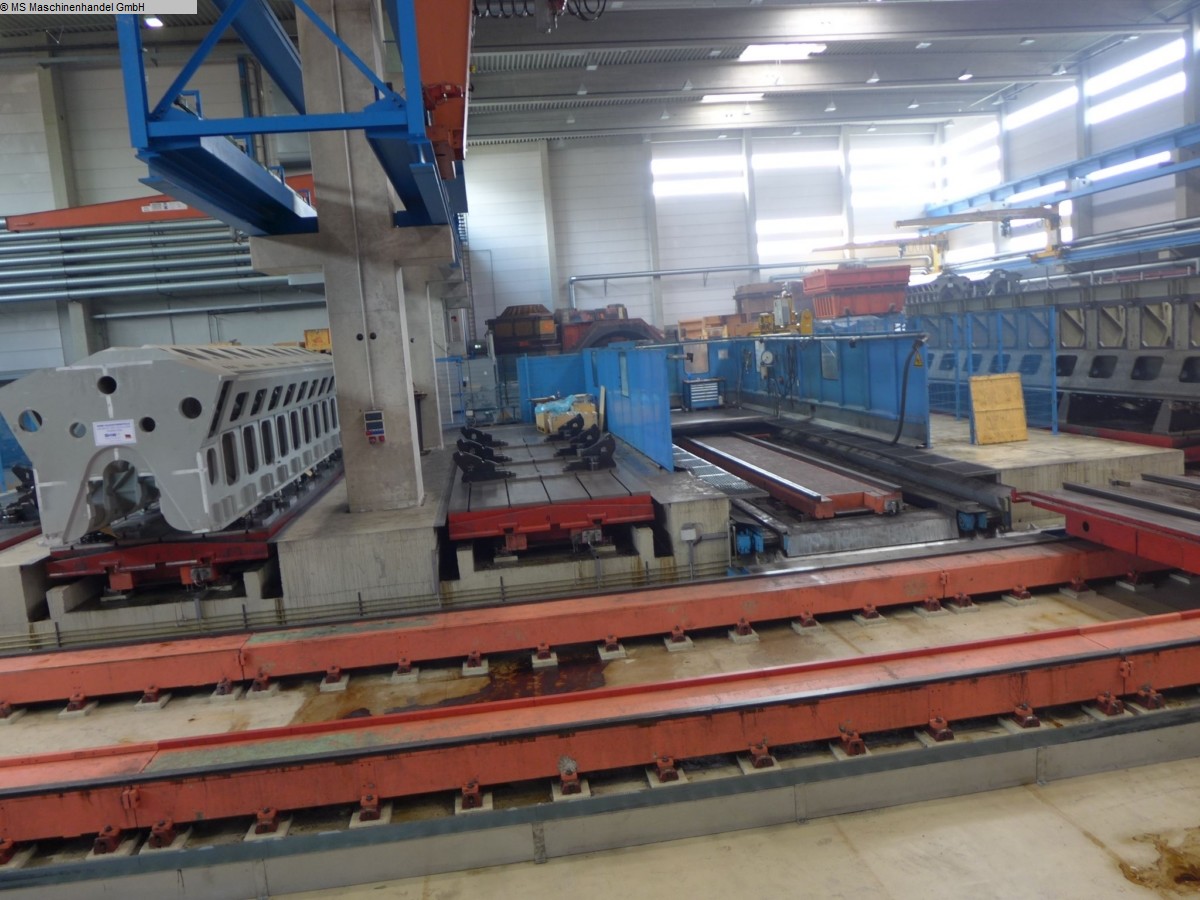

The milling length was extended to 14meters and an automatic changing system
for table pallets was installed.
Both machines can be seen under power by prior appointment.
|
