| Stock-No. |
1020-20171 |
| Category |
Gear Hobbing Machine - Vertical |
| Make |
KOHCHIYAMA TECH |
| Type |
SH-55 |
| New in |
2014 |
| Control |
FANUC 31i MODEL B |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Japan |
| Delivery time |
sofort |
| Freight basis |
Ex Site - factory |
| Price |
| max. wheel diameter |
5500 mm |
| gear width |
1500 mm |
| max. module |
32 |

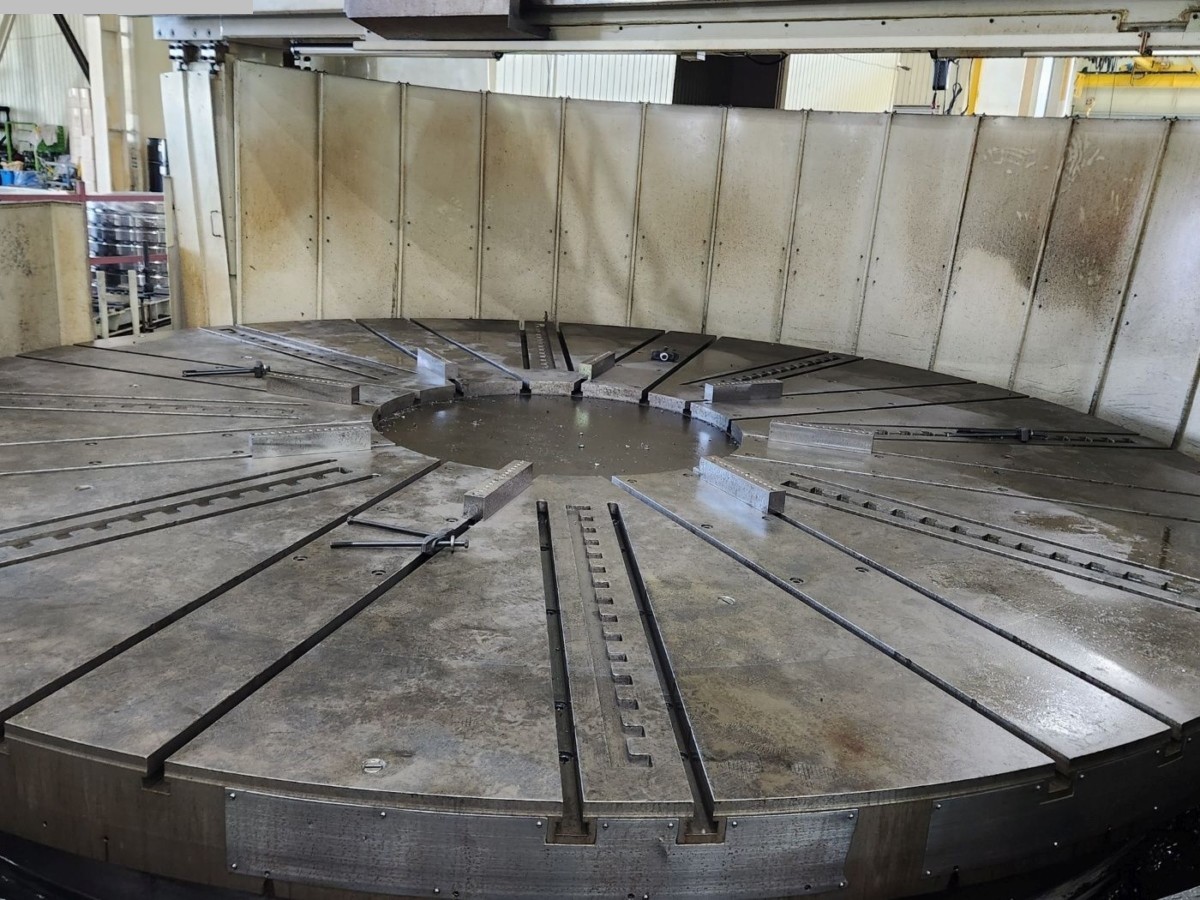

| faceplate diameter |
3740 mm |
| swing diameter |
6200 mm |
| turning height |
1200 mm |
| control |
FANUC 31i MODEL B |
| cross rail - adjustment |
3000 mm |
| turning speeds |
3-15 U/min |
| spindle turning speed - stepless |
15 - 1500 U/min |
| workpiece weight |
39,4 t |
| max. dia. of teeth cutting |
5500 mm |
| tooth width |
550 mm |
| module |
32 |
| cutter speeds |
10 -150 U/min |
| milling cutter dia. x width |
450 x 110 mm |
| milling head axial adjustable |
2060 mm |
| total power requirement |
- kW |
| weight of the machine ca. |
- t |
| dimensions of the machine ca. |
- m |
| Description |

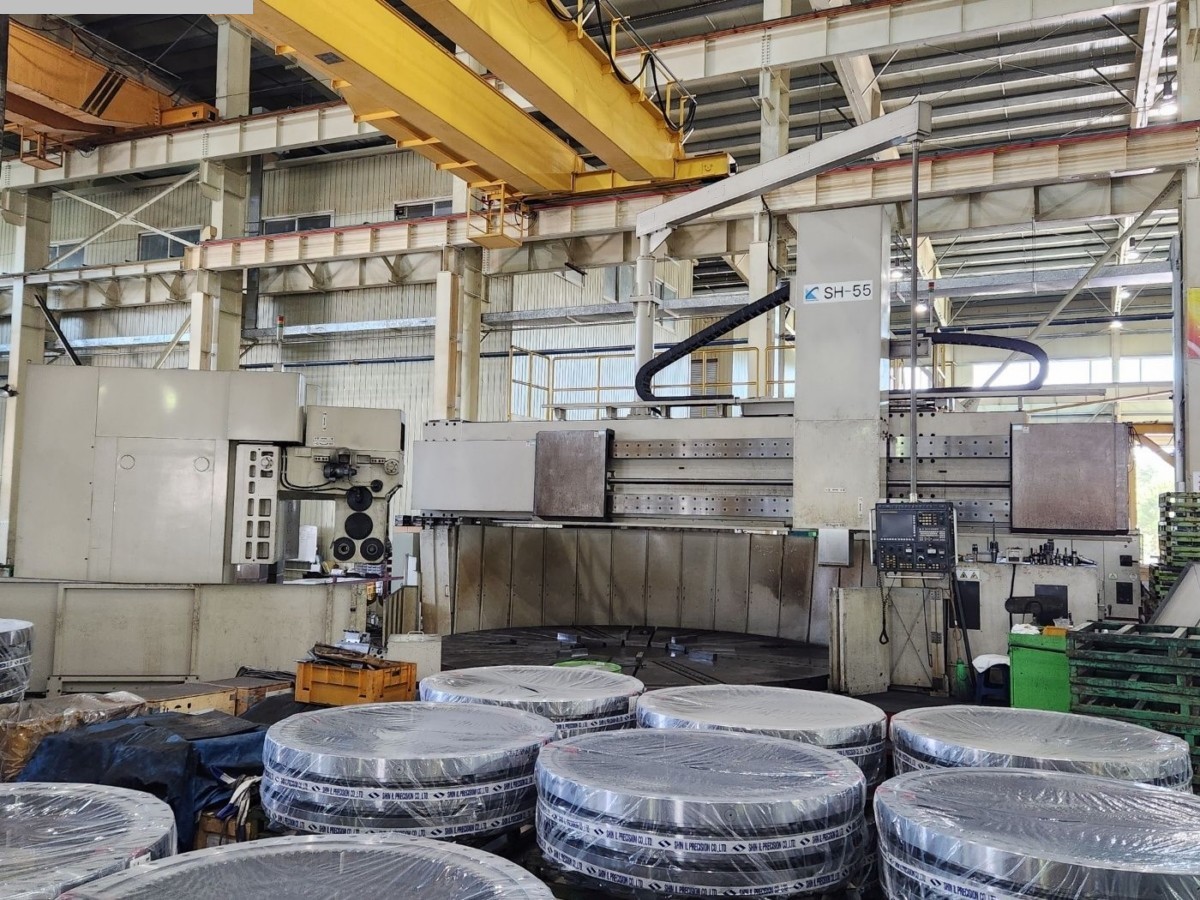

Complex TurnMill & Gear Cutting Machine
- CNC control FANUC 31i B
- Turning and Milling Function

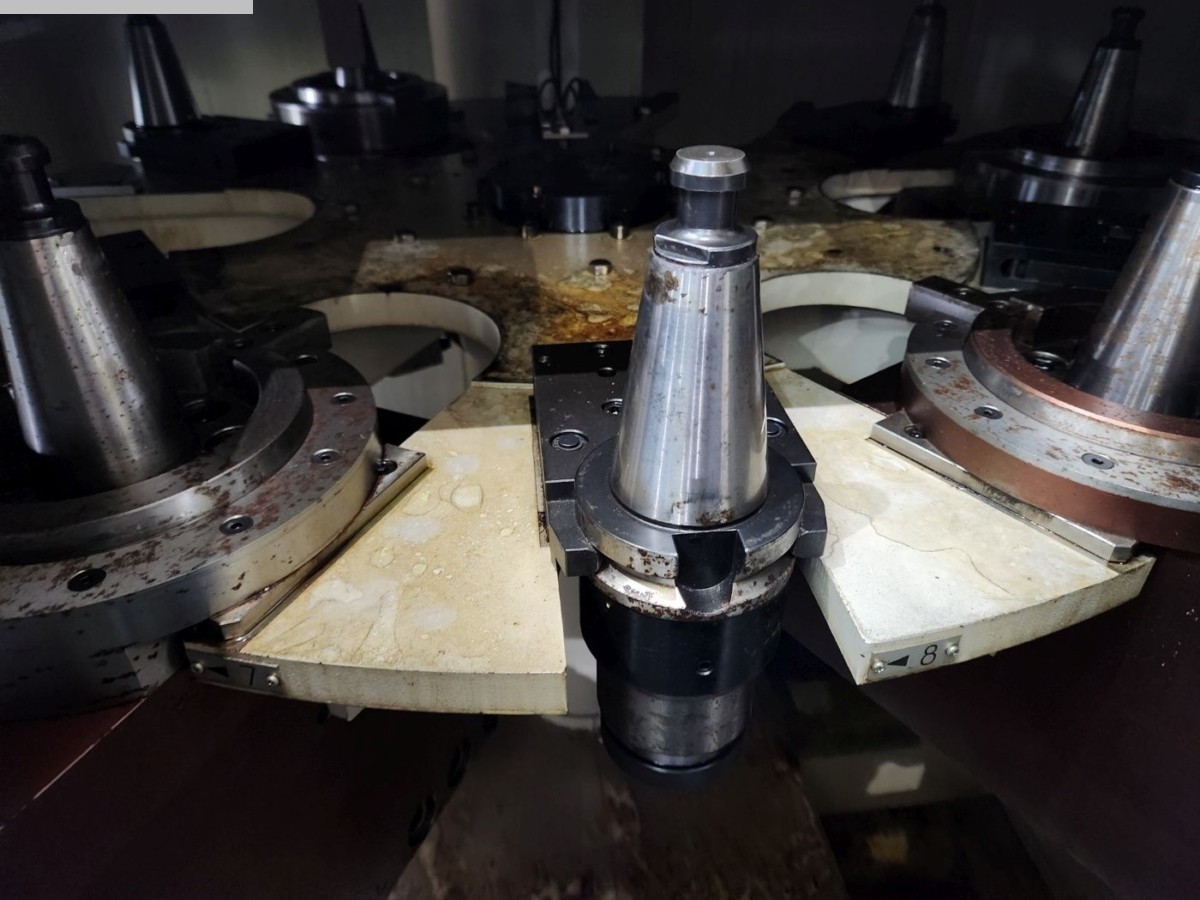

- ATC

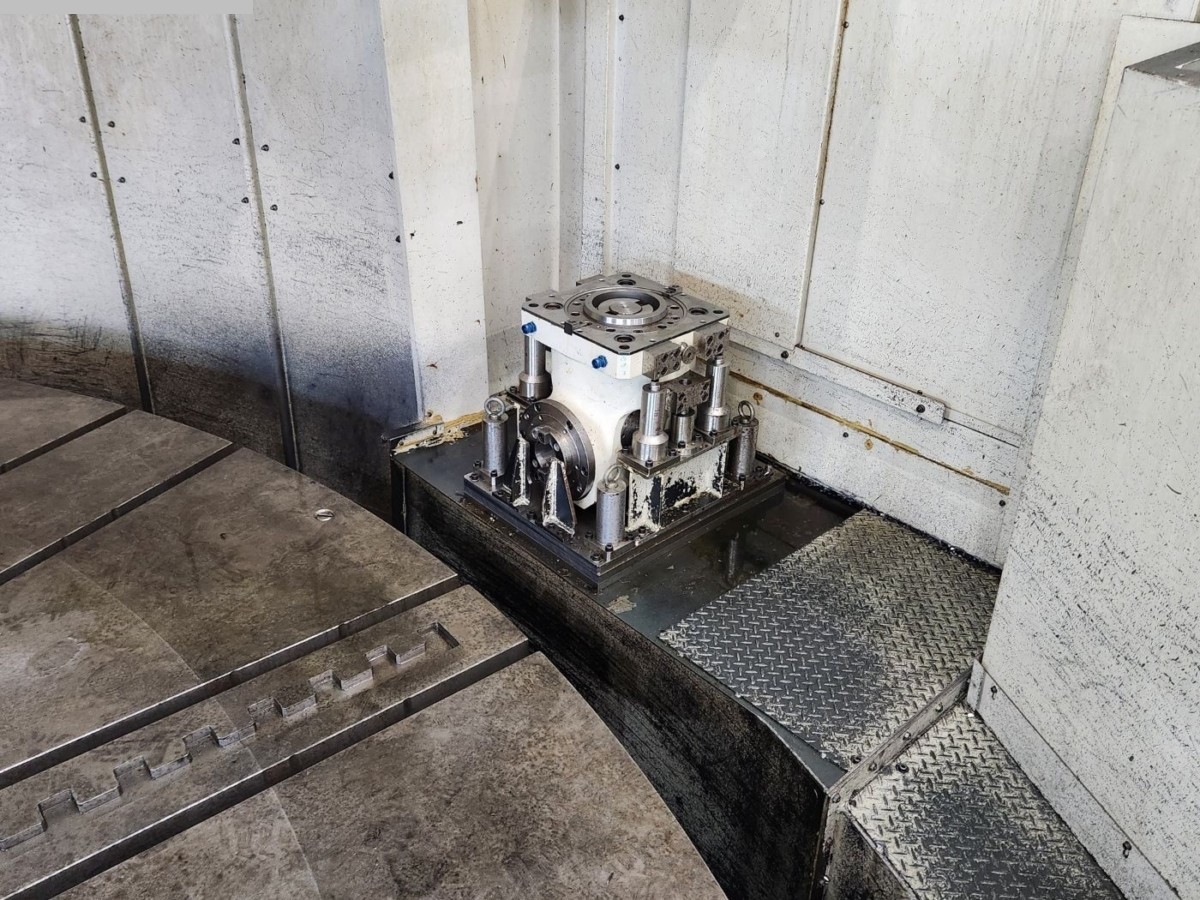

- Angular Milling Head
- Gear Hobbing (internal and external)
- Chip Conveyor
|
