| Stock-No. |
1020-18085 |
| Category |
Heavy Duty Lathe |
| Make |
NILES/Ploiesti |
| Type |
1600 x 10000 CNC |
| New in |
1989/2025 |
| Control |
FANUC 0i TF |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| turning diameter over bed |
2000 mm |
| turning diameter over slide rest |
1600 mm |
| turning length |
10000 mm |
| control |
FANUC 0i TF |
| workpiece weight |
17 t |
| steady |
4 |
| feed |
1 - 3000 mm/min |
| main drive |
60 kW |
| main spindle speeds: |
1,5 - 160 U/min |
| bed width |
1150 mm |
| faceplate |
1600 mm |
| tail stock |
|
| tailstock quill diameter |
260 mm |
| total power requirement |
- kW |
| weight of the machine ca. |
- t |
| Description |

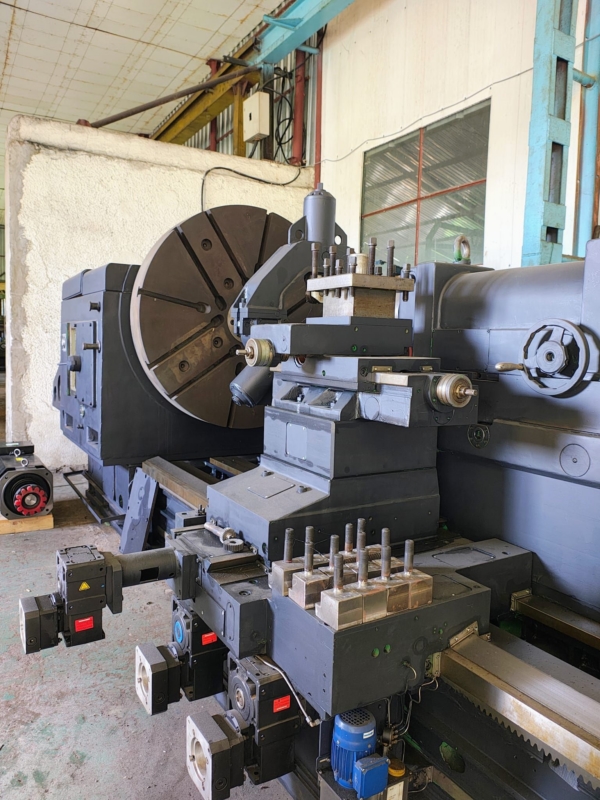

the machine is currently being overhauled and equipped with
- new electrics (Siemens, Schneider, cabinet)
- CNC control FANUC 0i TF

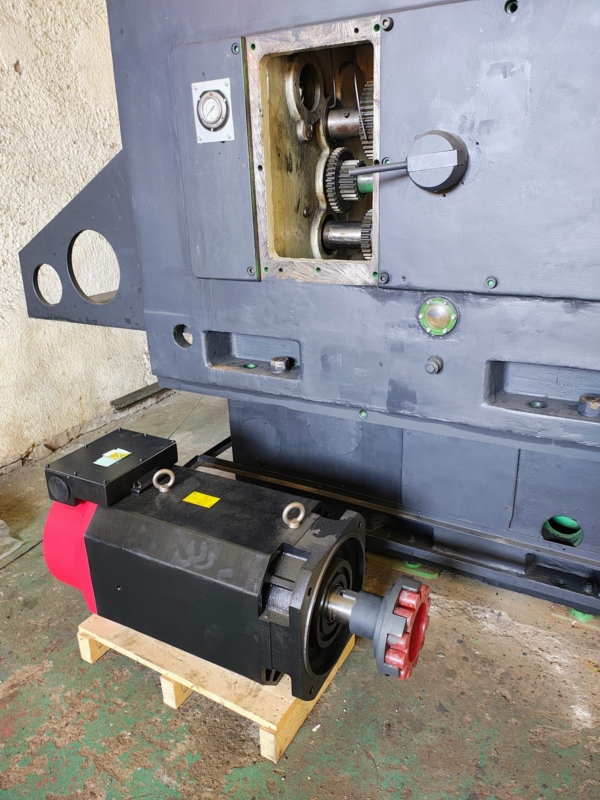

- new Fanuc motors
- new hydraulic parts

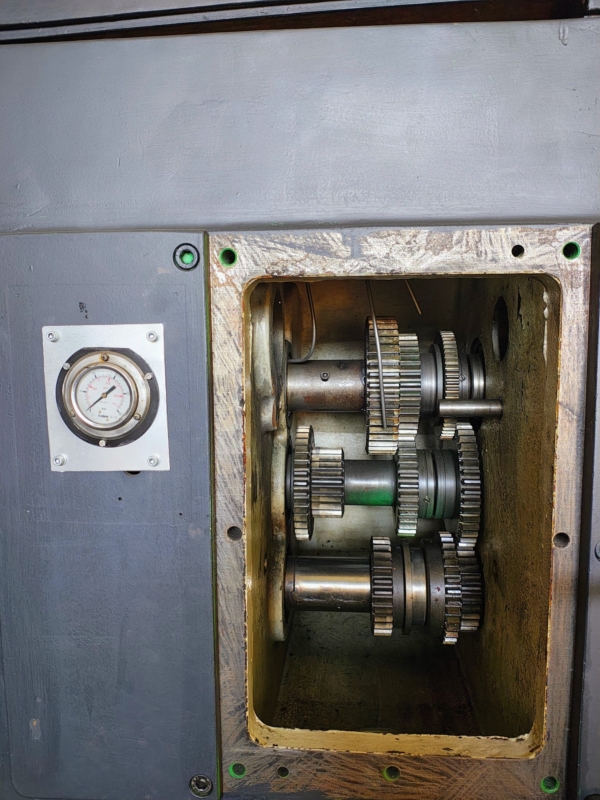

- complete mechanical overhaul
- Ball screw (B-axis)

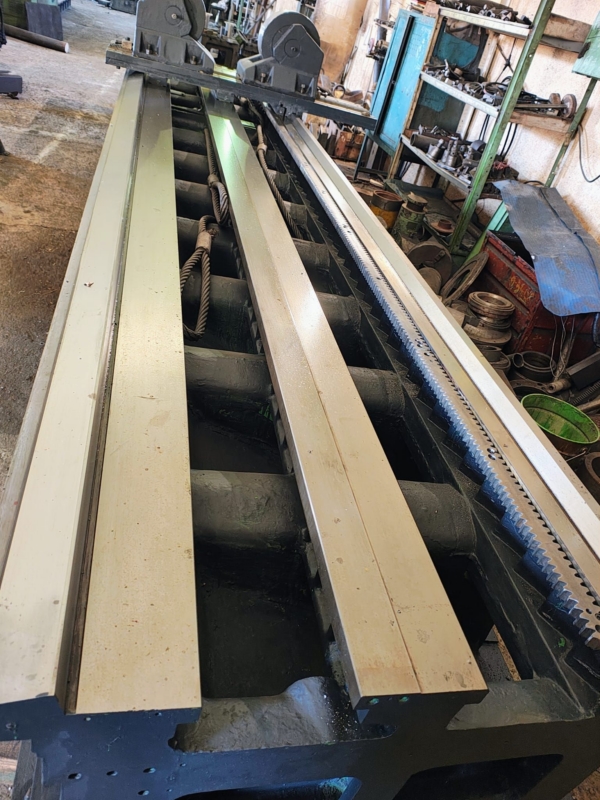

- bed overhaul
- three-track bed

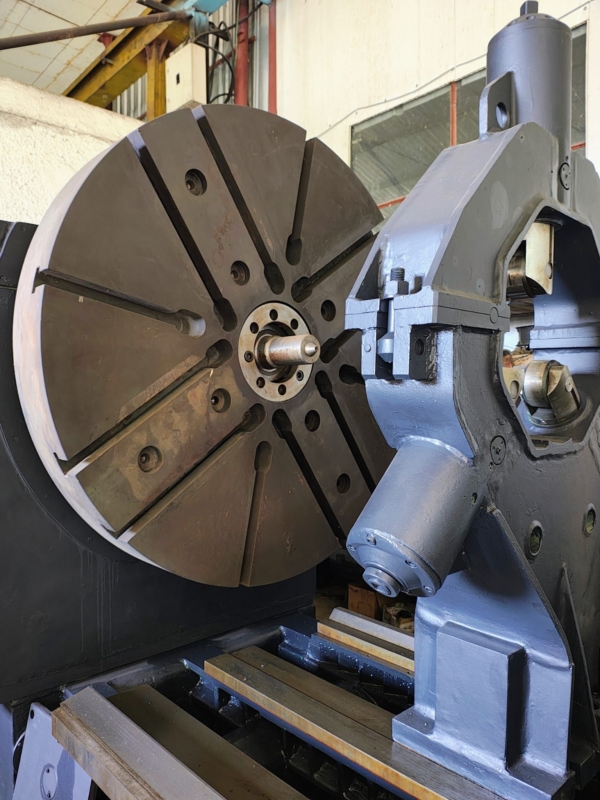

- Face plate with 4 jaws

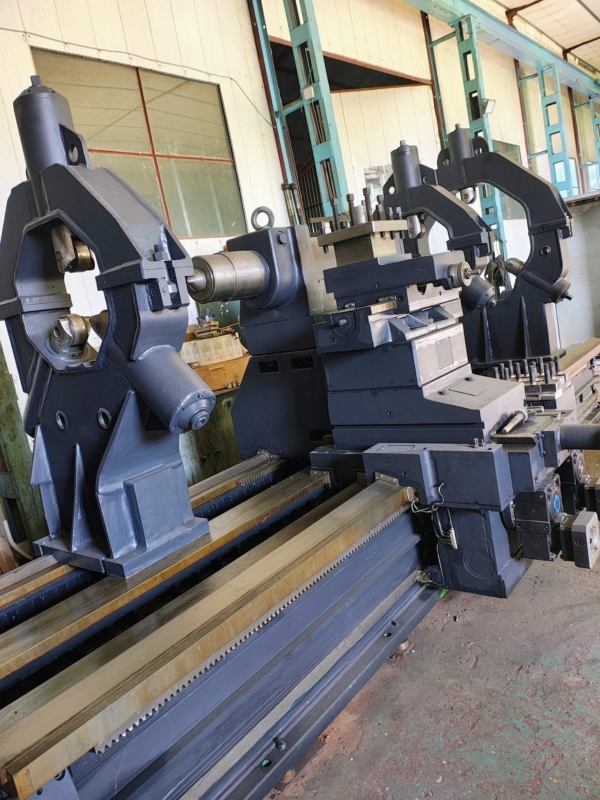

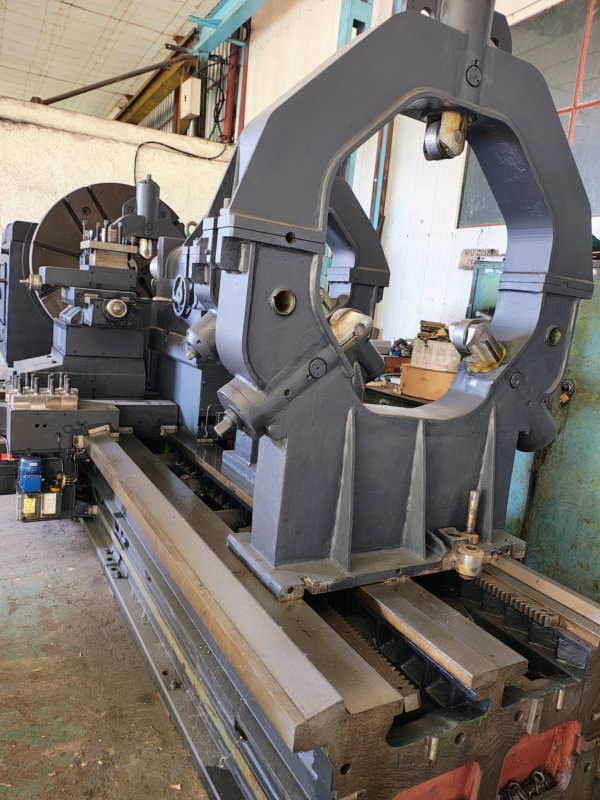

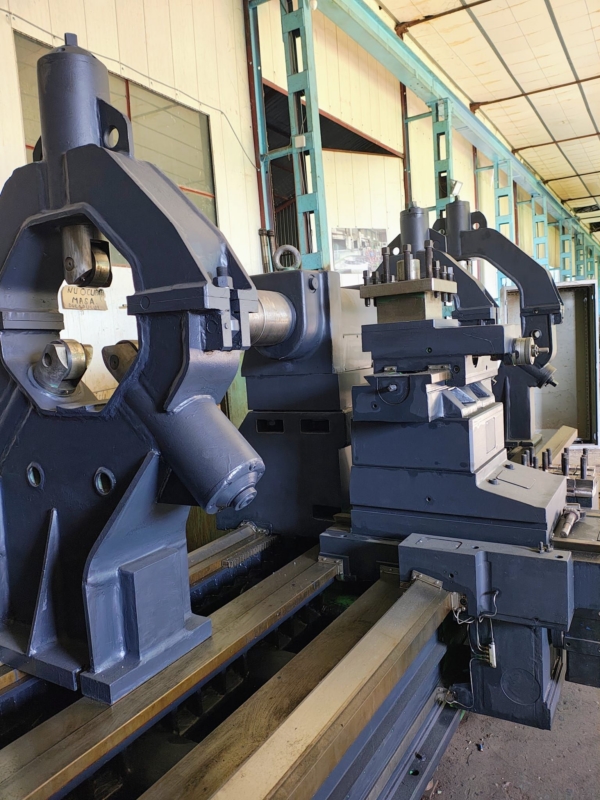

- 3 steady rests (2 of the steadies take 500 mm piece, and one of 700 mm)

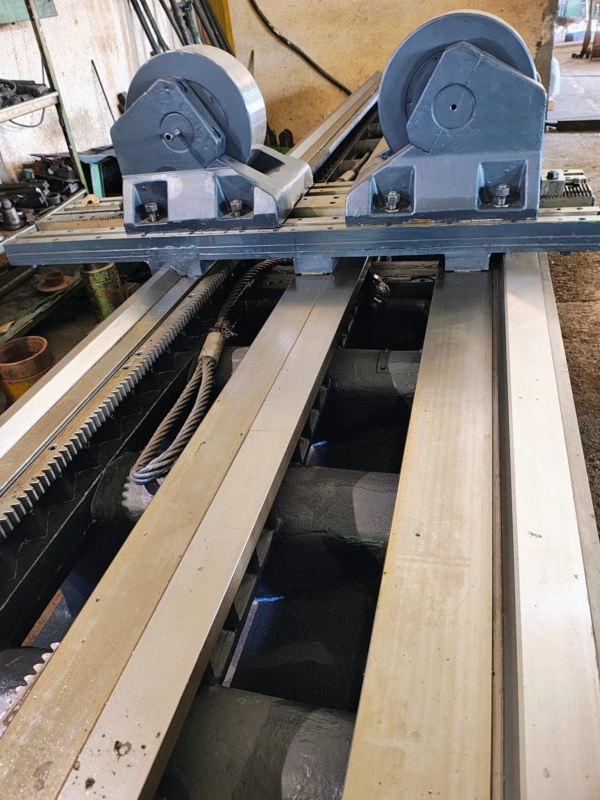

- a set of rolls, for the bigger pieces
- incl 1 year warranty from overhauler on electrical and hydraulic components
and 2 years on FANUC CNC
|
|
|
|
