| Stock-No. |
1020-19875 |
| Category |

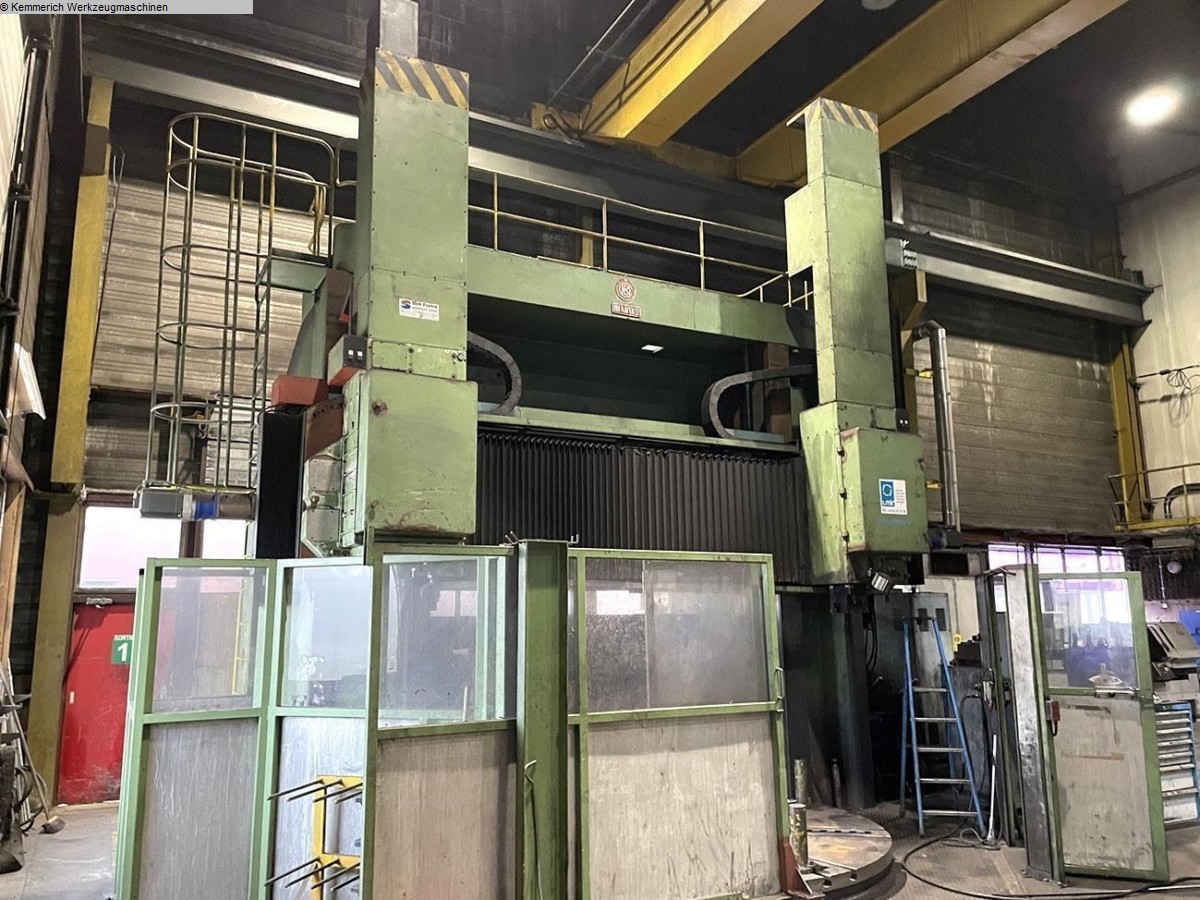

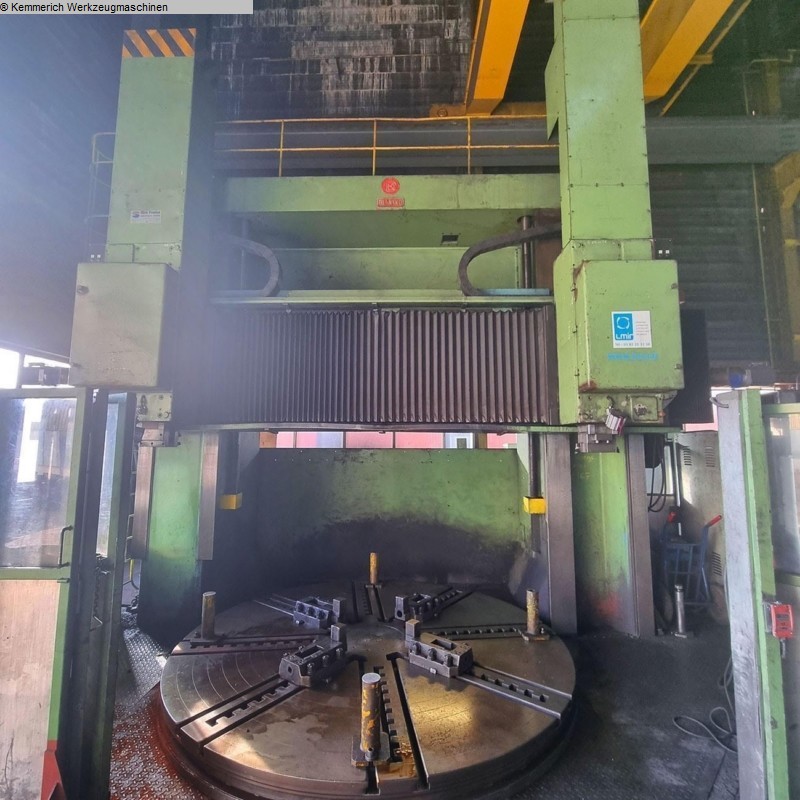

Vertical Turret Lathe - Double Column |
| Make |
CKD-BLANSKO |
| Type |
SKD 32 A CNC |
| New in |
1988/2017 |
| Control |
Siemens 840D |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Czech Republic |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| faceplate diameter |
3200 mm |
| swing diameter |
3500 mm |
| turning height |
2550 mm |
| workpiece weight |
50 t |
| faceplate speeds from - to |
0,8 - 80 U/min |

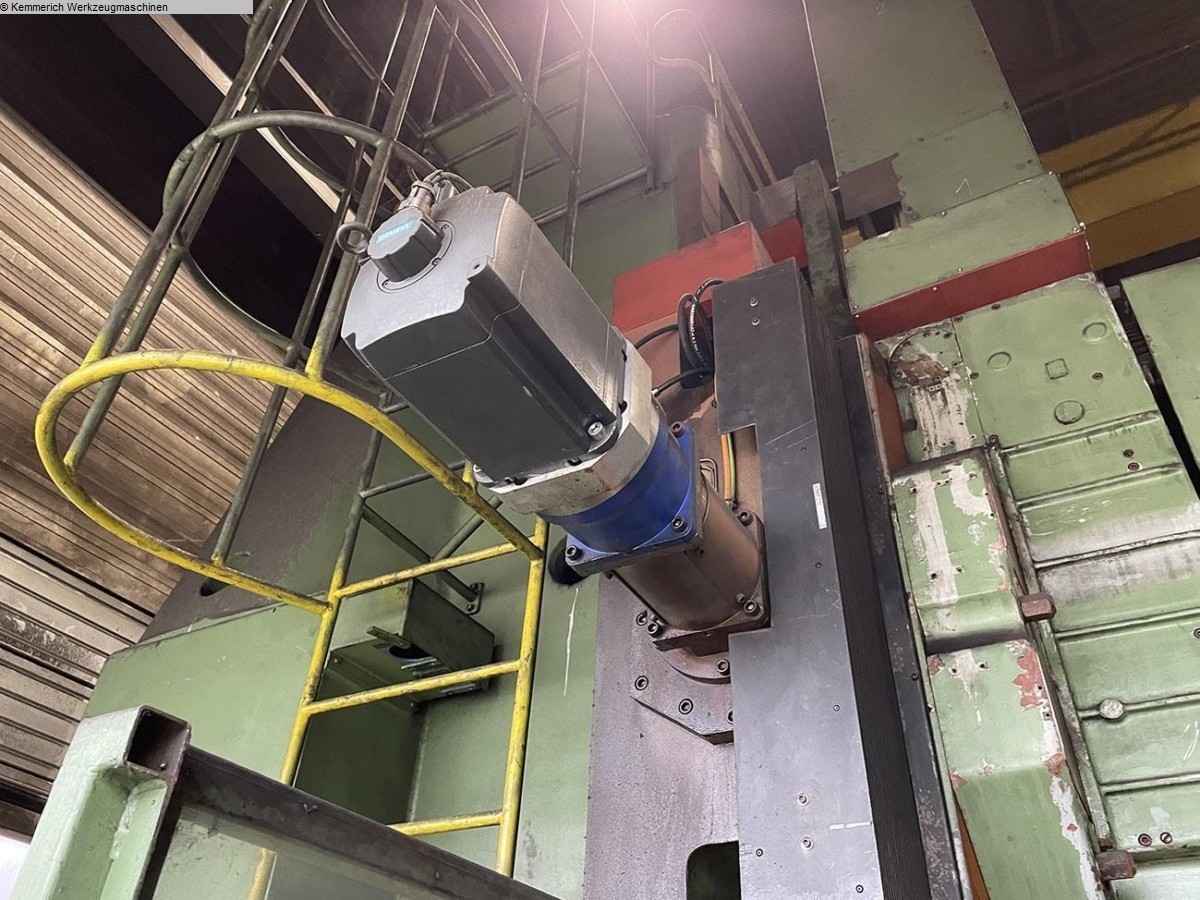

| main drive motor |
120 kW |
| cross rail adjustment |
2100 mm |
| Control |
Siemens 840D |
| total power requirement |
195 kVA |
| weight of the machine ca. |
65 t |
| dimensions of the machine ca. |
10 x 8,1 x 7,15 m |
| Description |
overhauled/modernized in 2017:

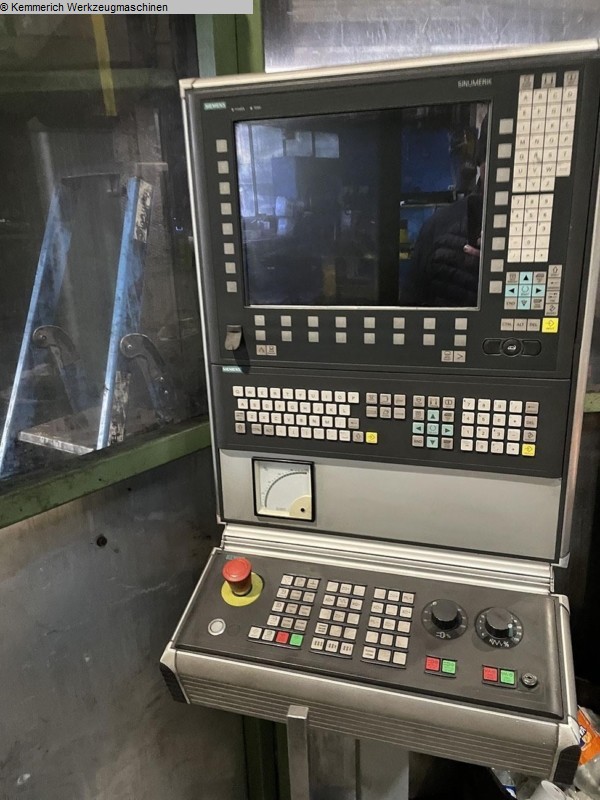

- CNC control Siemens Sinumerik 840 D,

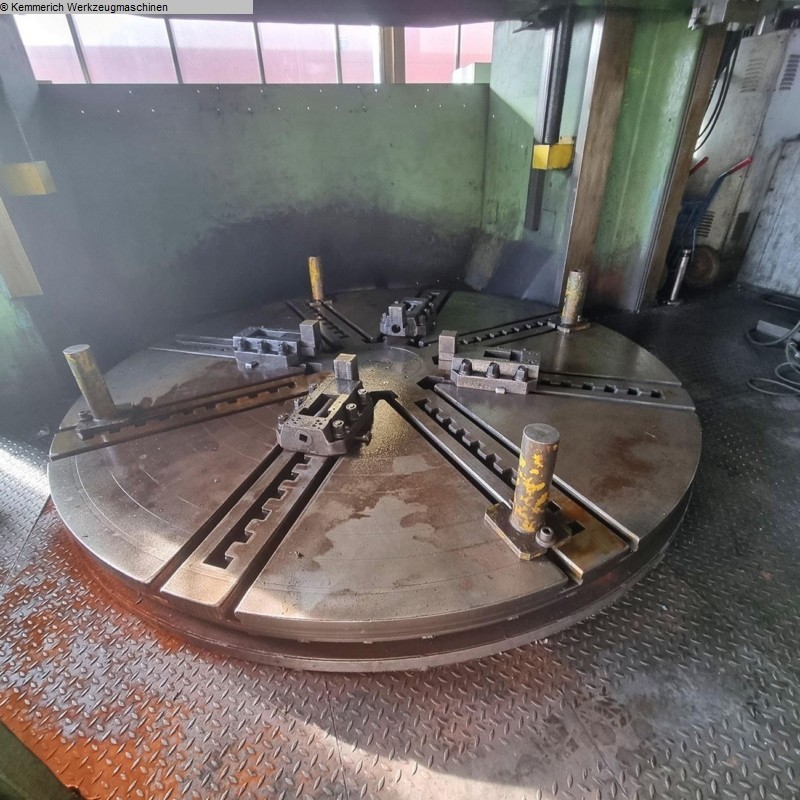

- 4-jaw faceplate,

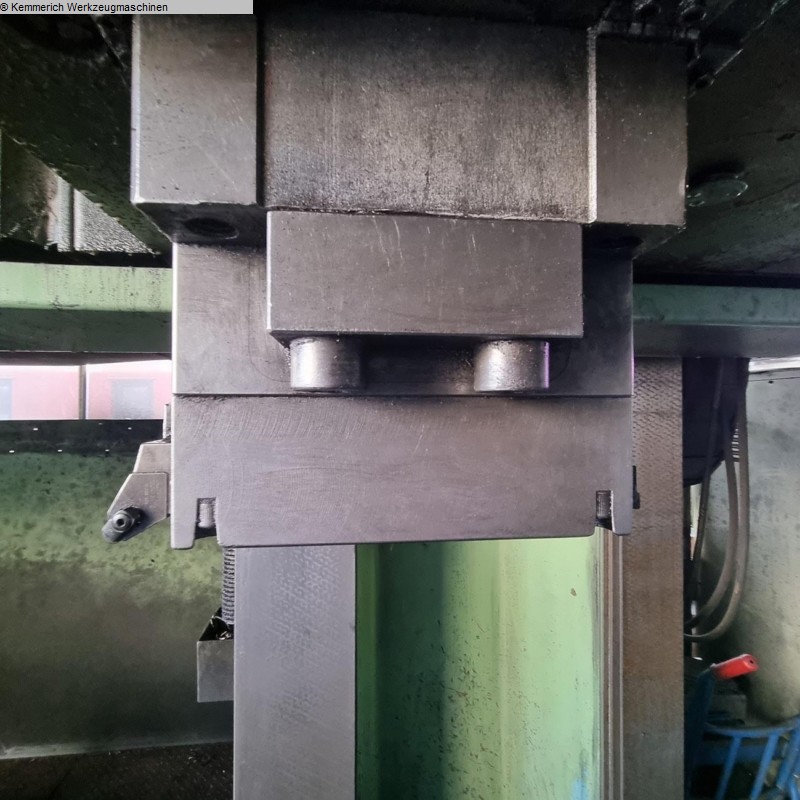

- 2 ram supports on the cross beam
-- horizontal movement of tool head no. 1: 1400 mm
-- vertical movement of tool head no. 1: 1500 mm
-- horizontal movement of the tool head No. 2: 1980 mm
-- vertical movement of the tool head No. 2: 1350 mm
-- Swivel angle of the tool head: -/+ 30°.
- Hydrostatic table
|
|
|
|
